X Autohaux 1" Front Leveling Lift Kit Suspension Spring Strut Spacer Lift Spacers For Chevrolet Silverado 1500 For GMC 1500

Color: Black

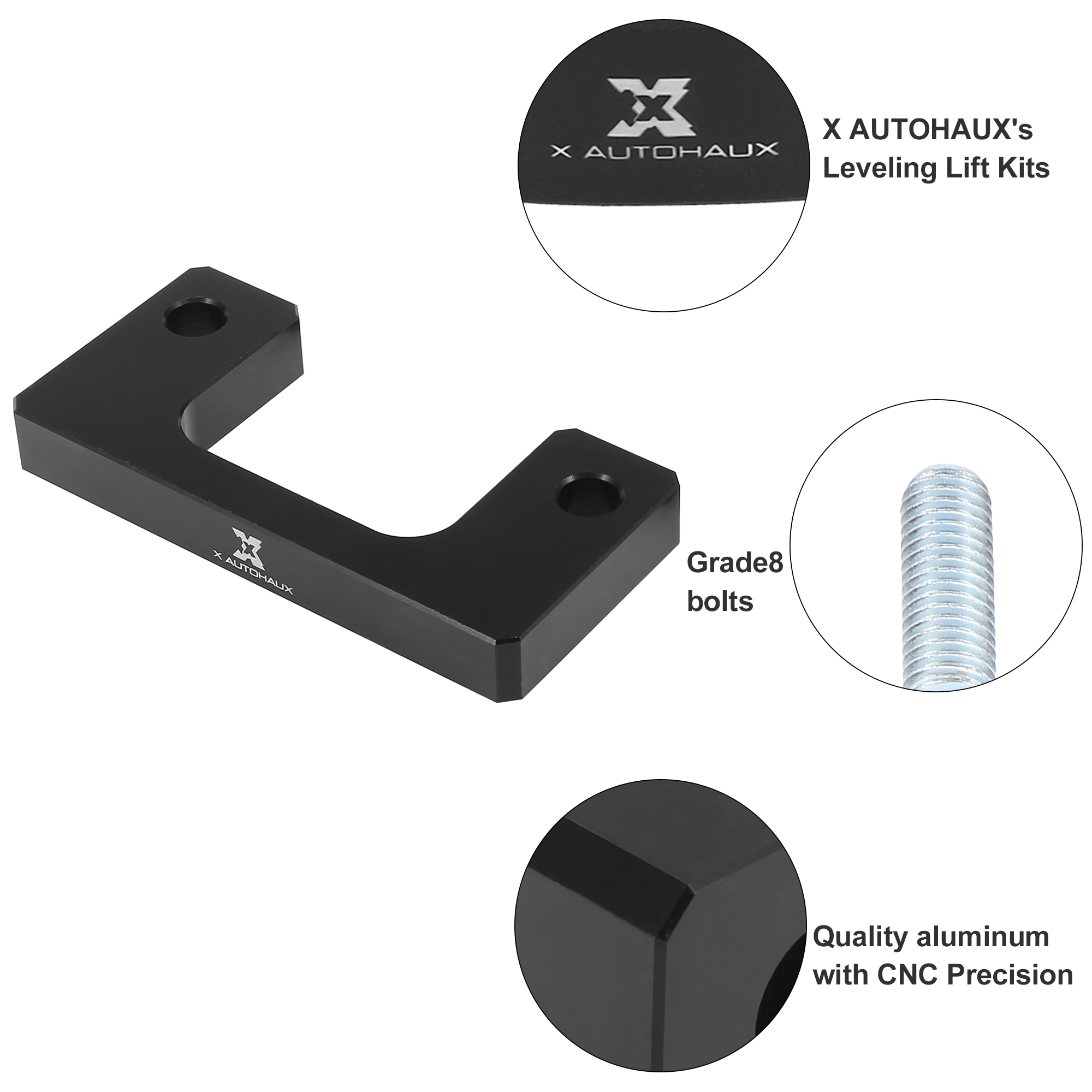

Material: Billet Aluminum

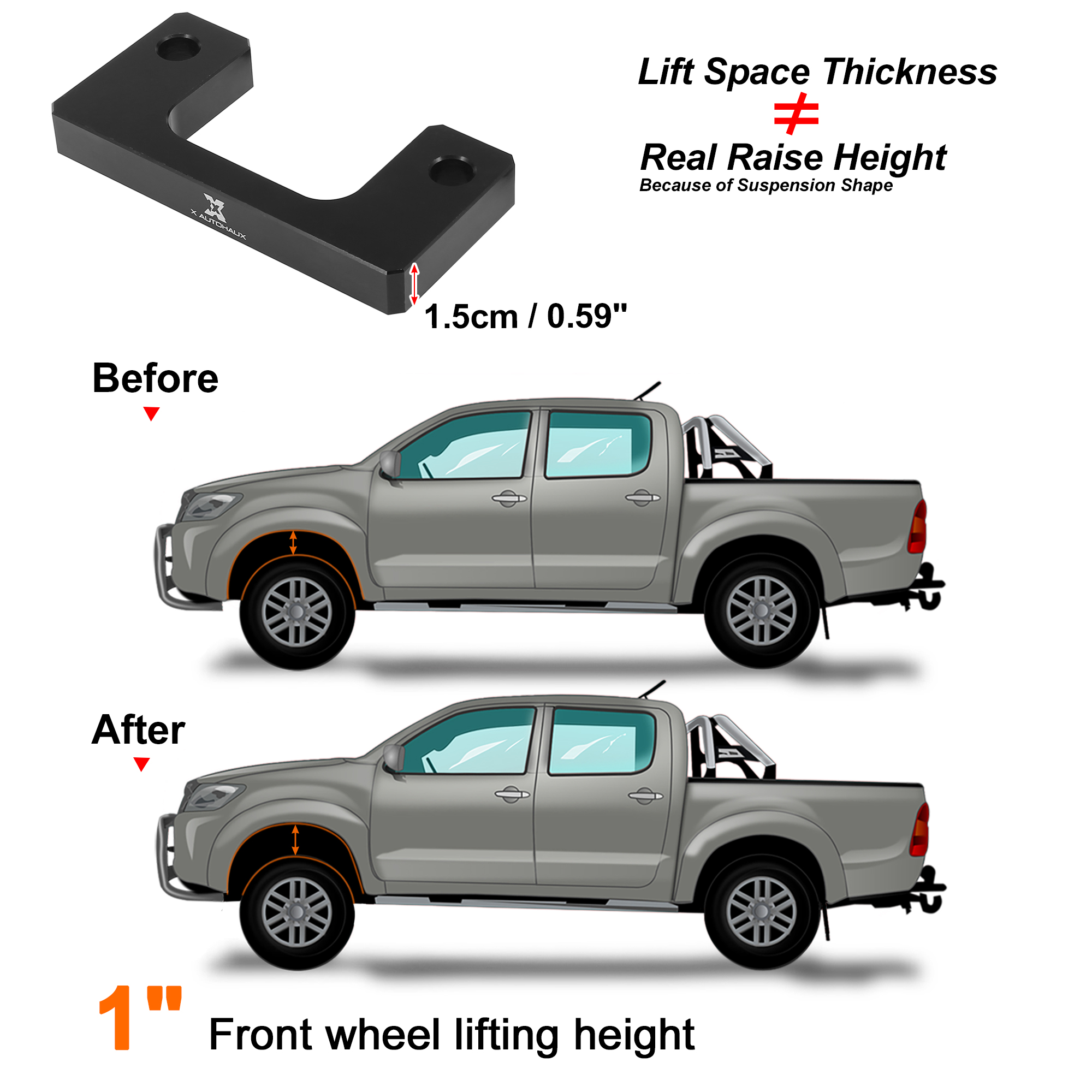

Lifting height and installation position: 1 inch Front

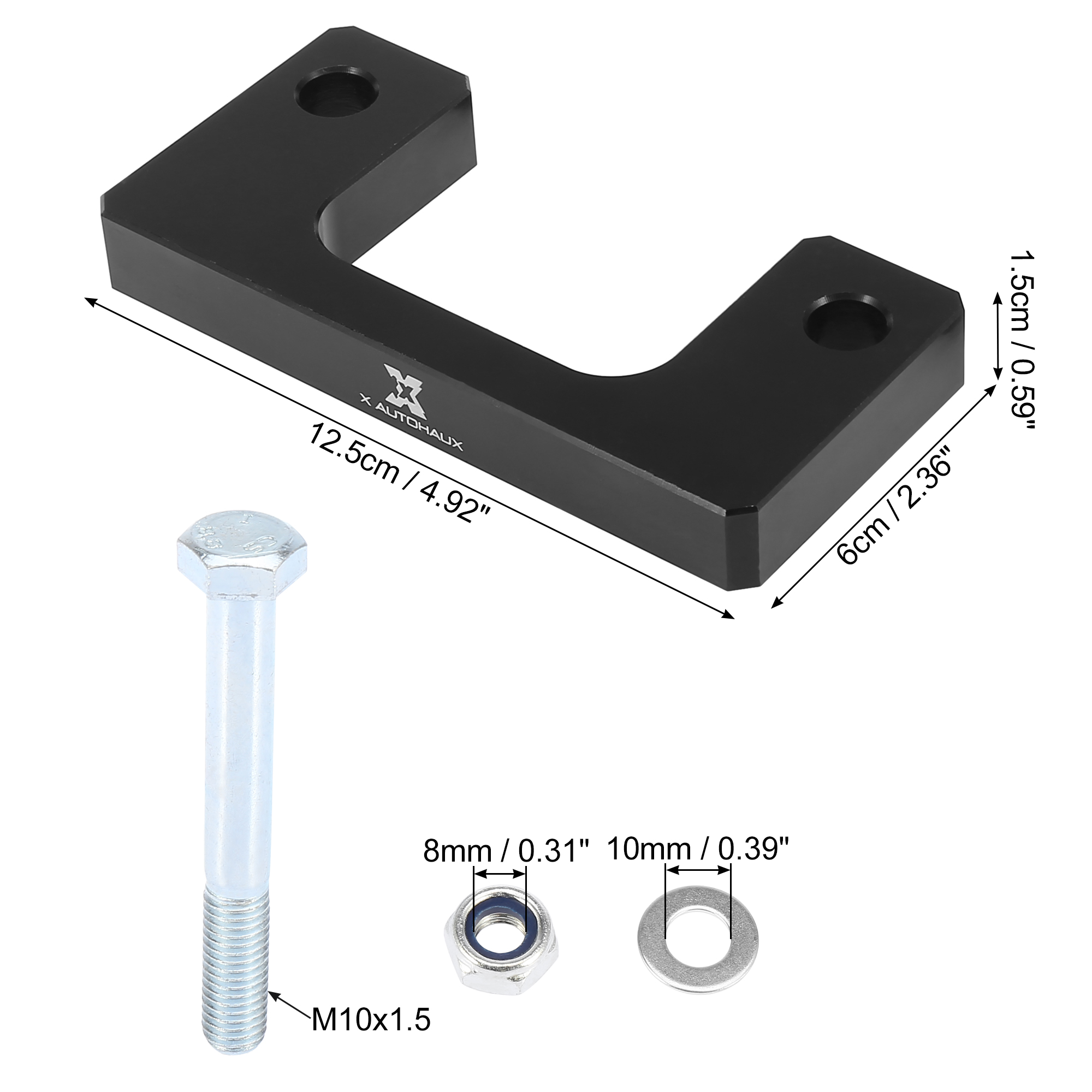

Dimension: 12.5x6x1.5cm/ 4.92"x2.36"x0.59"(L*W*H)

Screw Thread Size: M10x1.5

Nut Size: 8mm/ 0.31"(ID)

Gasket Size: 10mm/ 0.39"(ID)

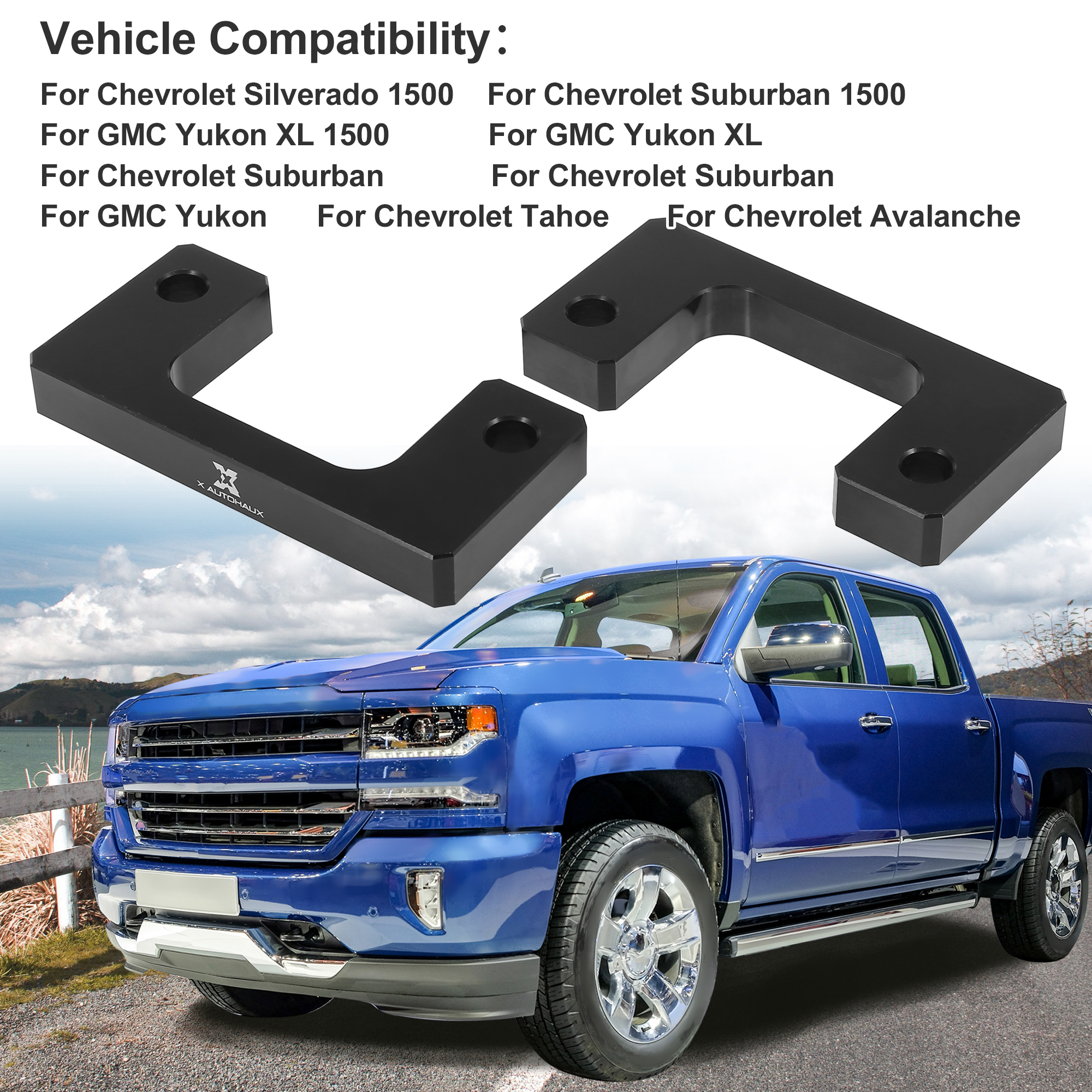

for Chevrolet Silverado 1500 2007-2019

for GMC Yukon 2007-2019

for GMC Yukon XL 1500 2007-2014

for GMC Yukon XL 2015-2018

for Chevrolet Tahoe 2007-2019

for Chevrolet Avalanche 2007-2013

for Chevrolet Suburban 2014-2016

for Chevrolet Suburban 2018-2019

for Chevrolet Suburban 1500 2007-2014

Step1: Always block off your tires and make sure your vehicle is in park with your emergency brake on.

 Step2: Use a hydraulic jack (jacks from spare tire kits won't be sufficient) and jack stands to lift your front two wheels off the ground. Refer to your owner's manual for the correct jacking points to safely lift the vehicle.

 Step3: Remove your tires and raise your suspension with a floor jack on the axle so that the spring is compressed slightly.

 Step4: Remove the spring retaining clip ,shocks and sway bar link.

 Step 5: Install the leveling kit on top of the front strut. Make Sure the bolts are tightened.

This is non-OEM product.

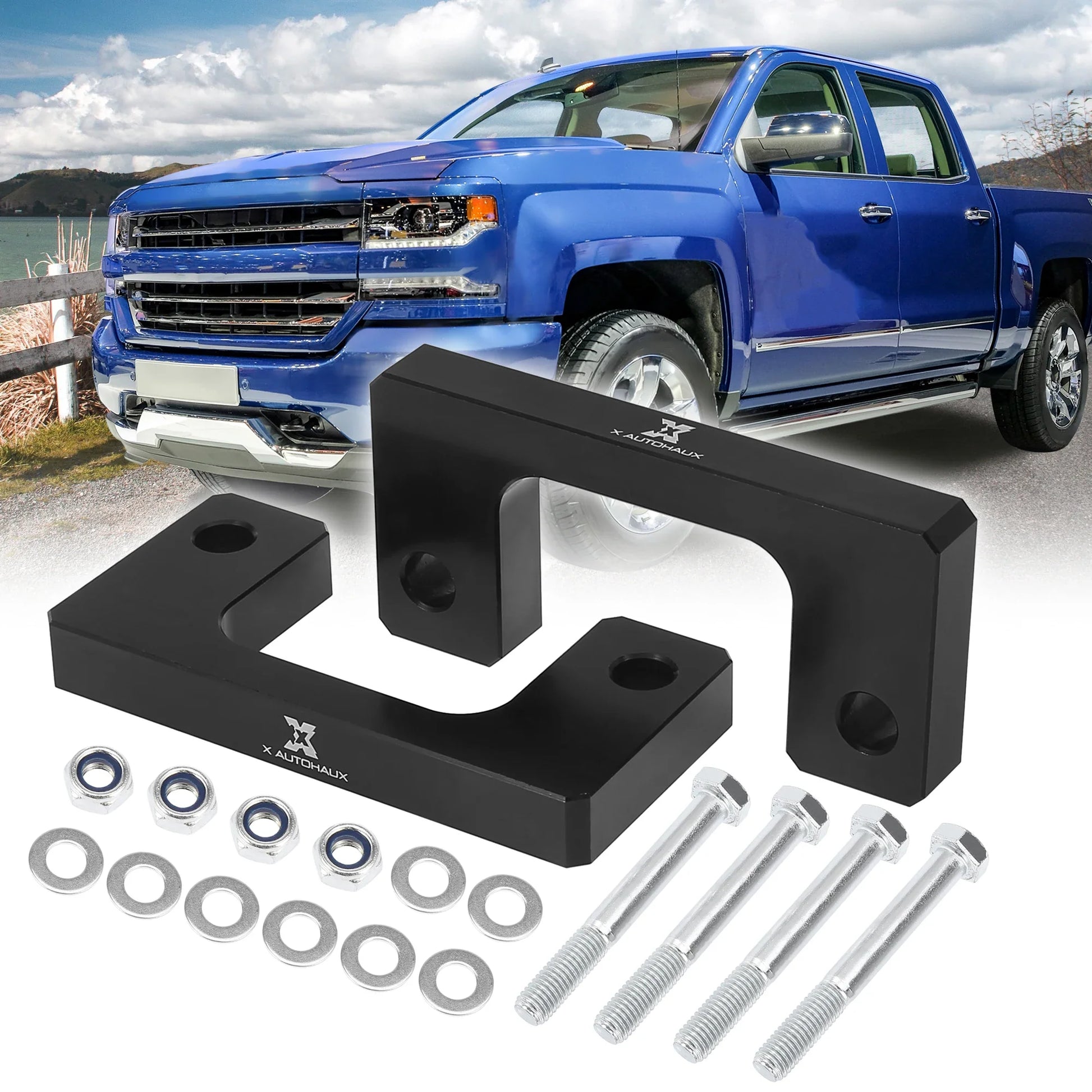

2 x 1 inch Front Leveling Spacers

Installation Hardware
