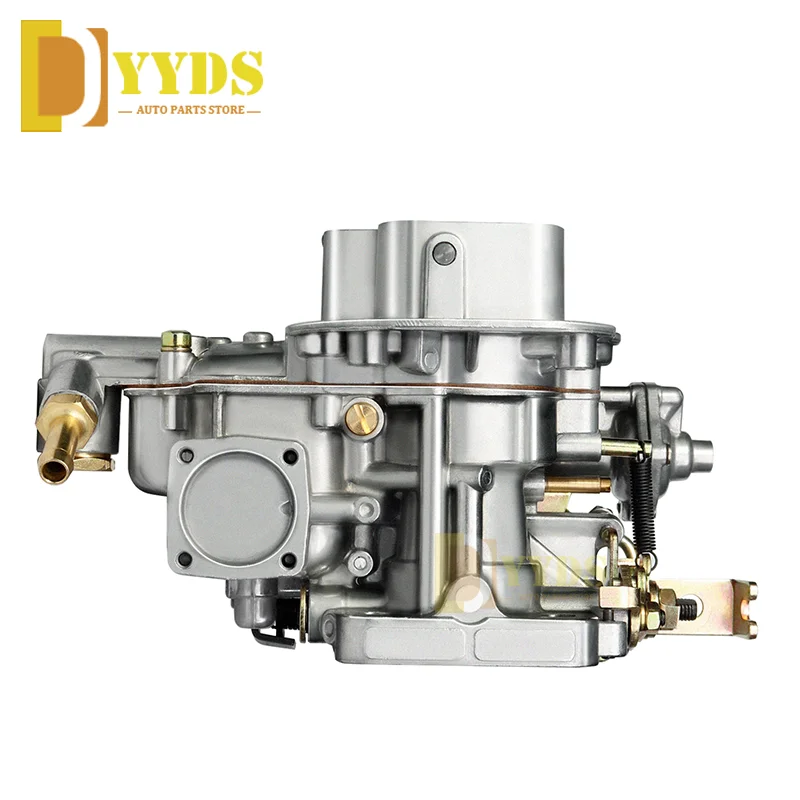

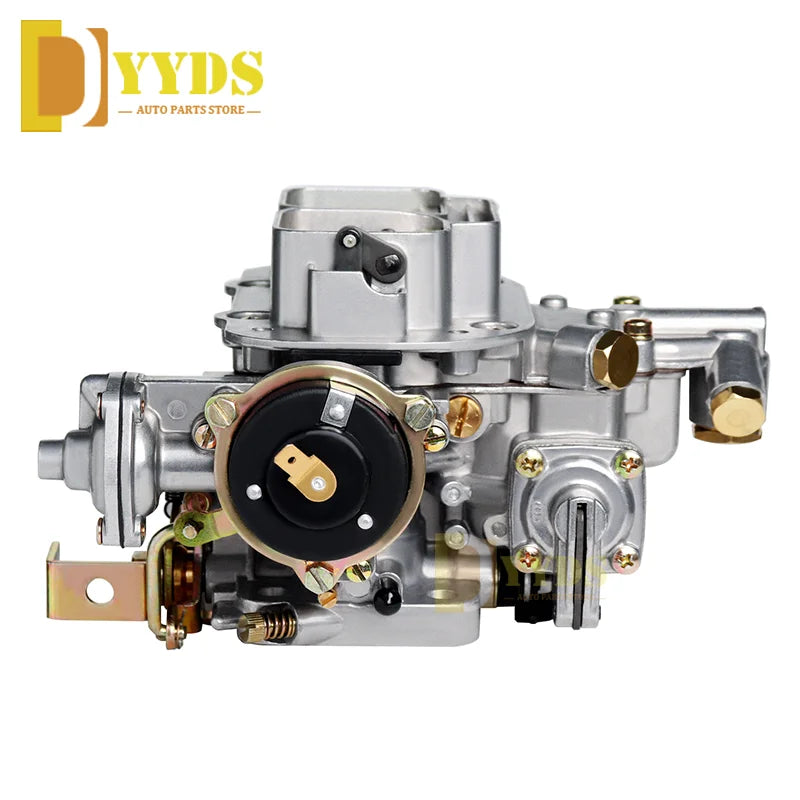

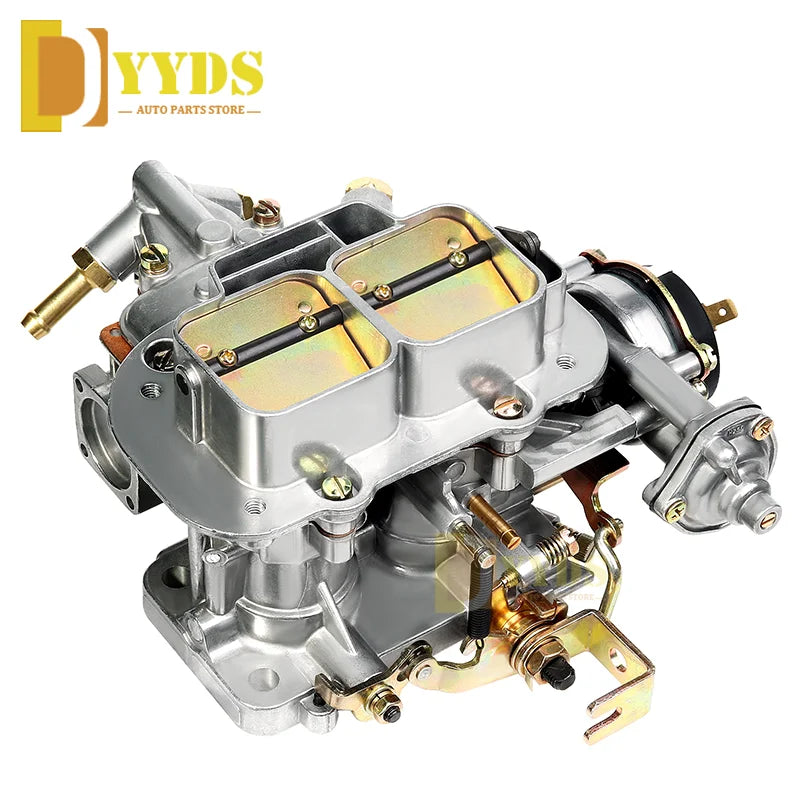

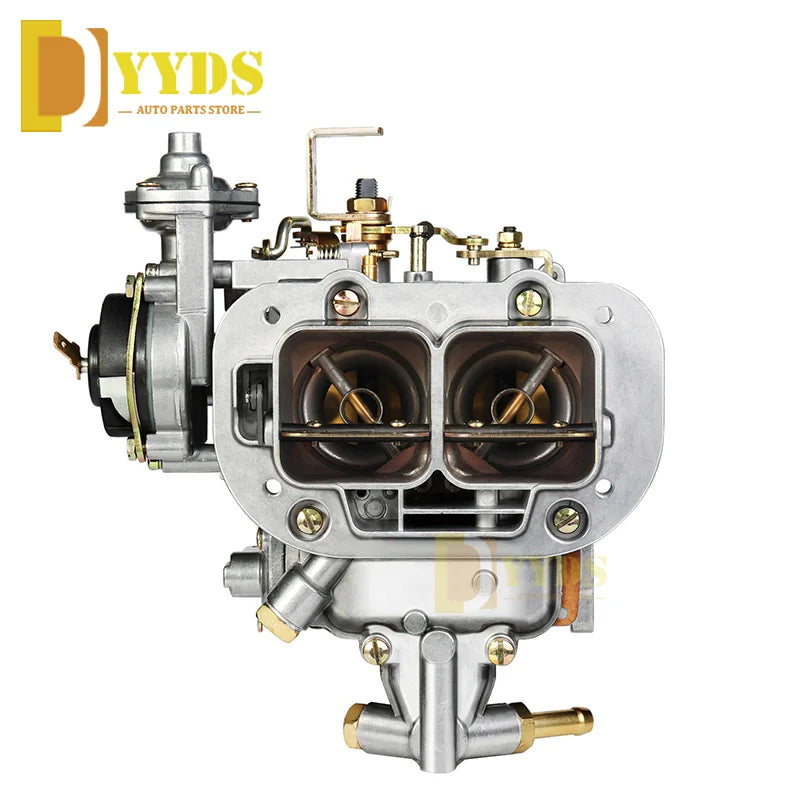

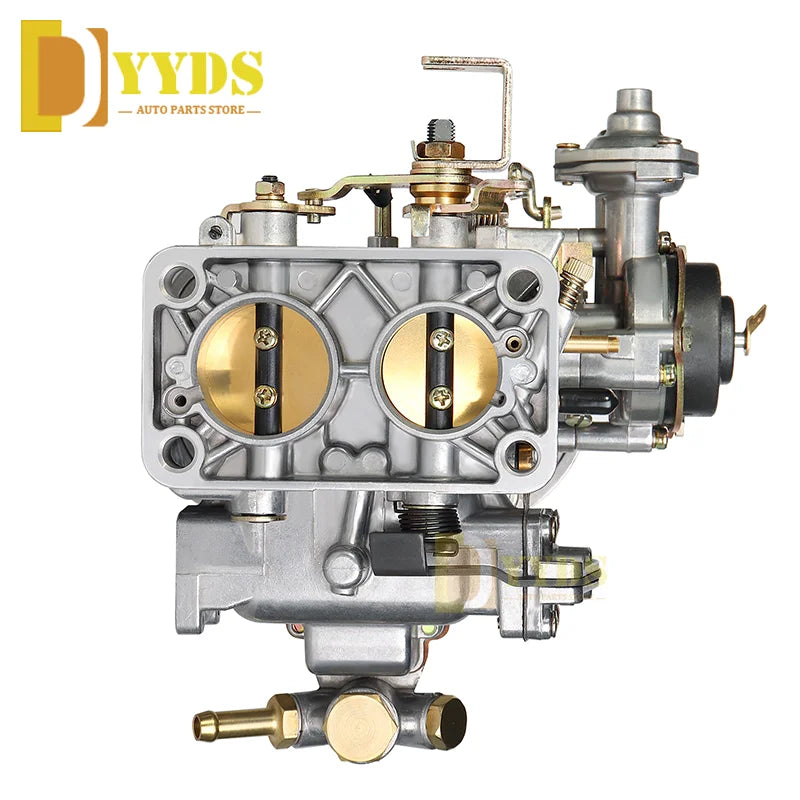

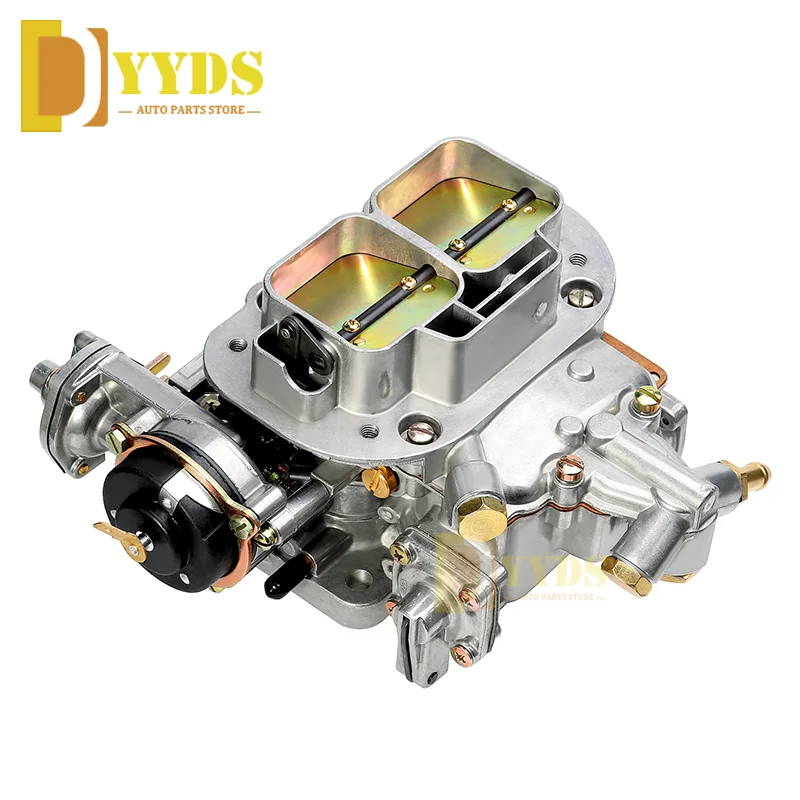

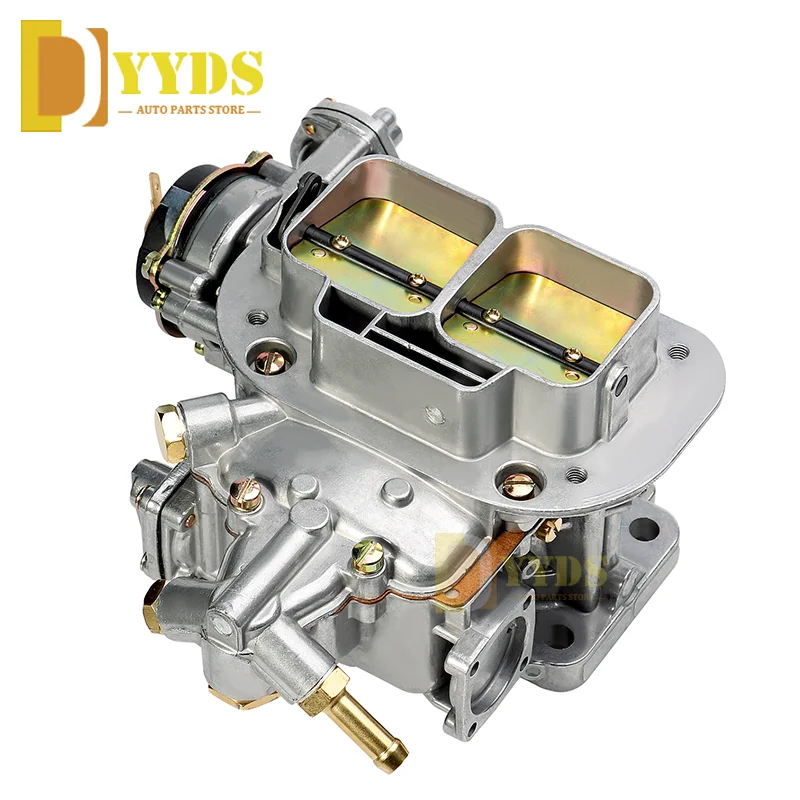

Weber 32 36 Carburetor For Datsun 510 610 620 Nissan Sentra 720 Pulasar CJ5 CJ7 EMPI/Holley Toyota Pickup 20R 22R DGV DGEV DGAV

Weber 32 36 Carburetor For Datsun 510 610 620 Nissan Sentra 720 Pulasar CJ5 CJ7 EMPI/Holley Toyota Pickup 20R 22R DGV DGEV DGAV

Regular price $200.00
Regular price $367.00 Sale price $200.00
Sale Sold out
Shipping calculated at checkout.
Ships From
Quantity



OE Part Number: DFEV 32/36  Weber 32/36


Notes:

Please Confirm The OEM Numer is same AS Listed above;

Make sure to match your car and the same as our picture.If you are not sure you can contact us, we will check for you in time.


Application:

For 1969-1972 Datsun Pickup L16 (1600cc) PL521 also fits Datsun 510

For 1973-1974 Datsun Pickup L18 (1800cc) PL620 also fits 510, 610, and 710

For 1975-1980 Datsun Pickup L20 (2000cc) PL620 also fits 510, 610, and 710

For 1982- 1978 Datsun 200SX 2.2L

For 1981-1982 Nissan Pickup Z20 (2000cc) PL720

For 1981-1983 Nissan Pickup Z22 (2200cc) PL720

For 1980-1981 Nissan 200SX

For Nissan Sentra 1.5L 1.6L 1986

For Nissan 720 2.0L 2.2L 1984

For Nissan Pulsar 1.6L 1983

For 1972-1990 CJ5, CJ7, CJ8, Wrangler Cherokee with a 258Ci W/ 2BBL Carter BBD Carb

For 1986-1987 Mazda B2000 2.0L

For 1987-1993 Mazda B2200 2.2L


Specifications:

Primary Venturi:

φ26mm

Secondary Venturi:

φ10.5mm

Primary Auxiliary Venturi:

φ27mm

Secondary Auxiliary Venturi:

φ10.5mm

Primary Main Jet:

1.4mm

Secondary Main Jet:

1.4mm

Primary Air Corrector Jet:

1.7mm

Secondary Air Corrector Jet:

1.6mm

Primary Emulsion Tube:

F50

Secondary Emulsion Tube:

F50

Primary idle Jet:

0.6mm

Secondary Idle Jet:

0.5mm

Pump Jet:

φ0.5mm

Needle Valve:

2.0mm

Float Measurement:

47mm

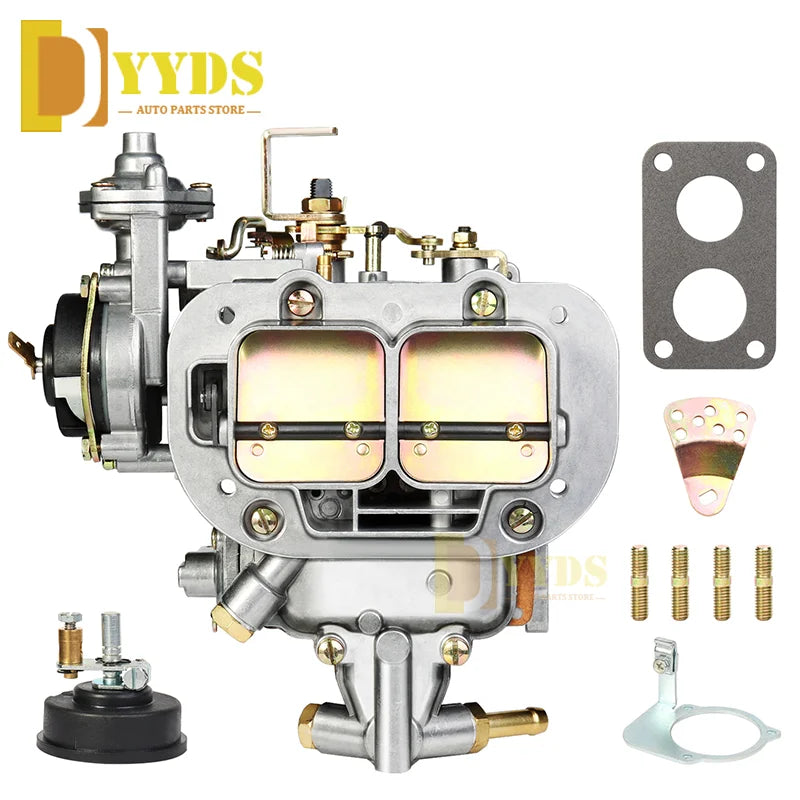

Package:

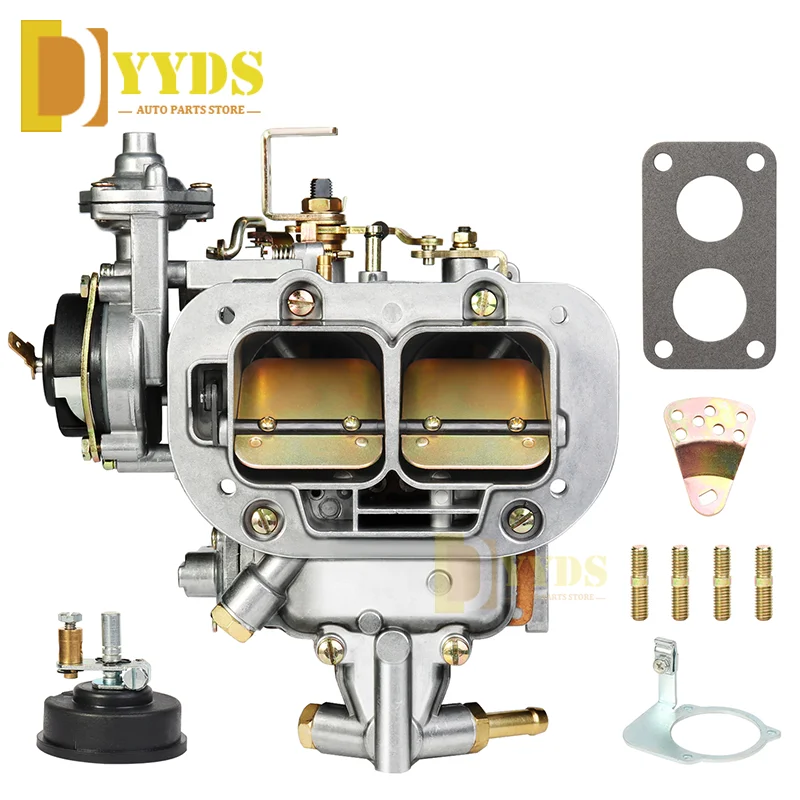

1 PCS X Carburetor Electric Choke

1 Set Manual Choke Conversion Kit


(As shown in the picture)
Note: Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors
