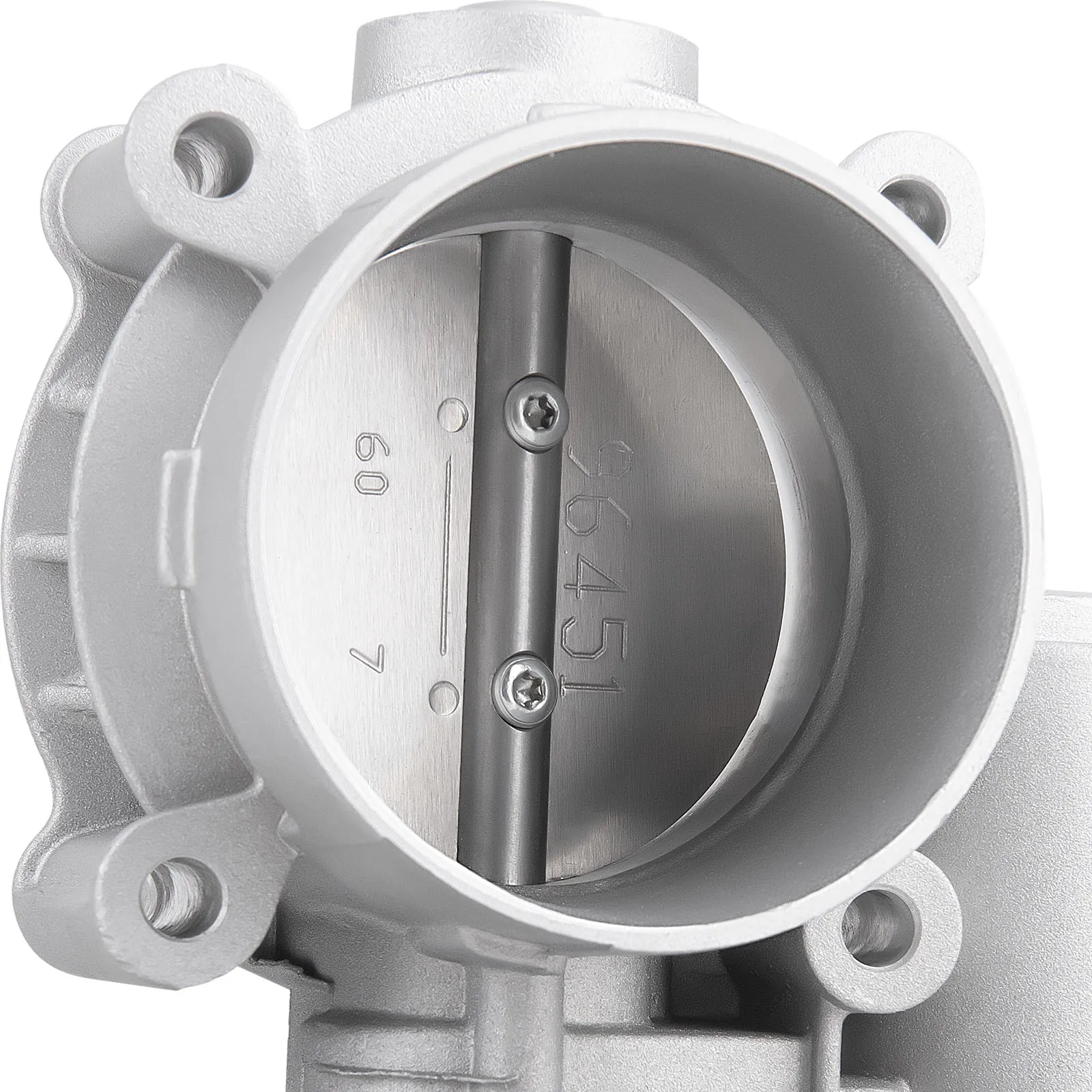

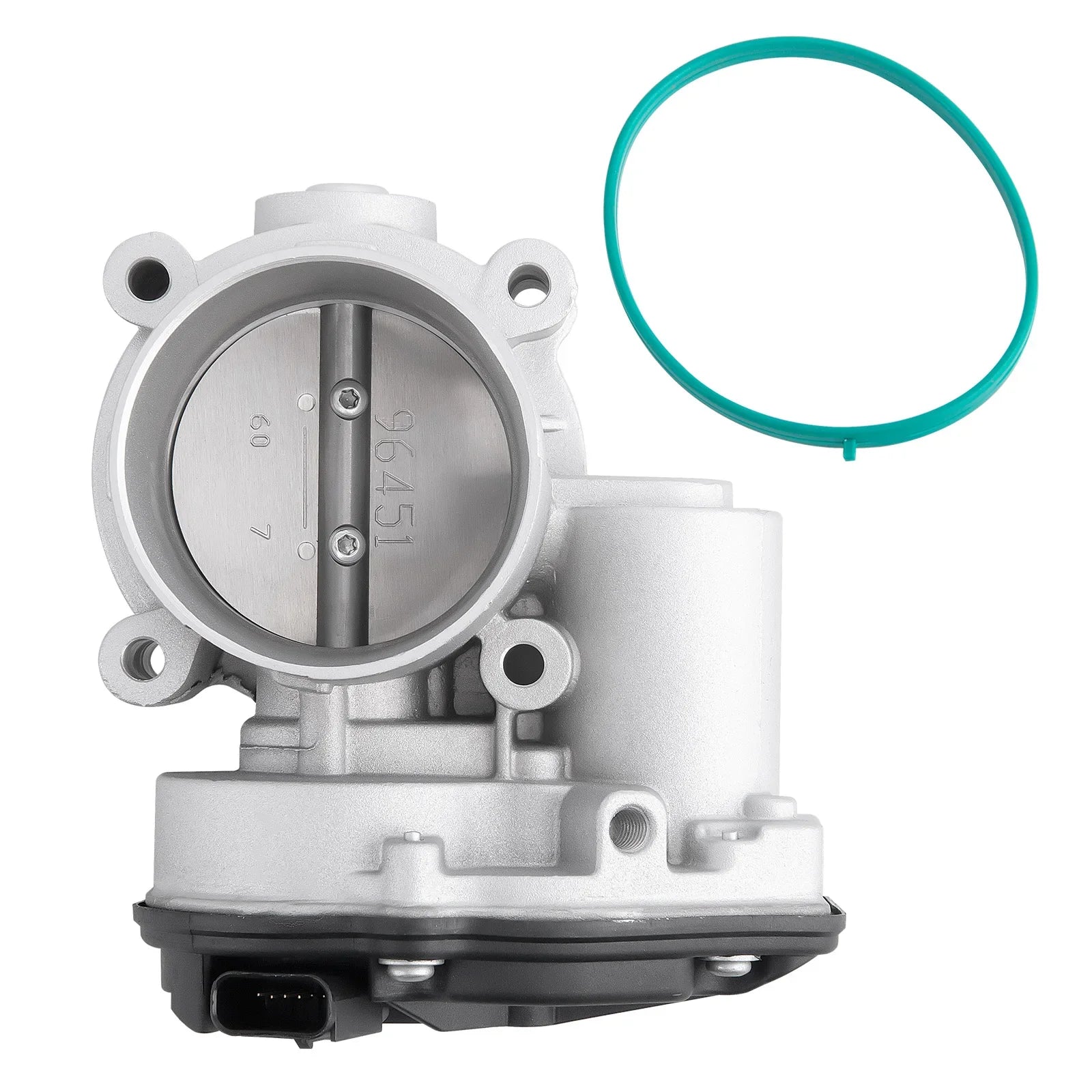

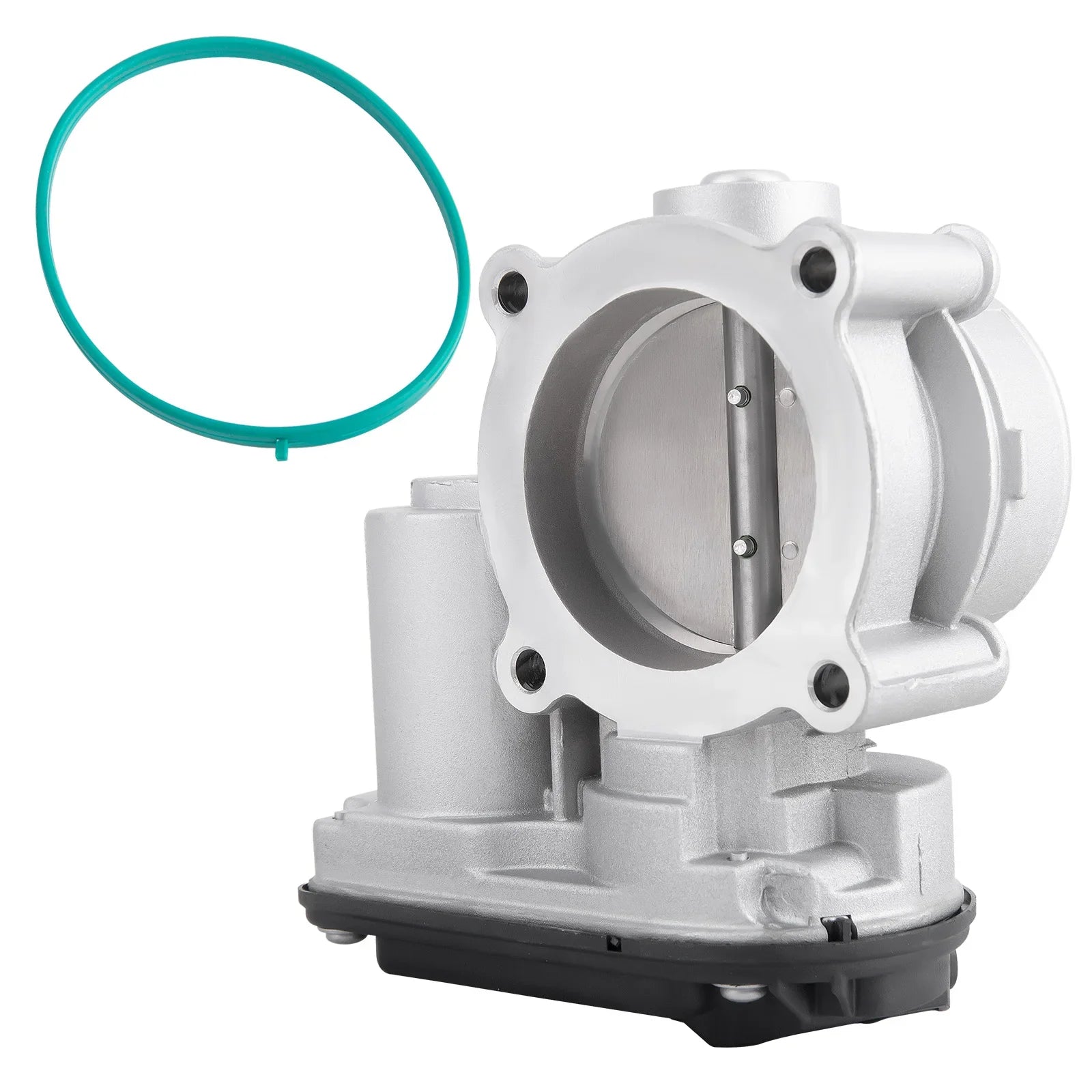

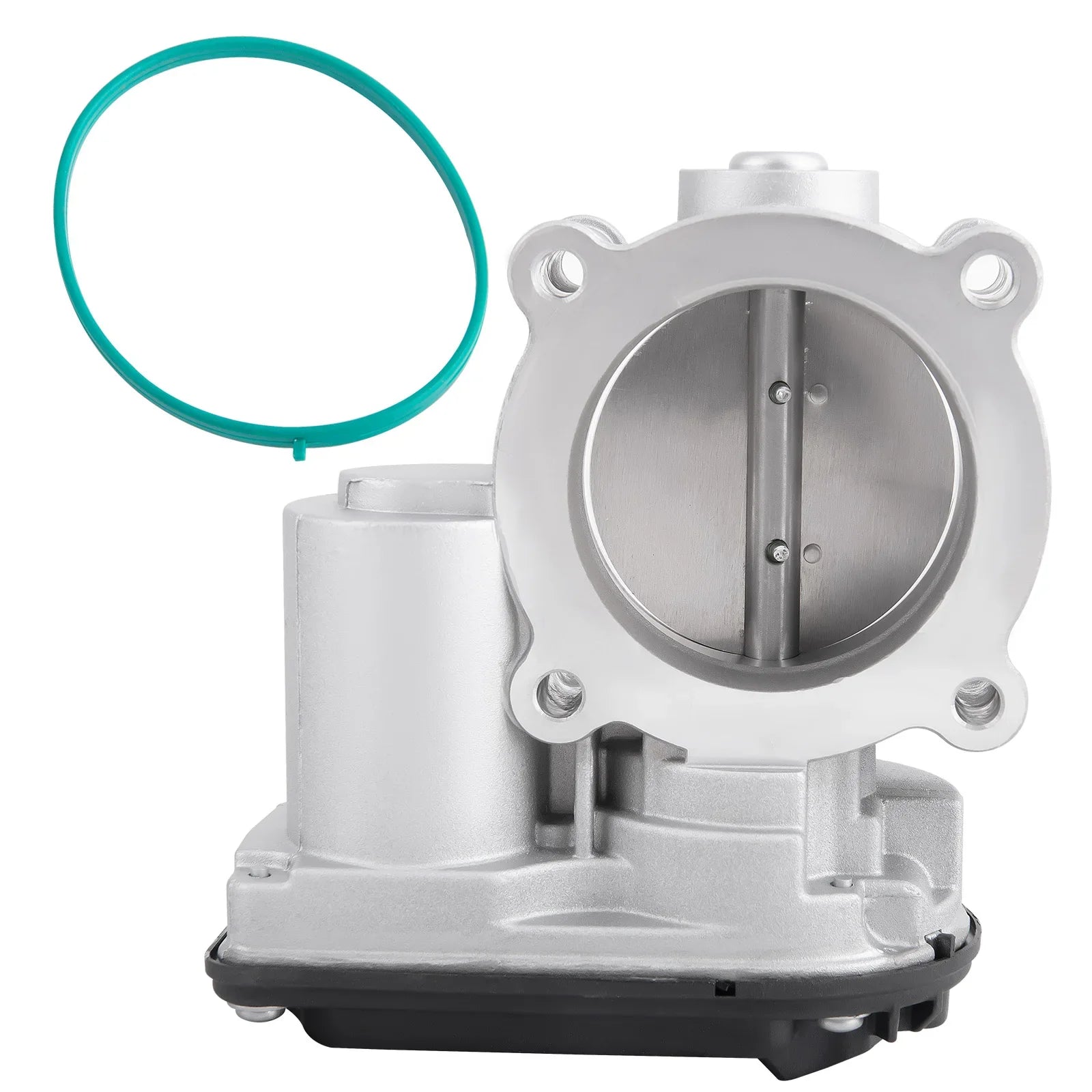

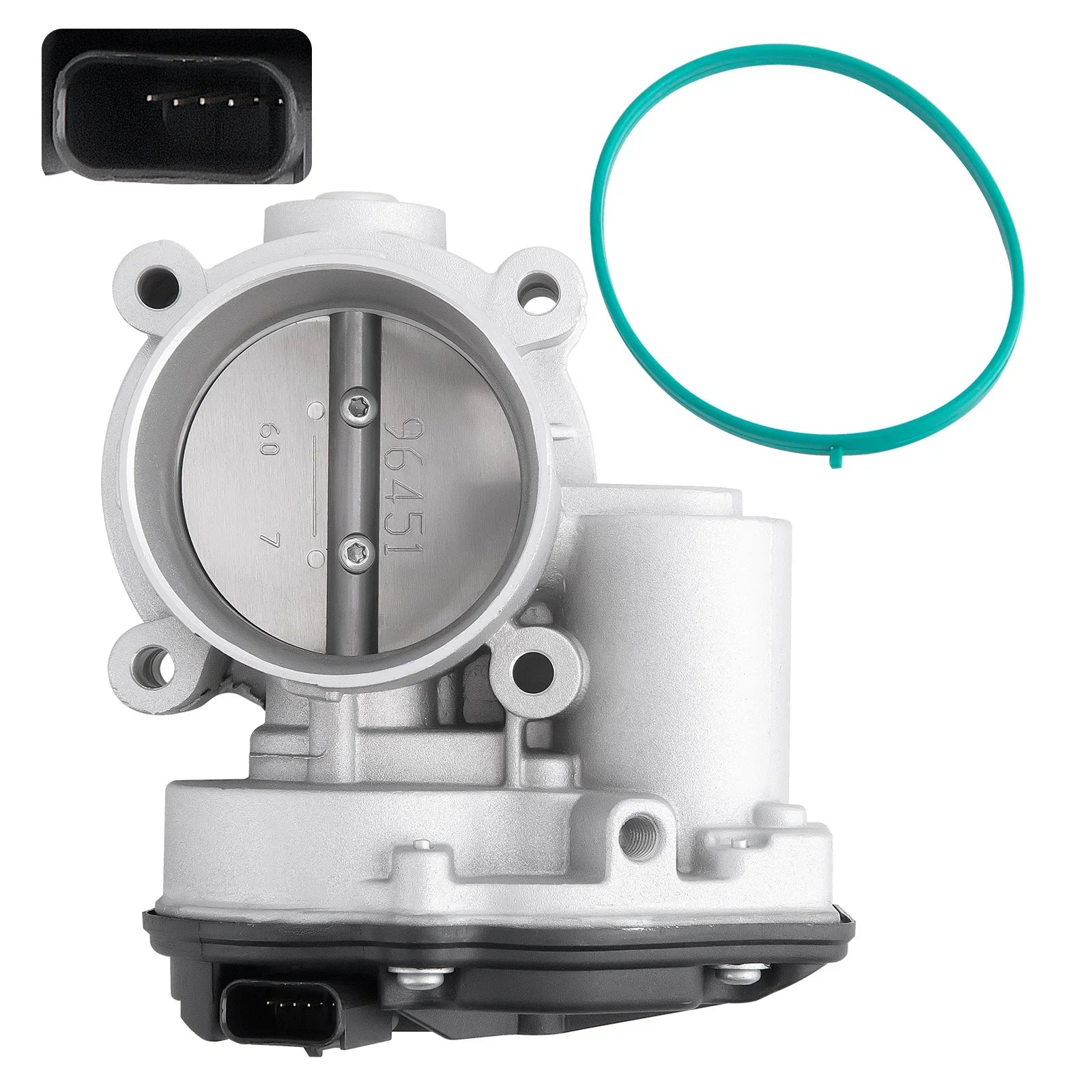

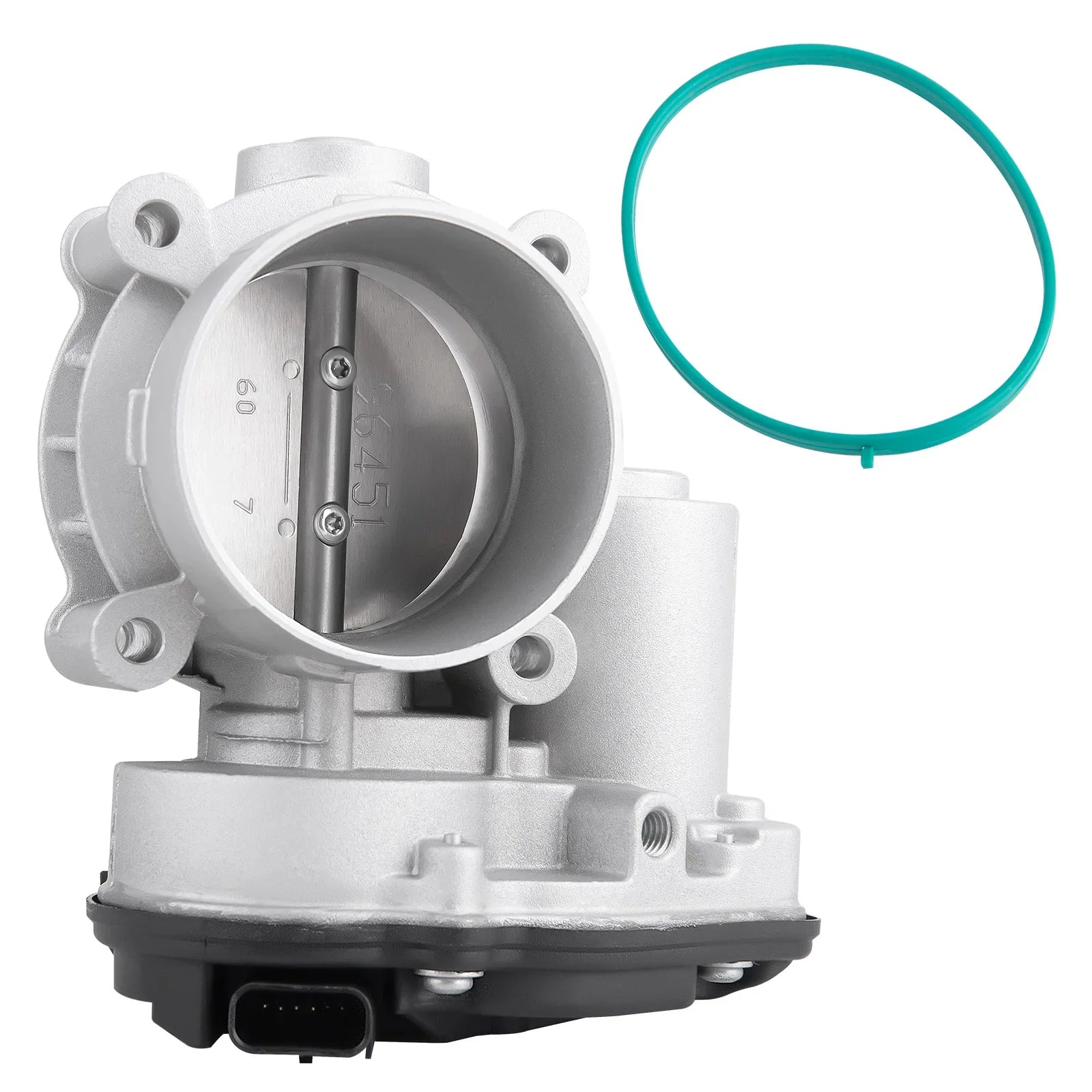

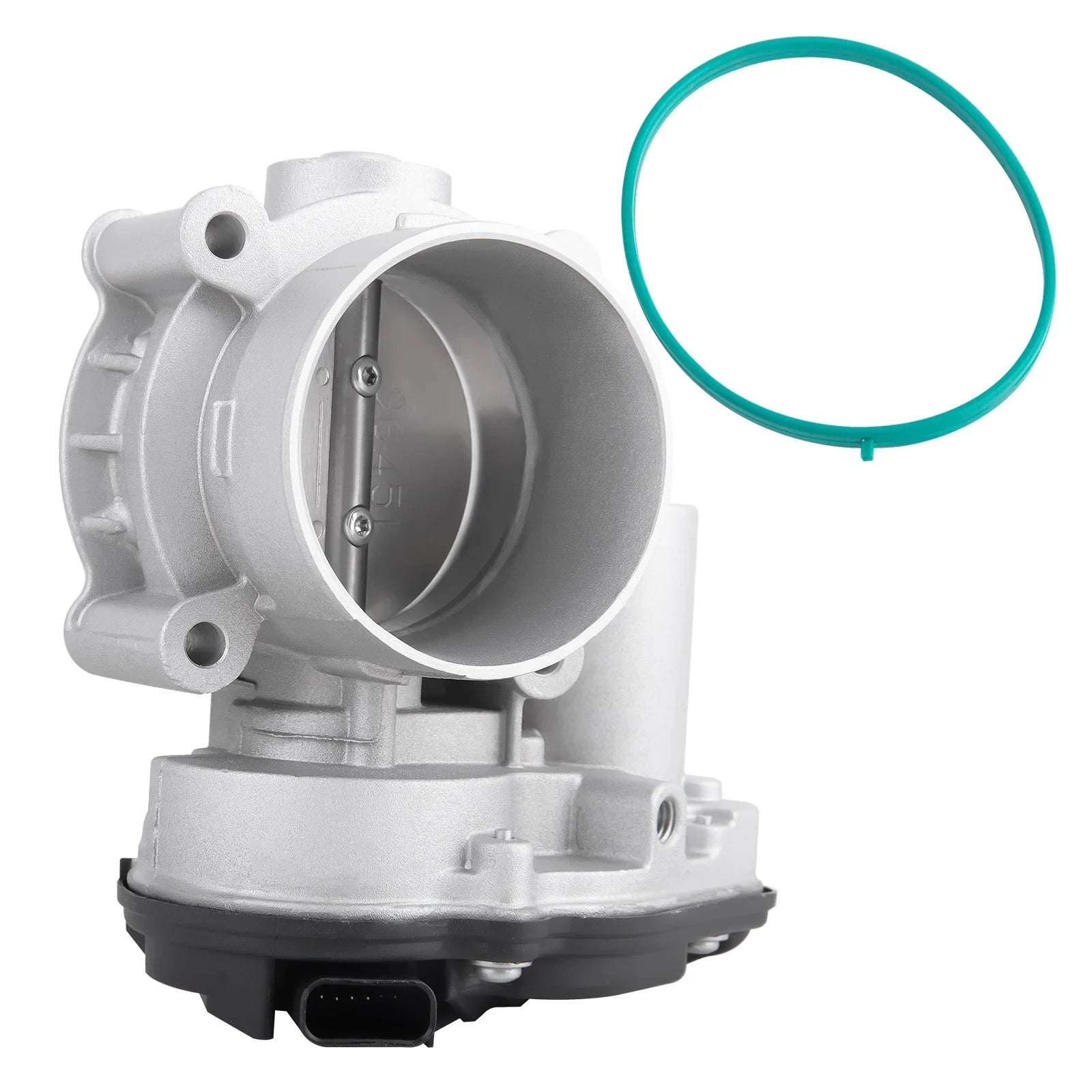

Throttle Body Assembly for Lincoln MKZ for Mercury Mariner/Milan 9L8E9F991BC DS7Z9E926A

Electronic Throttle Body for Ford Escape L4 2.5L 2009-2018 for Mercury Mariner V6 3.0L 2009-2011 for Lincoln MKZ L4 DS7Z9E926A

Application

for Ford C-Max L4 2.0L 2013-2018

for Ford Escape L4 2.5L 2009-2018

for Ford Escape V6 3.0L 2009-2012

for Ford Fusion L4 2.0L 2018 ELECTRIC/GAS

for Ford Fusion L4 2.0L 2013 Natural

for Ford Fusion L4 2.0L 2014-2017 VIN: U

for Ford Fusion L4 2.5L 2010-2018

for Ford Fusion V6 3.0L 2010-2012

for Ford Ranger L4 2.5L 2013-2016

for Ford Transit Connect L4 2.5L 2014-2018

for Lincoln MKZ L4 2.0L 2013-2018 ELECTRIC/GAS

for Lincoln MKZ L4 2.5L 2011-2012

for Mercury Mariner L4 2.5L 2009-2011

for Mercury Mariner V6 3.0L 2009-2011

for Mercury Milan V6 3.0L 2010

OE/Part number

DS7Z-9E926-A,

DS7Z9E926A,

DS7Z9E926E,

9L8E9F991BC,

9L8E9E926BC,

9L8E9F991BC,

9L8E9E926BC,

S20067,

67-6015,

977-300,

DS7Z-9E926-D,

DS7Z9E926D,

9L8Z9E926A,

DS7E-9F991-AJ,

7T4Z9E926EA,

Specification

Bore Diameter:60mm(in 2.36)

Main Port Inside Diameter(in):2-3/8

Air Intake Port Maximum Diameter (in):2-3/8

Throttle Plate Diameter (in):2-3/8

Throttle Body Actuation Type:Electrical

Fitment Type:Direct Replacement

Material:Aluminum

Mount Hole Quantity:4

Connector Quantity:1

Terminal QTY:6

Fuel System Type:FI

Connector Type:Blade
