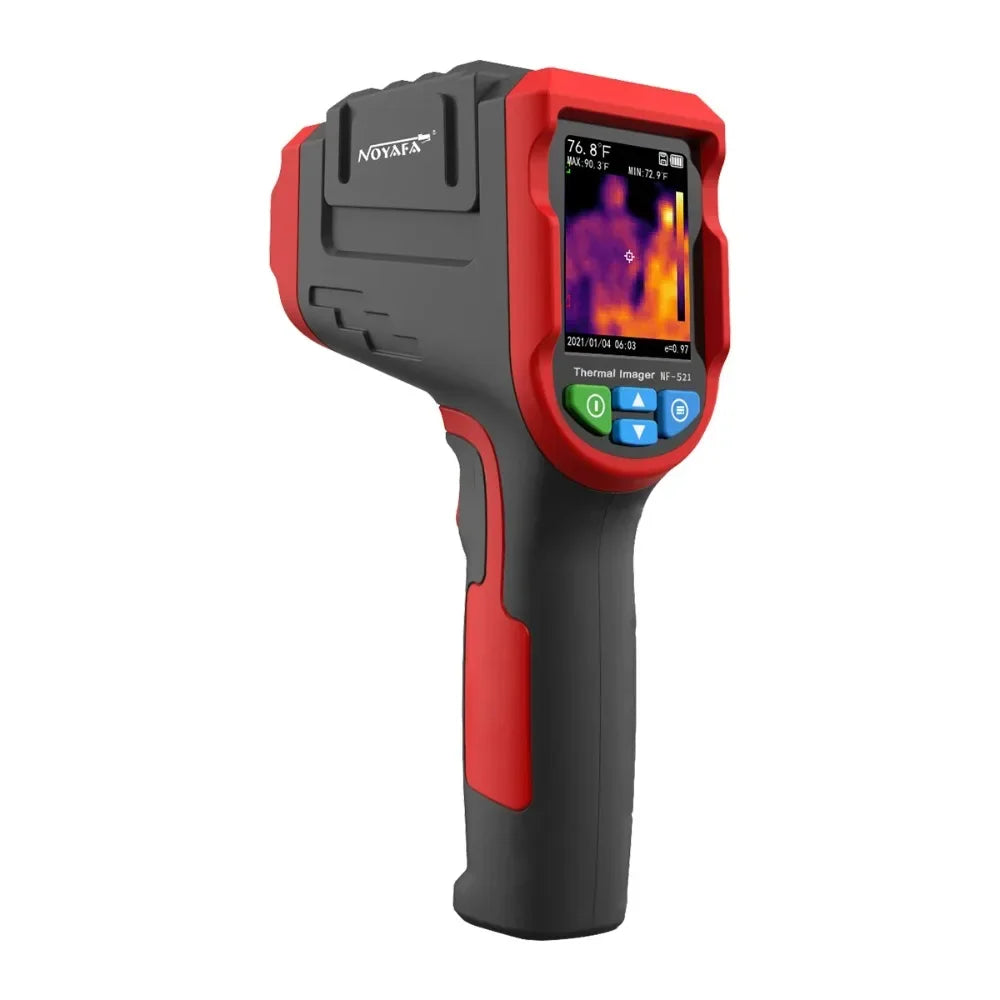

NF-521 Infrared Thermal Imager -20~400C Industrial Testing Heating Detector 2000 Pixels Temperature Thermal Imaging Camera power tools

Specification:

Thermal imaging resolution: 1024 pixels (32*32)

Visible light camera: 2 million pixels

Display Mode: Thermal Imaging, Thermal Hybrid, Digital Camera

Color Palette: Iron Red, Rainbow, Black & White

Wavelength range: 8~14um

Field of View (FOV): 33°horizontal

Instantaneous Field of View (IFOV): 18mrad

Thermal imaging sensitivity: 150mk

Frame rate: ≤9Hz

Save Image Format: Bitmap (BMP) Image

Measuring temperature range: -20°C to 400°C

Basic Accuracy:

o°°C to 400°C accuracy: ±1.8% or ±1.8°C, whichever is greater,

-20 to -0.9℃ Accuracy: ±3℃ test condition,

Emissivity: 0.95 Ambient temperature: 25±2℃

Emissivity: 0.10-0.99 custom adjustment

Measurement resolution: 0.1°℃/F

Response time: 150ms

Wavelength range: 8~14um

Equipment size: 60*120*210mm

Display Type: 2.4"TFTLCD

Display resolution: 320*240 pixels

Battery: 3.7V/2600mAh

Automatic shutdown function: yes

Operating Temperature: -10°C to 45°C, 14°F to 113°F

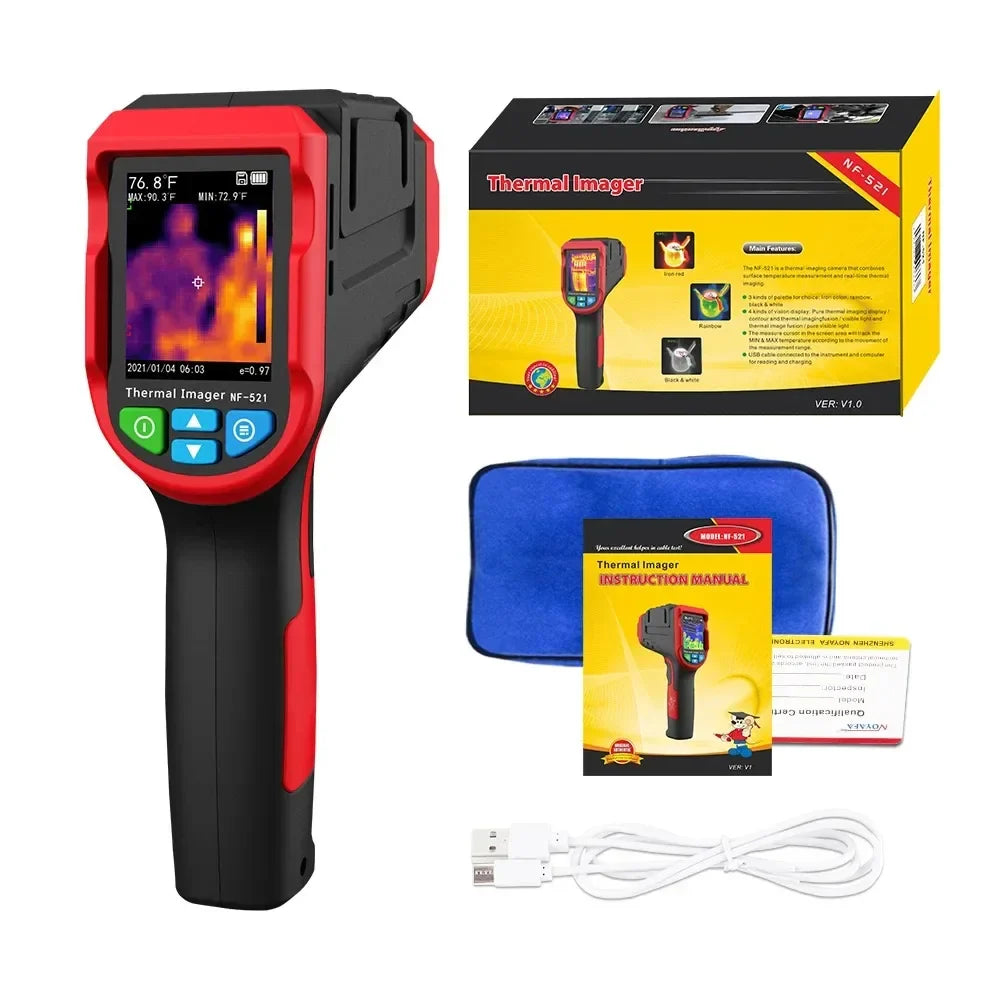

Package contains:

1*Charging head

1*Instruction

1*Data cable

1*8GB mini TF card
