Mercedes-Benz Android Head Unit 12.3" Android 13 Dual Screen Style Multimedia Blue Anti-Glare HD Screen for Mercedes-Benz 2006-2013 S CL Class W221 W216 NTG 3.0/3.5, Support Carplay Android Auto Mirror Link (8+128GB)

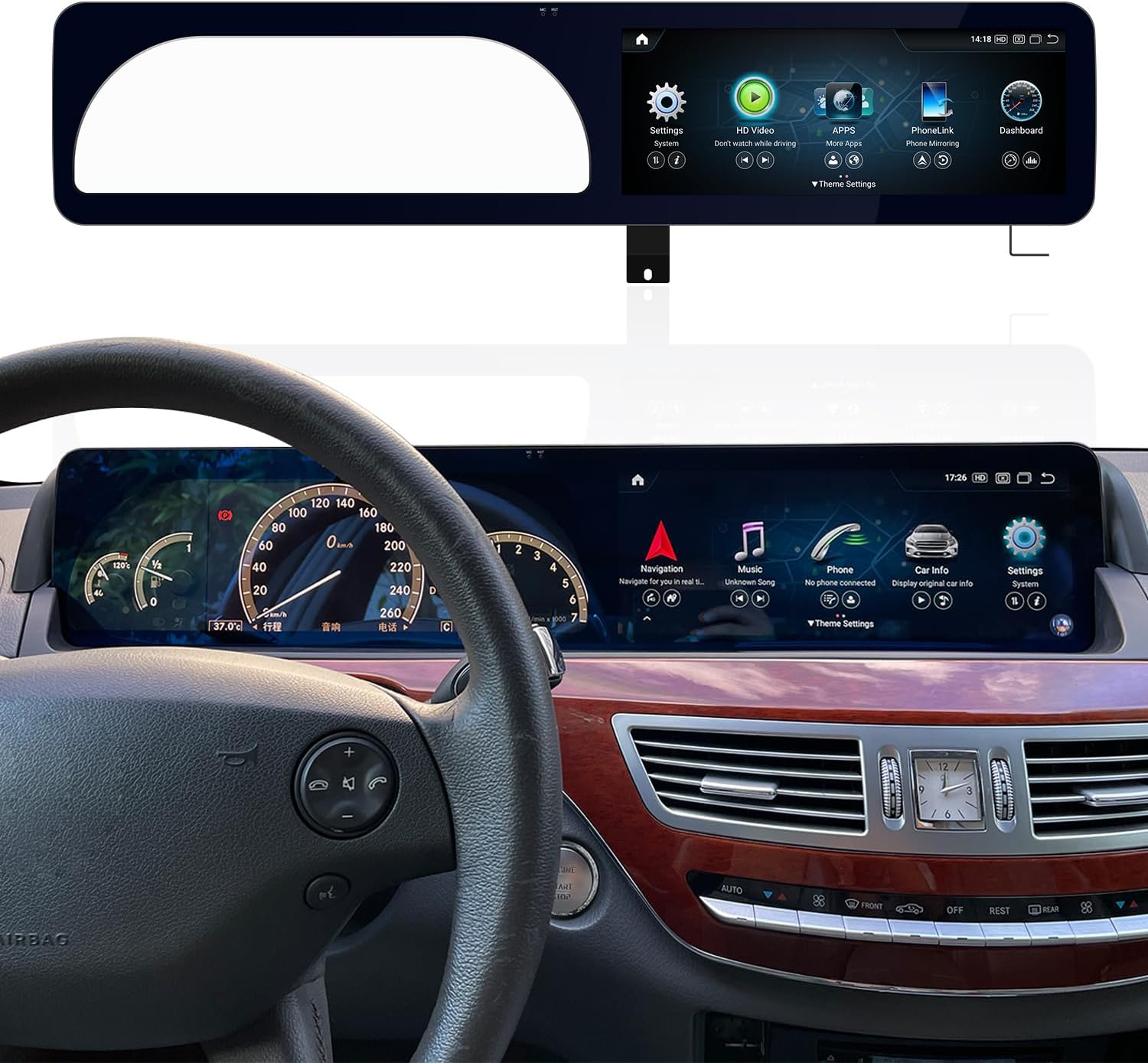

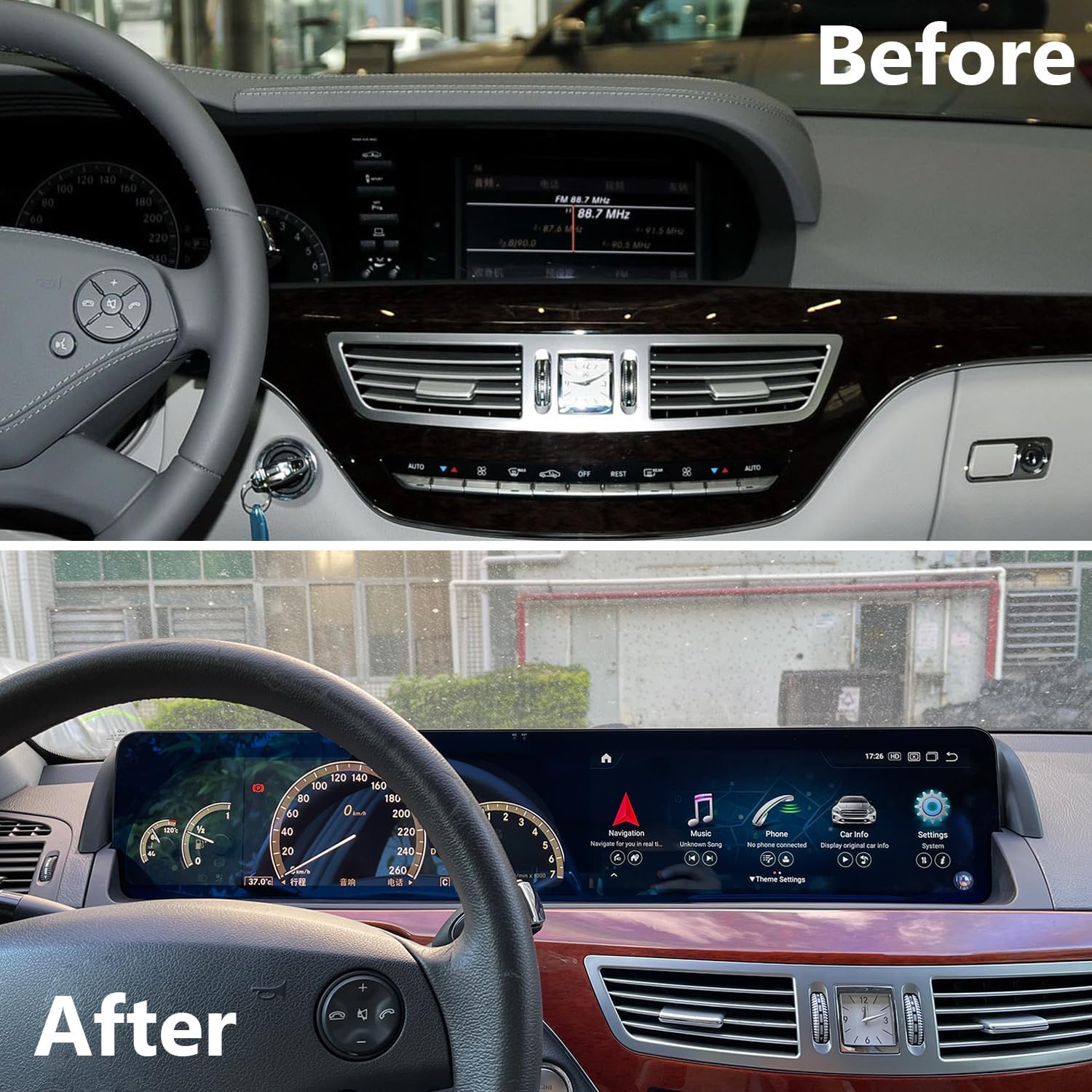

Update your W221/S W216/CL-Class to NEW Style 12.3" Dual-screen style Android 13 Screen Blue Anti-Glared Technology

You can get carplay android auto and miror link function.

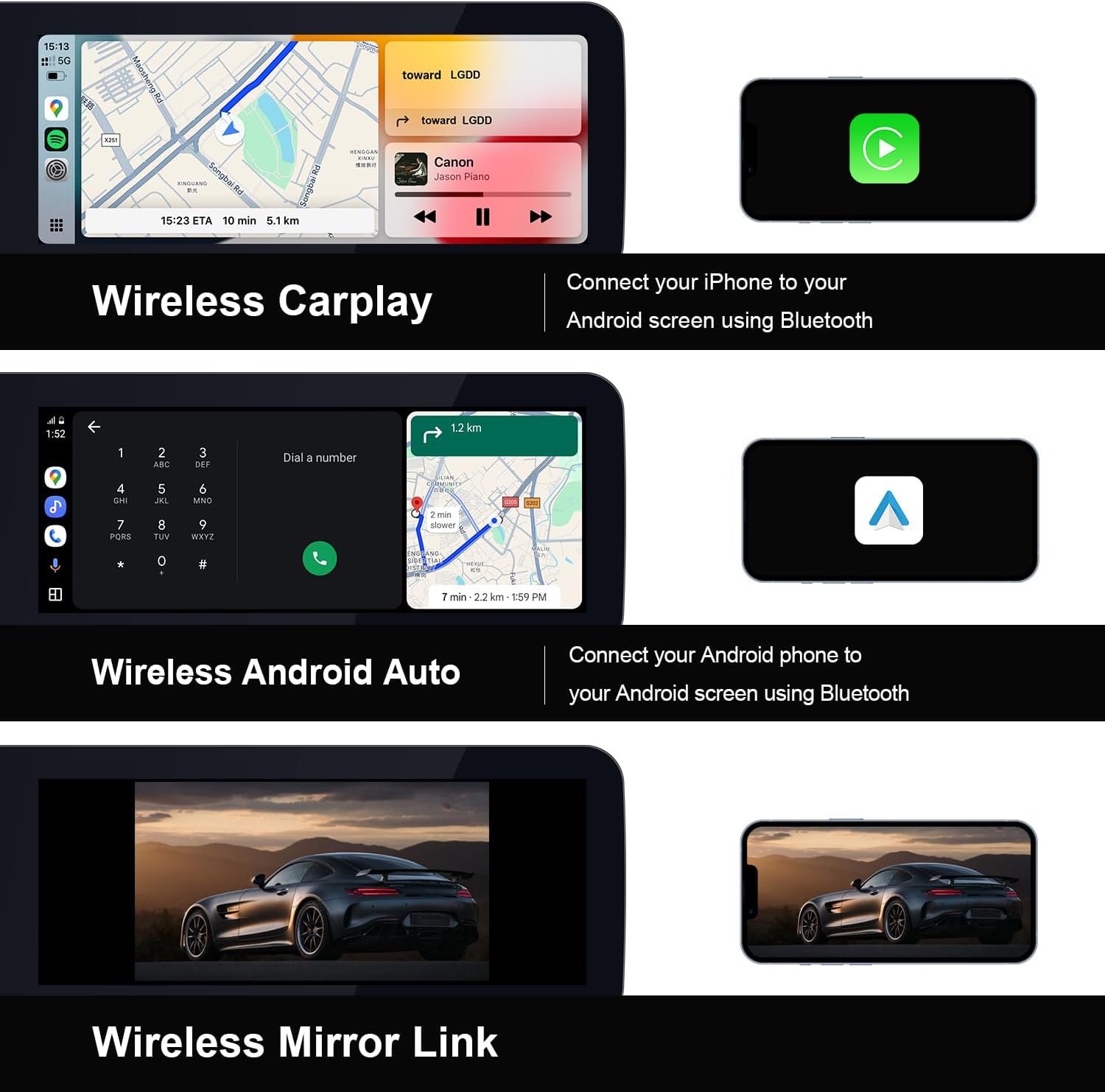

Support wired/wireless apple carplay

Built-in wired/wireless carplay function. You can use your phone app on YEEHUNG android screen, support touch control.

Built-in wired/wireless Android auto function.

You can use your phone app on YEEHUNG android screen, support touch control.

Built-in wired/wireless Mirroring link function.

You can mirror all the pictures of your mobile phone to YEEHUNG Android screen.

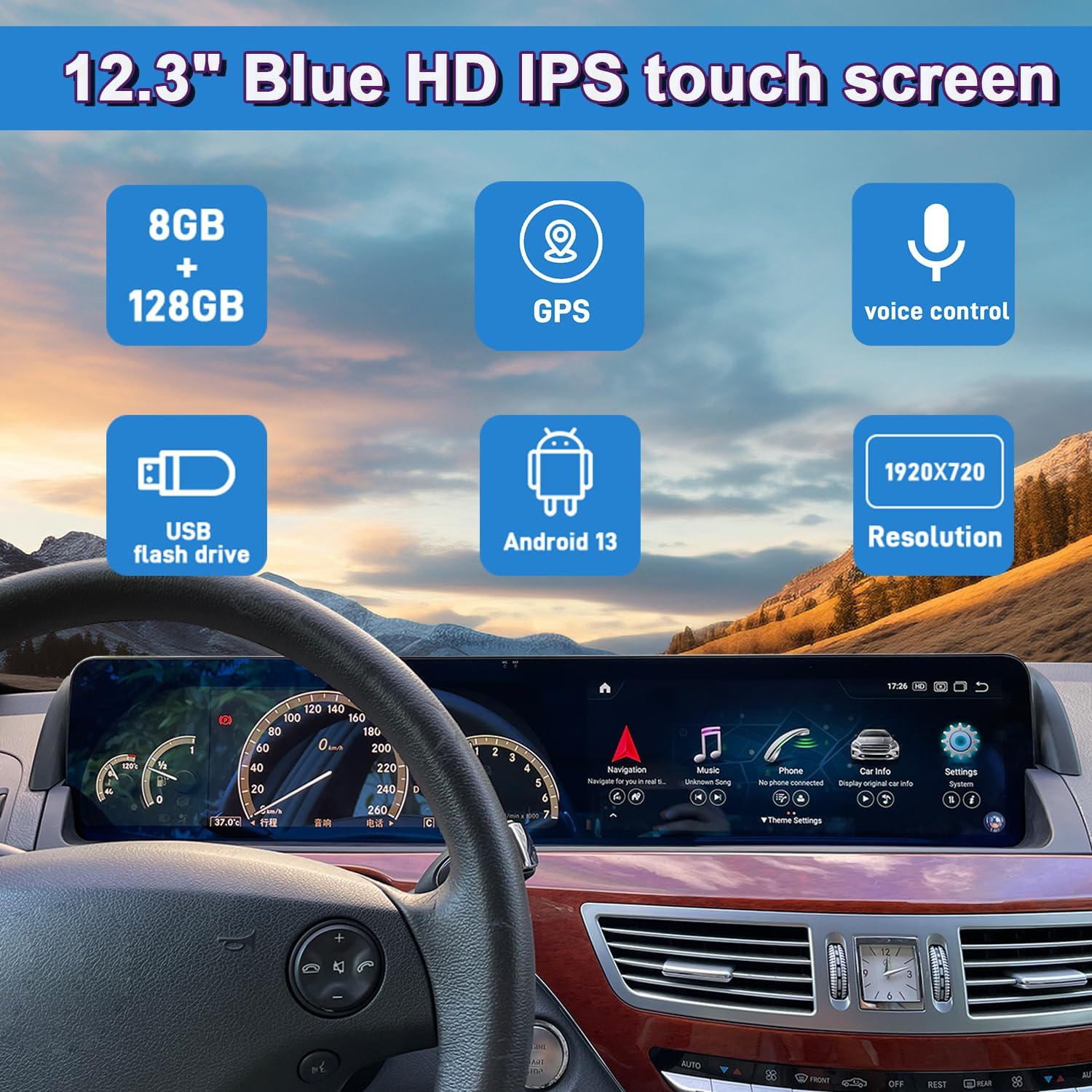

Using the 12.3-inch large IPS blue display, Resolution 1920x 720.

You can enjoy the online movie and video playback experience.

When your car's original CD player cable has a fiber optic cable, how to properly adapter fiber optic cables?

Operational Steps:

Step 1: Unplug the 2P fiber optic cable from the original CD player, and remember the hole where the cable is located.

Step 2: Insert the 2P fiber optic cable you just unplugged into the appropriate hole on the YEEHUNG ISO harness.

Step 3: After the fiber optic cable is inserted, plug the ISO harness into the stock CD player.

Step 4: Finally, you can just connect the ISO harness on the other end to the stock CD cable.

Please note: Improperly adapted fiber optic cables can result in no sound from the unit.

Please connect the LVDS BOX VCC+12V to the DVR_POWER on the ISO cable.

A. How to get the OEM car info.

1. If your car is a NTG3.0(2007-2009), please use the NTG3.0 LVDS BOX, Make sure connect the VCC +12V of the LVDS BOX to DVR_POWER wire.

2. If your car is a NTG3.5(2010-2013), please use the NTG3.5 LVDS BOX, Make sure connect the VCC +12V of the LVDS BOX to DVR_POWER wire.

B. You can open the ESP analog button control on the android screen.

How to get the android sound

This is a very important of Andriod Sound.

1.When your car has AMI, give priority to plug in the AMI audio cable.

2. If it doesn't have AMI interface and has AUX input, you need to use the AUX audio cable to connect.

3. If your car has the 3.5mm AUX jack, please connect the Android harness with the 3.5mm audio plug on top of it.

4. If your car has neither AMI nor AUX, you need to plug the audio in put and audio out put cables above the ISO directly to each other.

How the get the AUX menu of the NTG3.0 ?

Activate the OEM AUX menu (NTG3.0), otherwise you won't get the Android sound.

If your NTG3.0 the OEM menu doesn't have AUX, you need to activate it. Otherwise you can't get the Android sound.

Activation steps:

Step1: Please install MCU software version: 220510, you can get it from the after-sales service team on the back cover of the manual.

Step2: Settings- factory settings(pass 190627)-Vehicle- aux activate, Pls select it.

Step3: It will automatically start to activate OEM aux and show up in the stock menu.

Step4: You need to select the OEM AUX menu before you enter the Android every time.

Step5: Update your MCU to the latest version.

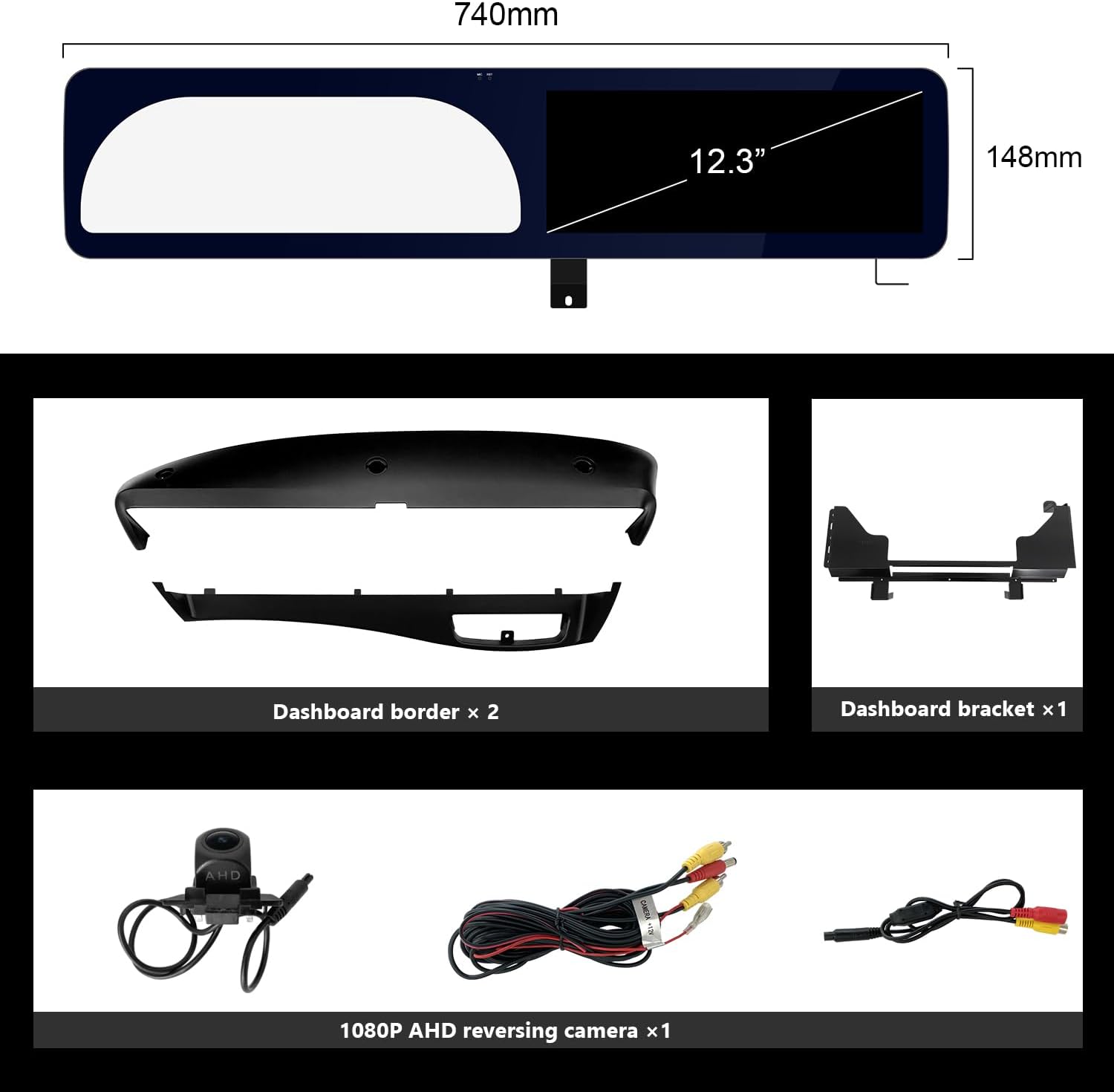

You can buy the spcial cover for your YEEHUNG w221 dual screen.

If you want to get the dashboard cover in the same color as your interior, you can buy it as an extra.

It is only suitable for YEEHUNG W221 Dual Android Screen.

Brown Cover Asin: B0BNN3CF86

Grey Cover Asin: B0BNN45BYK

Black Cover Asin: B0BNN2DMKK

AHD 1080P 30FPS HD inverted picture camera is standard.

1. We have an AHD reverse rear view camera standard in the product, which is installed at the left license plate light position at the rear of the car.

So you need to remove the original license plate light before you can install it.

2. You can get the reversing track when you are reversing.
