Launch CRT5011E TPMS Relearn Tool TPMS Sensor (315+433MHz) Support Read/ Activate/ Programming/ Relearn/ Reset/ Key Fob Test

Why you need TPMS

This tool is specially designed to work with all OBD II compliant vehicles, including Controller Area Network (CAN). It is required by EPA that all 1996 and newer vehicles (cars and light trucks) sold in the United States must be
OBD II compliant and this includes all American, Asian and European vehicles.

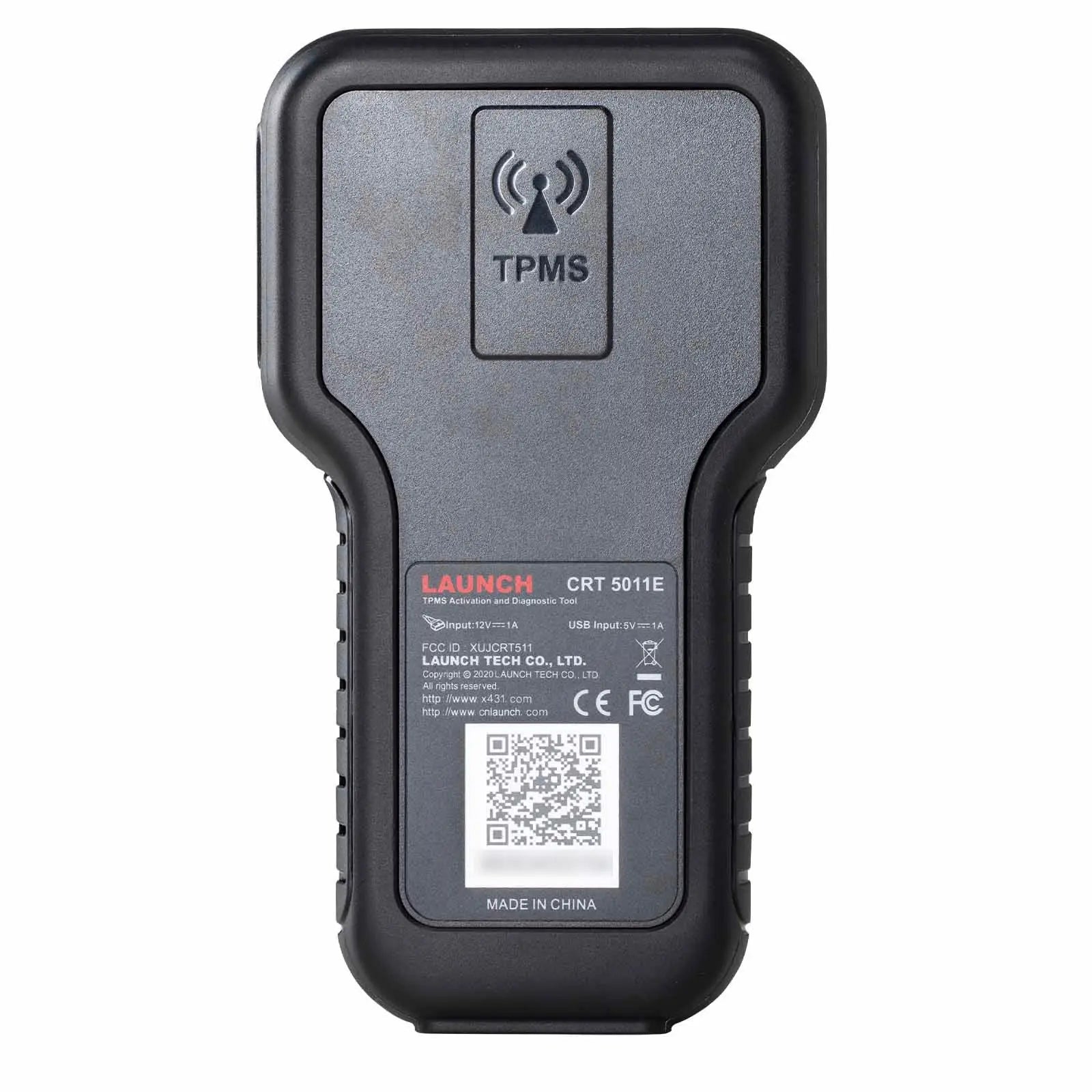

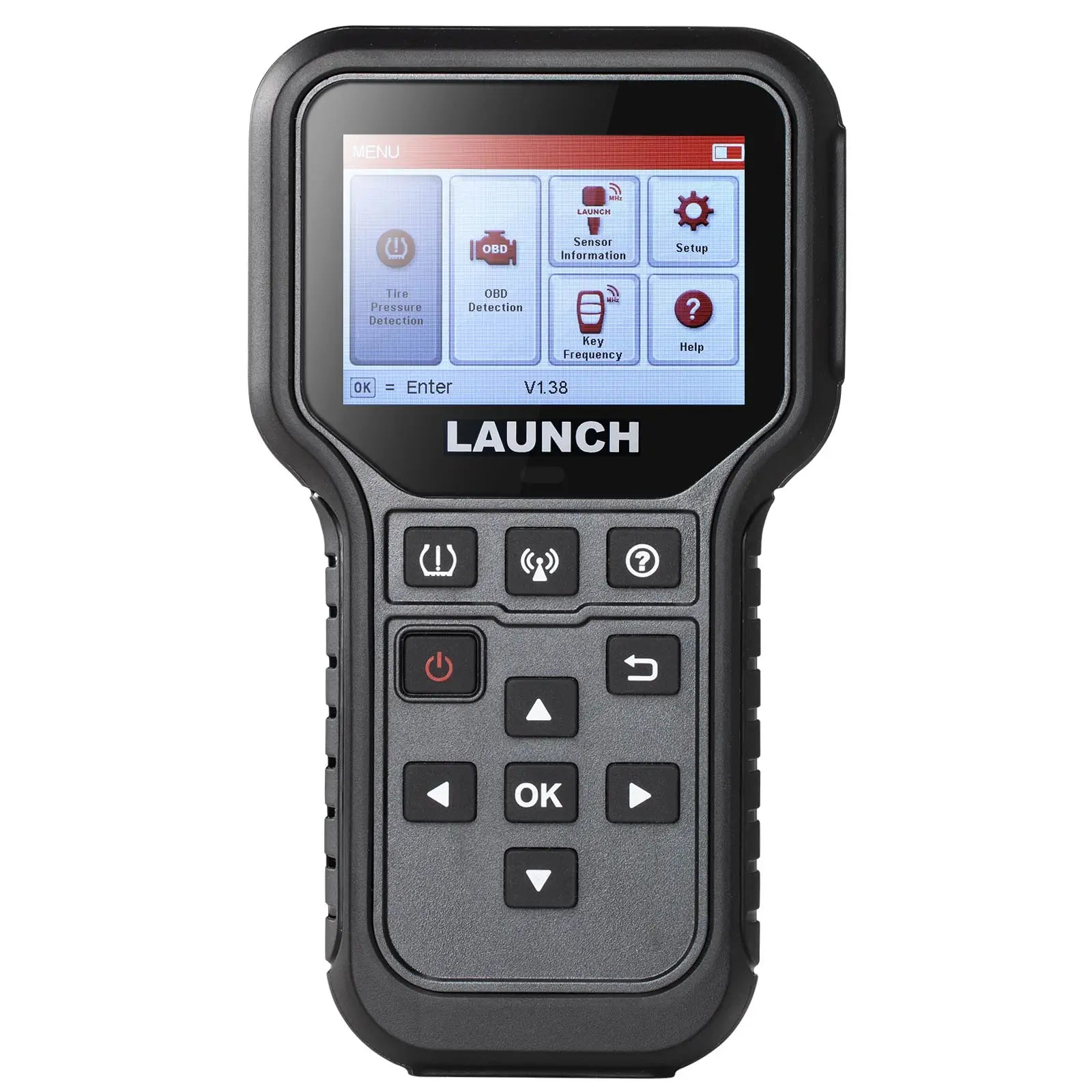

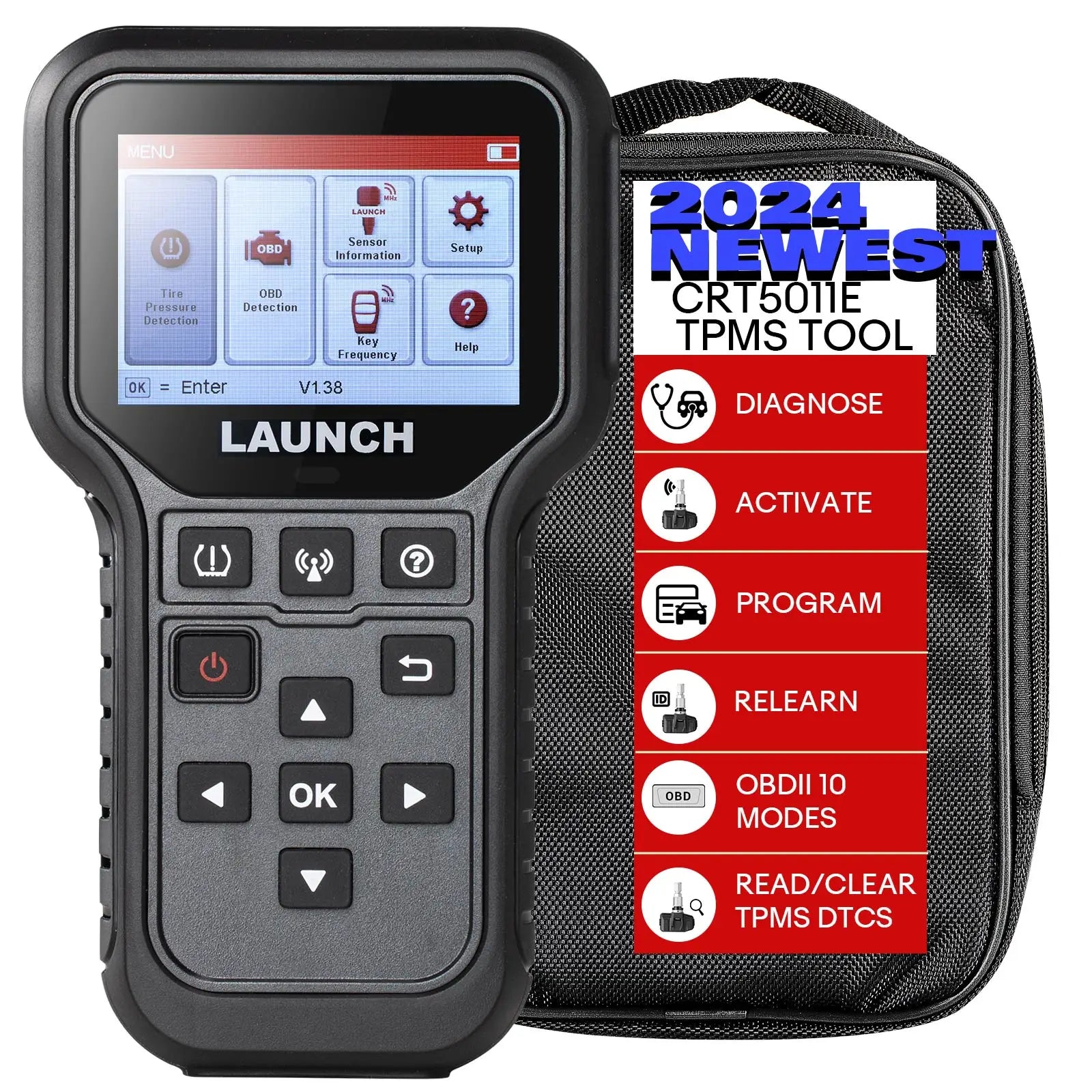

LAUNCH CRT5011E TPMS Activation and Diagnostic Tool

CRT5011E is a professional TPMS diagnostic tool that integrates TPMS sensor activation, reading, learning and programming.

It can activate and read tire pressure sensor information through high or low radio frequency and uses the OBD interface to reset the TPMS modules.

Programming the sensor by receiving a high frequency 315MHz/433MHz

TOP Reason to Choose LAUNCH CRT5011E TPMS Diagnsotic Tool

1. 3.5 inch inch color screen

2. Activate all 315/433MHz tire sensor

3. Read, copy, write Sensor ID quickly

4. Program up to 8 sensors

5.Tire pressure fault diagnosis, including read DTC, clear DTC, etc.

6.Built-in tire pressure learning instruction makes operation more easy

7.Cover 98% global vehicles with tire pressure system

8. Offer lifetime free update Online

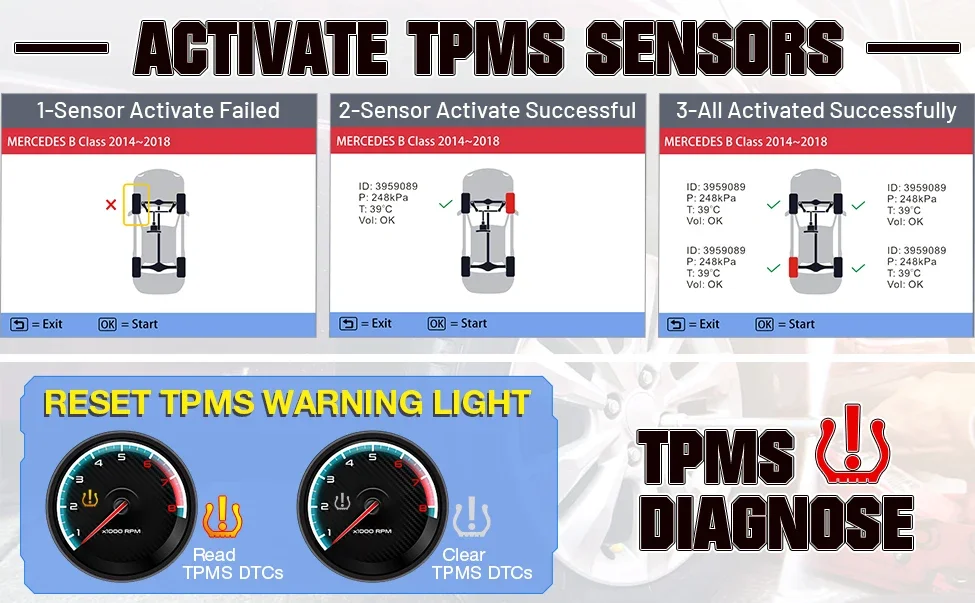

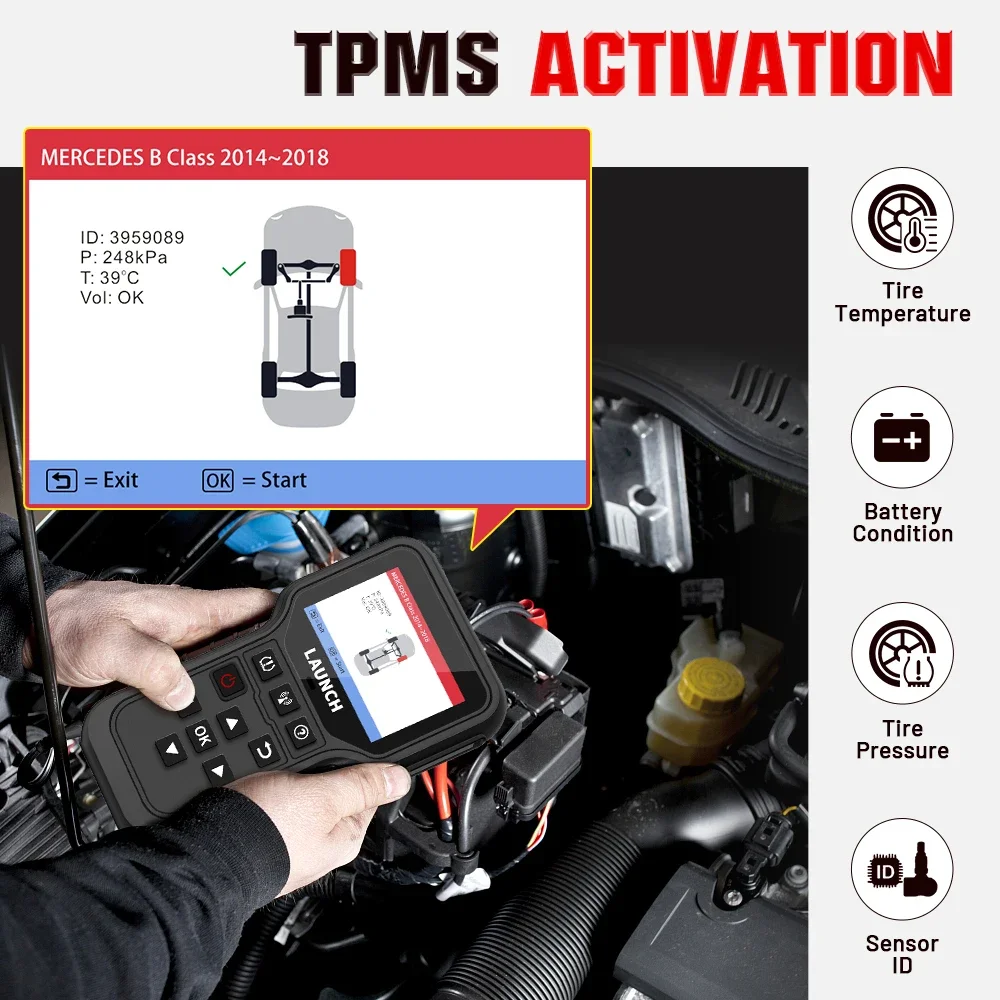

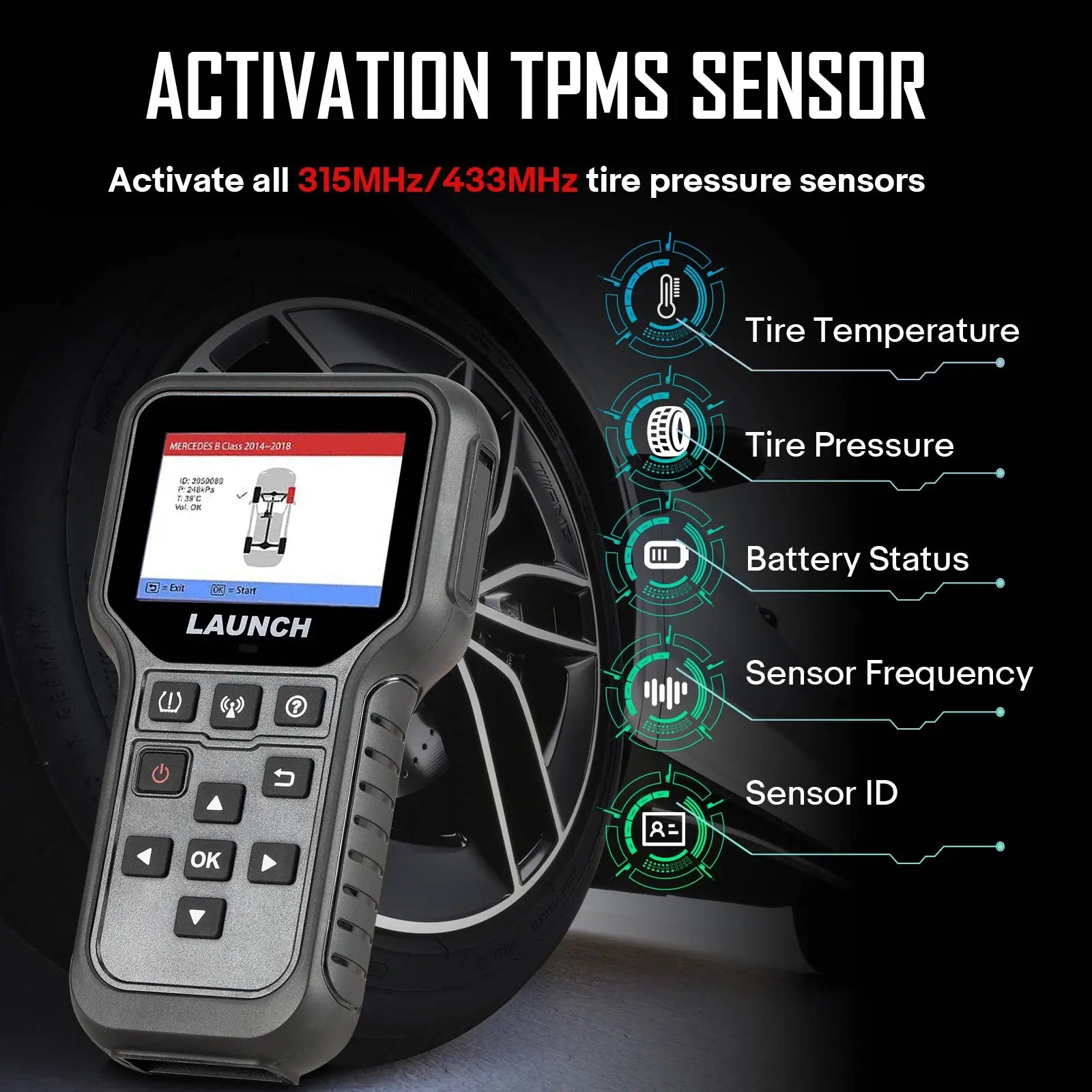

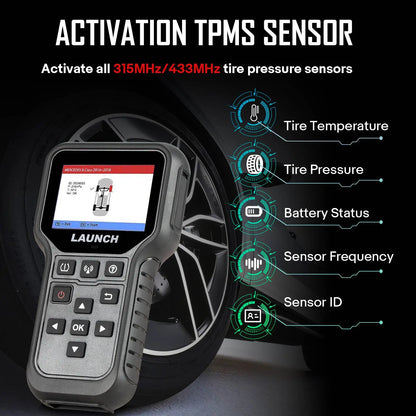

Sensor Activation

LAUNCH X431 TSUN can quickly activate the ID, wheel pressure, sensor frequency, tire temperature and battery status of the live sensor.

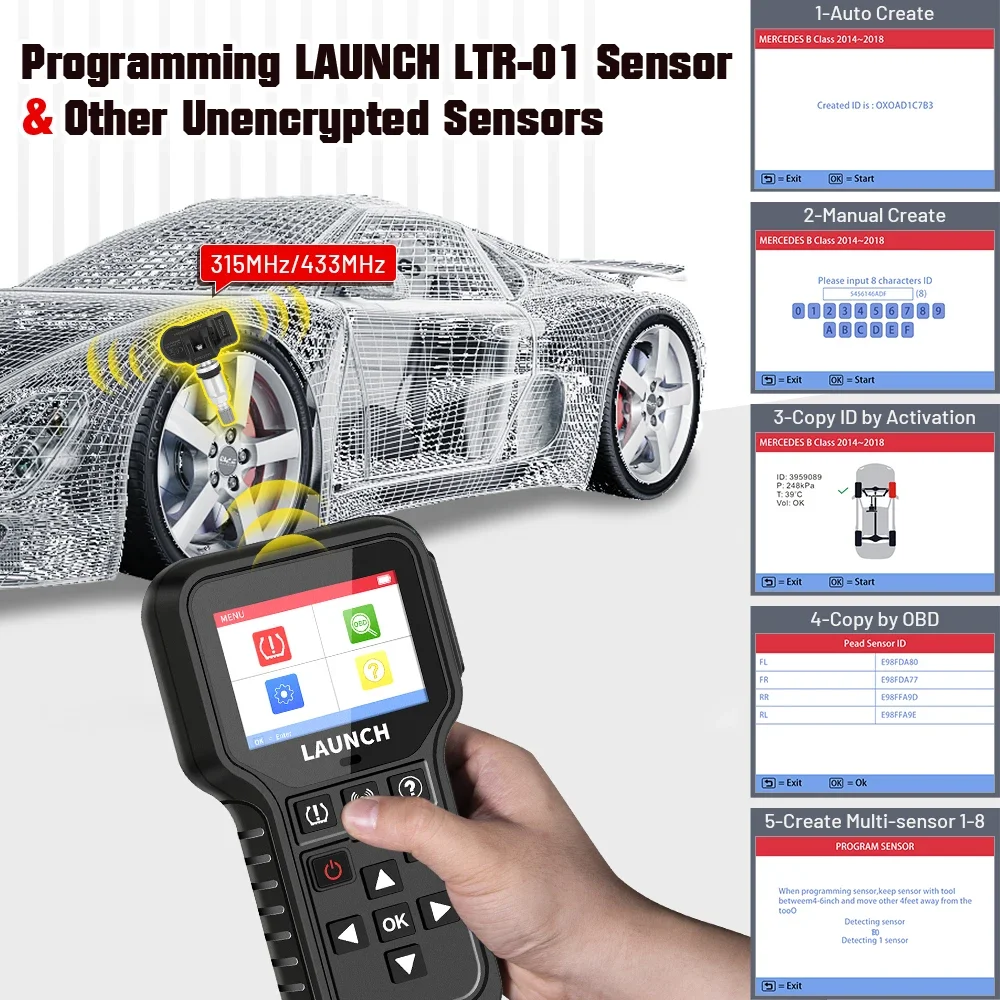

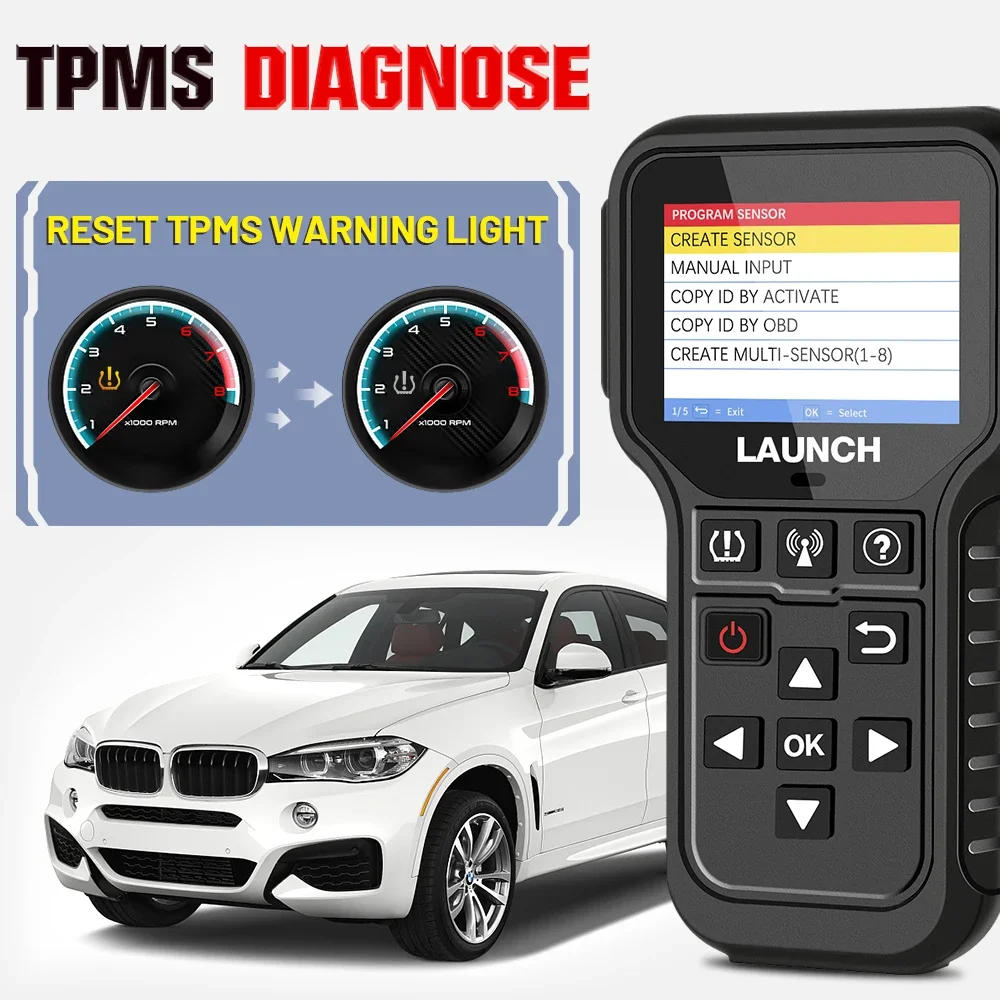

Sensor Programming

The user can use this function to program the sensor data to a blank LAUNCH sensor to replace the sensor with insufficient power and not working properly.

Provides three sensor programming methods: automatic, manual and copy by activation.

Automatic
When the original sensor ID cannot be obtained, this function can be used to program the LAUNCH sensor according to the ID randomly created by the test vehicle.

Manual
The original sensor ID can be obtained, and this function can be used to manually enter the ID or create it at will.

Copy by activation
By first activating the original sensor data, and then copying the activated sensor data into the LAUNCH sensor. Before using this method, the original sensor data must be activated.

TPMS Learning

The user can use this function to write the newly programmed sensor ID into the vehicle ECU for sensor identification.
Only when the newly programmed sensor ID is different from the original sensor ID stored in the vehicle ECU, the re-learning operation is required.
A total of three sensor learning methods are provided: static learning, self-learning and OBD re-learning

Static learning
Static learning needs to put the vehicle in "learning mode", and then follow the learning steps prompted on the screen.

Self-study
For some vehicles, the learning function can be completed by driving the vehicle self-learning.

OBD Re-learning
This function allows the diagnostic equipment to directly write the sensor ID to the TPMS module.
To perform the OBD re-learning function, first use the tire pressure tool to activate all four tire sensors. Then use the diagnostic equipment and its attached diagnostic connector, and follow the on-screen instructions to complete the re-learning operation.

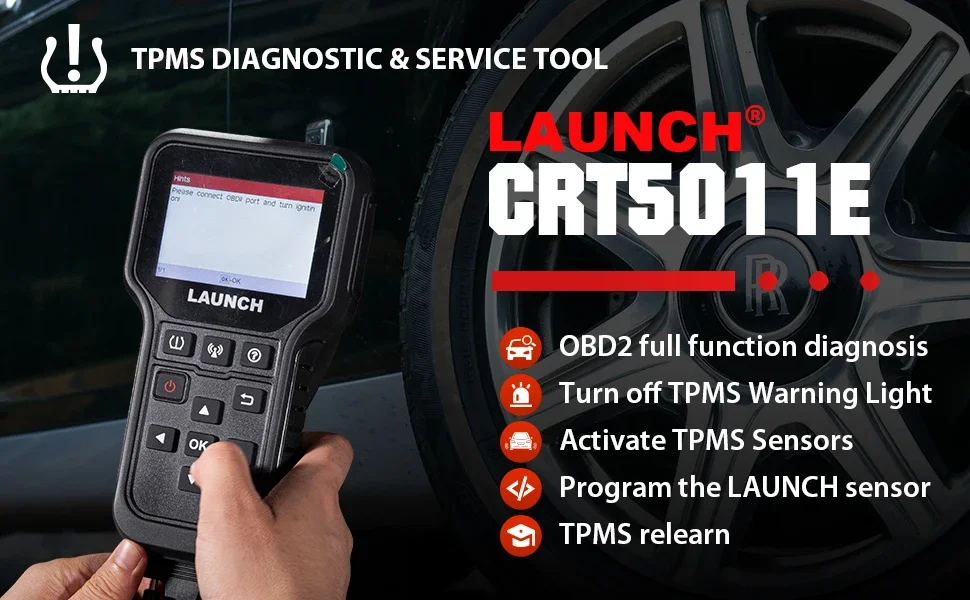

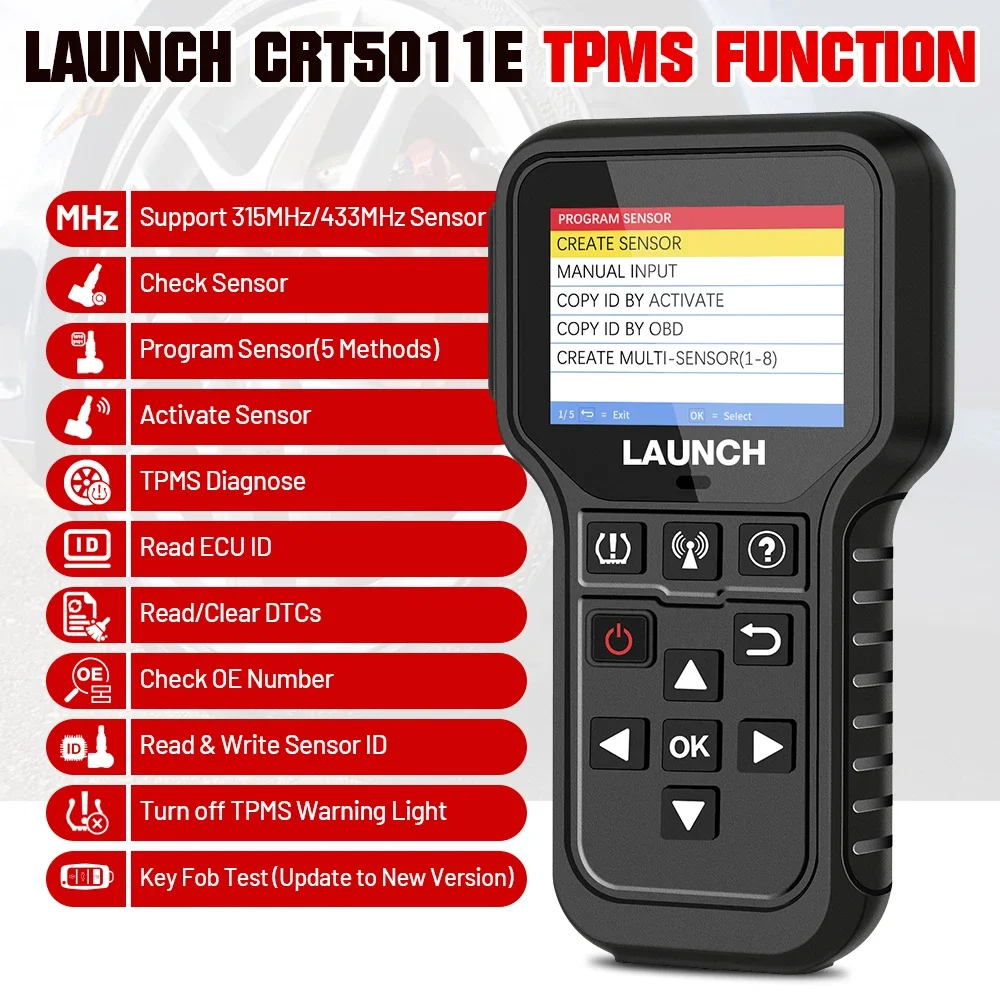

LAUNCH CRT5011E Provides the following functions:

TPMS:
• Trigger the TPMS sensor
• Program the TPMS sensor
• Provide TPMS relearning procedures and sensor OE number lookup

OBD diagnosis:
• Read dynamic data streams and MIL
• Read readiness status
• Freeze frame data
• Read DTCs
• Clear DTCs
• O2 sensor test
• On-board monitor test
• Read vehicle information

LAUNCH CRT5011E TPMS activtion & Diagnostic tool supports Full OBD diagnosis Function :

Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

On-Board Monitor Test

Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability

LAUNCH CRT5011E TPMS activtion & Diagnostic tool Supports help Function :

1. DLC Location information
Thiis option helps you to find the location of the vehicle's DLC

2. Tool information
Check the tool information , like boot version , serial number , register code etc .

3. Library Version
This option allows you to view the database relearn procedure version .

4. Software Update Guide
This option introduces brief operation steps on how to update the diagnostic software .

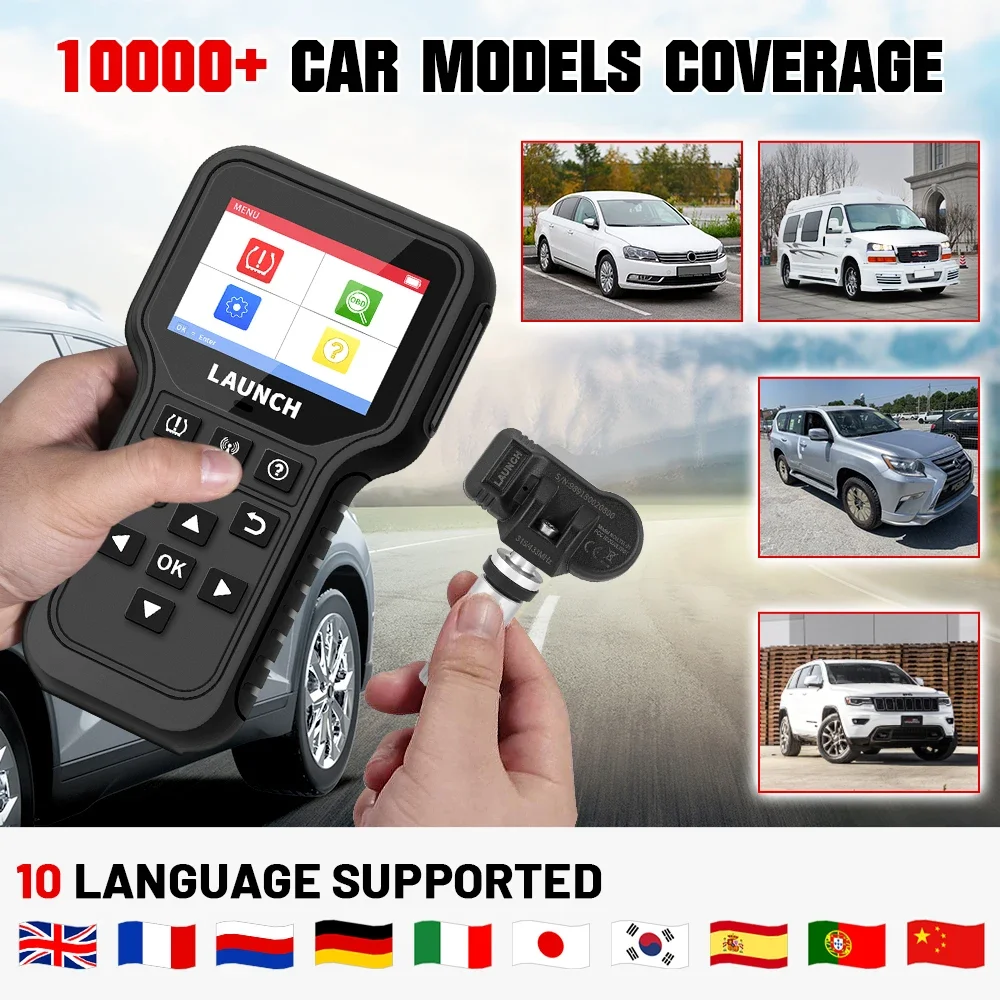

LAUNCH CRT5011E TPMS Tool Supports Car List :

For ABARTH,for ACURA ,for ALFA ROMEO, for ASTON-MARTIN ,for AUDI , for ALPINA , for BAIC
, for BAOJUN, for BENTLEY,for BMW,
for BORGWARD, for BUGATTI,for BUICK, for BYD, for CADILLAC, for CHANGAN, for CHERY, for CHEVROLET, for CHRYSLER, for CITROEN, for CMC, for DACIA, for DAEWOO, for DFM,
for DODGE, for FAW, for FERRARI, for GEELY, for GMC, for GREAT WALL, for HAVAL, for HAIMA, for HOLDEN, for HONDA, for HSV, for HUMMER, for HYUNDAI, for
INFINITI, for ISUZU, for JAC, for JAGUAR, for JEEP, for KIA, for LADA , for LAM BORGH-INI, for LANCIA, for LANDROVER, for LEXUS, for LIFAN, for LINCOLN, for LOTUS, for LUXGEN, for MAHINDRA, for MAN, for MASERATI,
for MAYBACH, for MAXUS, for MAZDA, for MCLAREN, for MERCEDES, for MG, for MINI, for MITSUBISHI, for NISSAN , for OPEL , for PAGANI, for PEUGEOT, For PORSCHE, for QOROS, for RENAULT,for ROLLSROYCE, for SAAB, for SCION, for SEAT, for SKODA, for SMART, for SSANGYONG,
for SUBARU, for SUZUKI, for SGMW, for TESLA, for SMART, for SSANGYONG, for SUBARU, TOYOTA, for TRAUM, for VAUXHALL, for VOLKSWA-GEN , for VOLVO, for ZOTYE,for FIAT, for FORD, for FOTON, for CHRYSLER, for GMC, for DFM, for CADILLAC, for CHERY, for CHEVROLET , for DODGE,for FAW, for FERRARI, for JAC ,for JAGURE

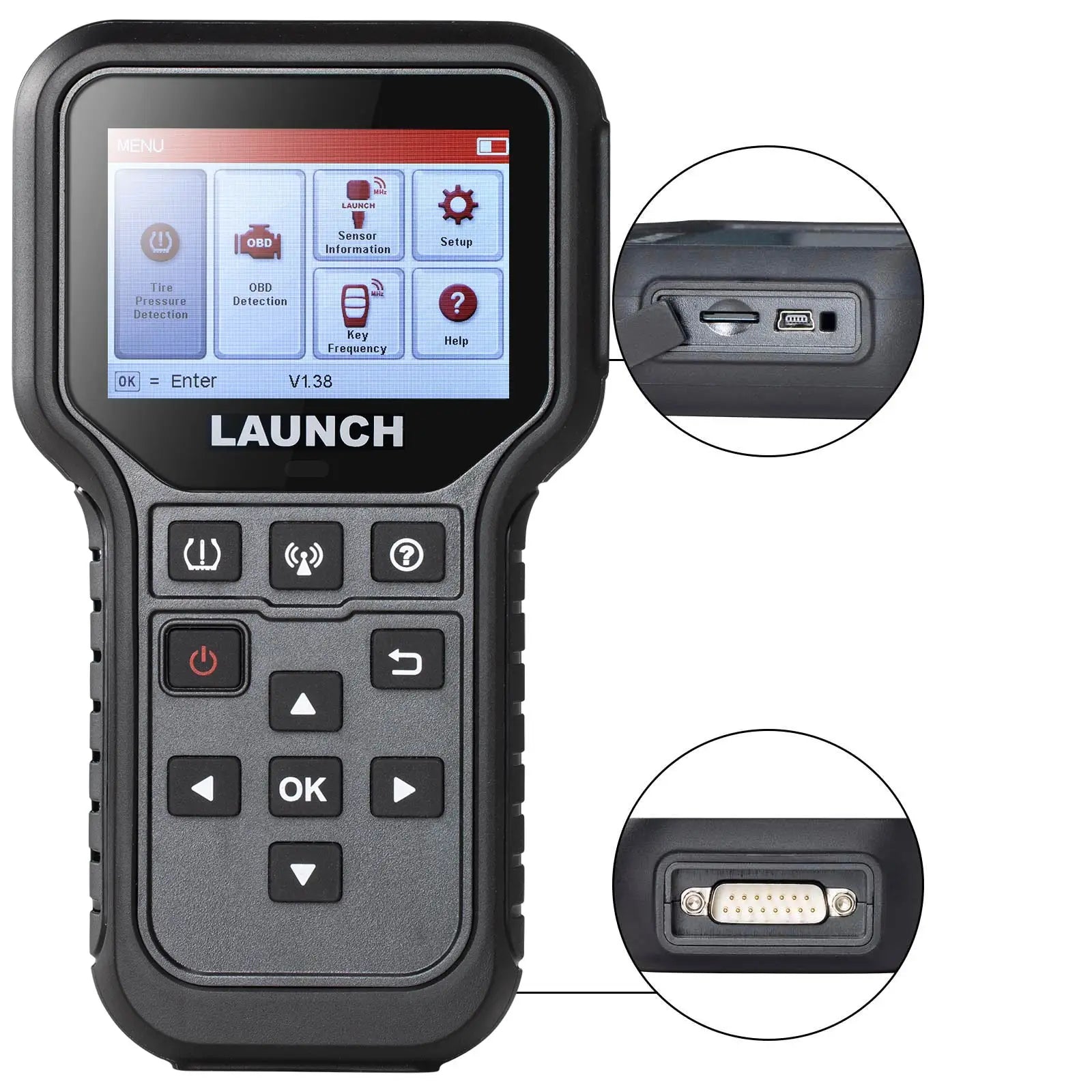

Specifications

• Screen: 3.5” LCD display with a resolution of 320*480 pixels
• Input voltage: 9 ~ 18V via OBD diagnostic port / 5V via USB cable
• Operating temperature: 32°F~122°F / 0°C~50°C
• Storage temperature: -4°F~158°F / -20°C ~70°C @ RH60%
• Size: 200*115*35 mm
• Weight: <450g

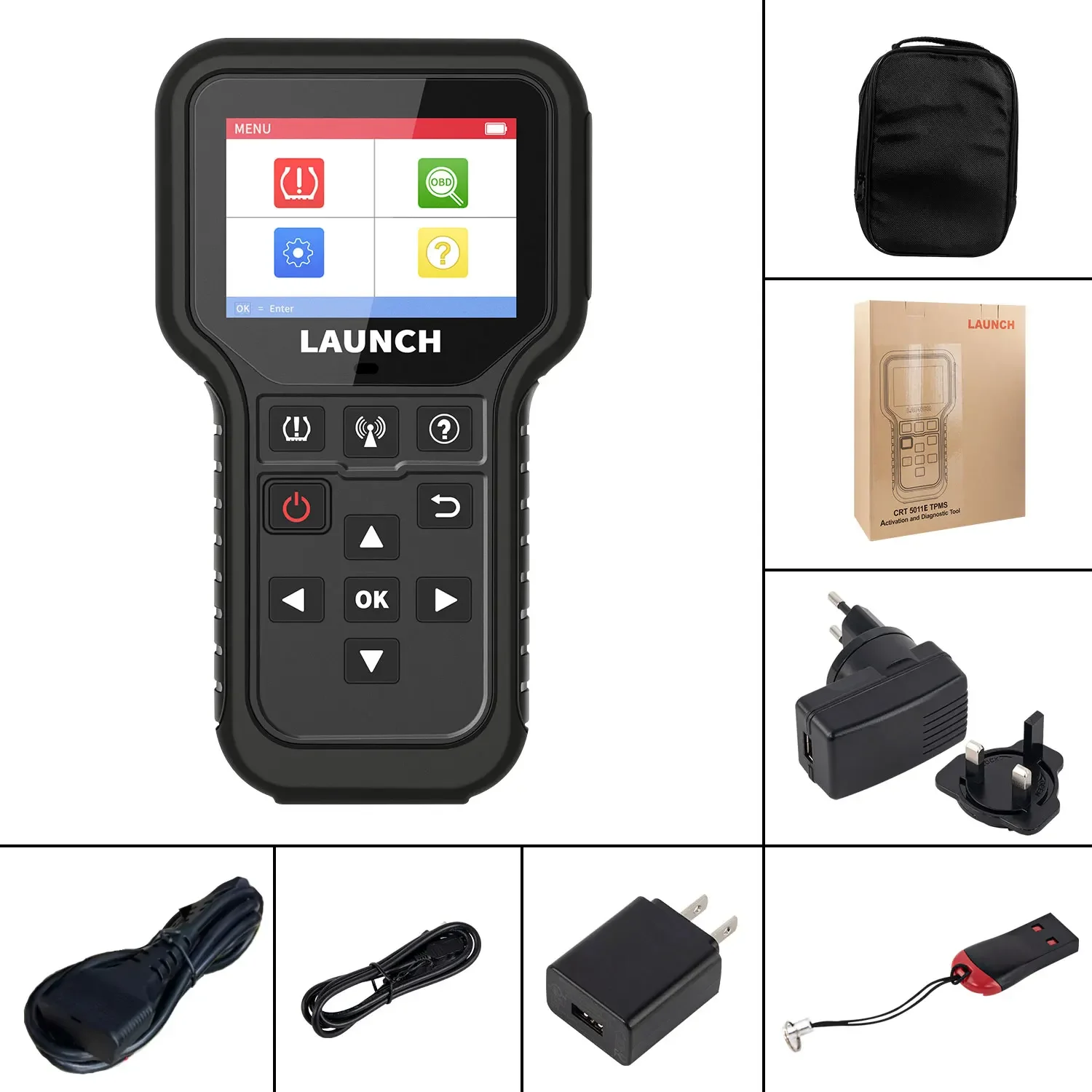

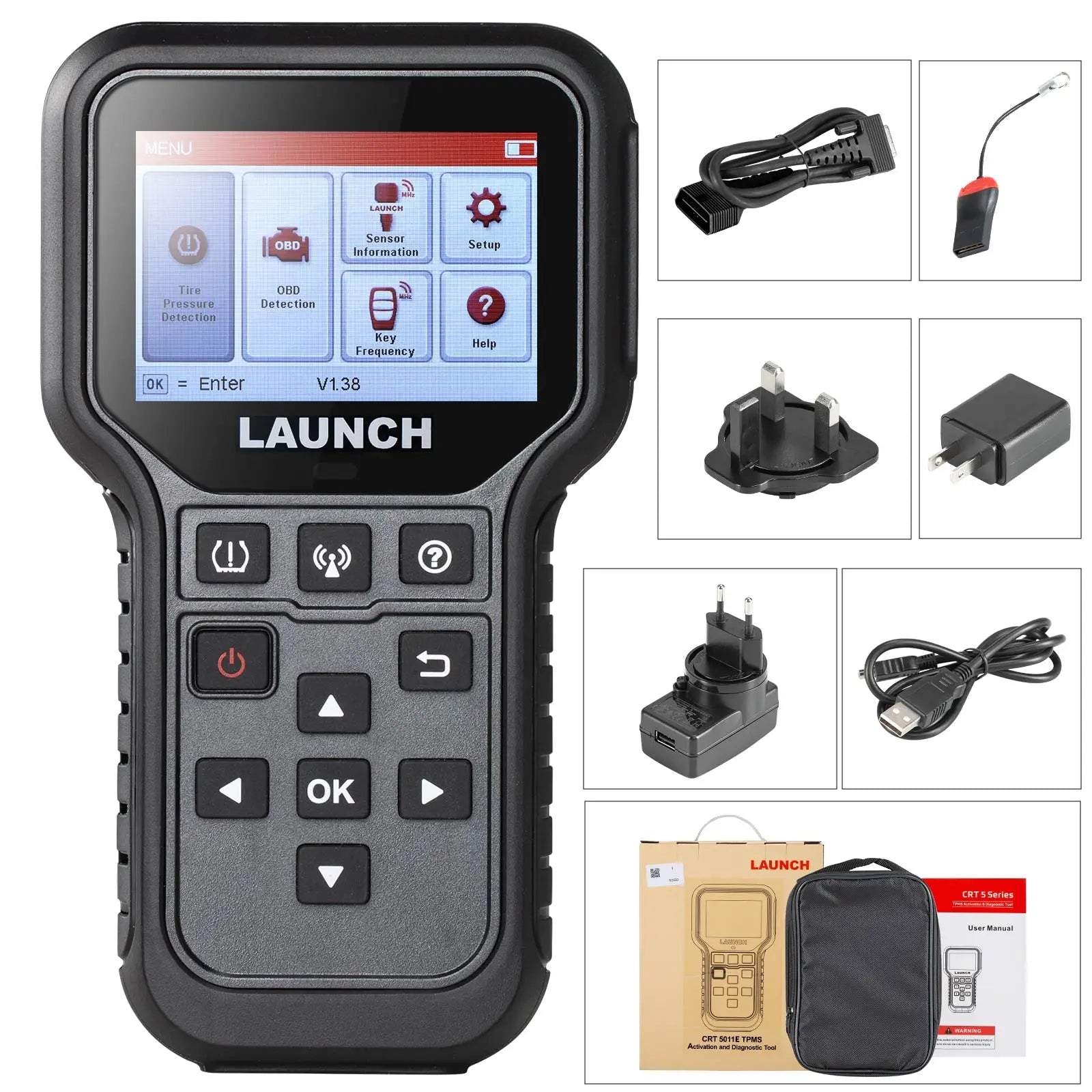

Accessories

The following accessory items are only for reference. For different destinations, the accessories may vary.

1) TPMS Activation & Diagnostic Tool
2) Diagnostic Cable
3) Memory Card
4) Memory Card Adaptor
5) Charging Cable & Power Adaptor
6) User Manual
7) Sensors (Optional)

Register & Update

Moreover, it can be updated via the memory card to keep synchronized with the latest available software version.

Note: This tool may automatically reset while being disturbed by strong static electricity.
THIS IS A NORMAL REACTION.

Warranty

LAUNCH electronic product is warranted against defects in materials and workmanship for one year (12 months) from date of delivery to the user.

This warranty does not cover any part that has been abused, altered, used for a purpose other than for which it was intended, or used in a manner inconsistent with instructions regarding use.

The exclusive remedy for any automotive meter found to be defective is repair or replacement, and LAUNCH shall not be liable for any consequential or incidental damages.

Final determination of defects shall be made by LAUNCH in accordance with procedures established by LAUNCH. No agent, employee, or representative of LAUNCH has any authority to bind LAUNCH to any affirmation, representation,
or warranty concerning LAUNCH automotive meters, except as stated herein.

Customer Service

If you have any questions on the operation of the unit, please contact local dealer, or online customer service
