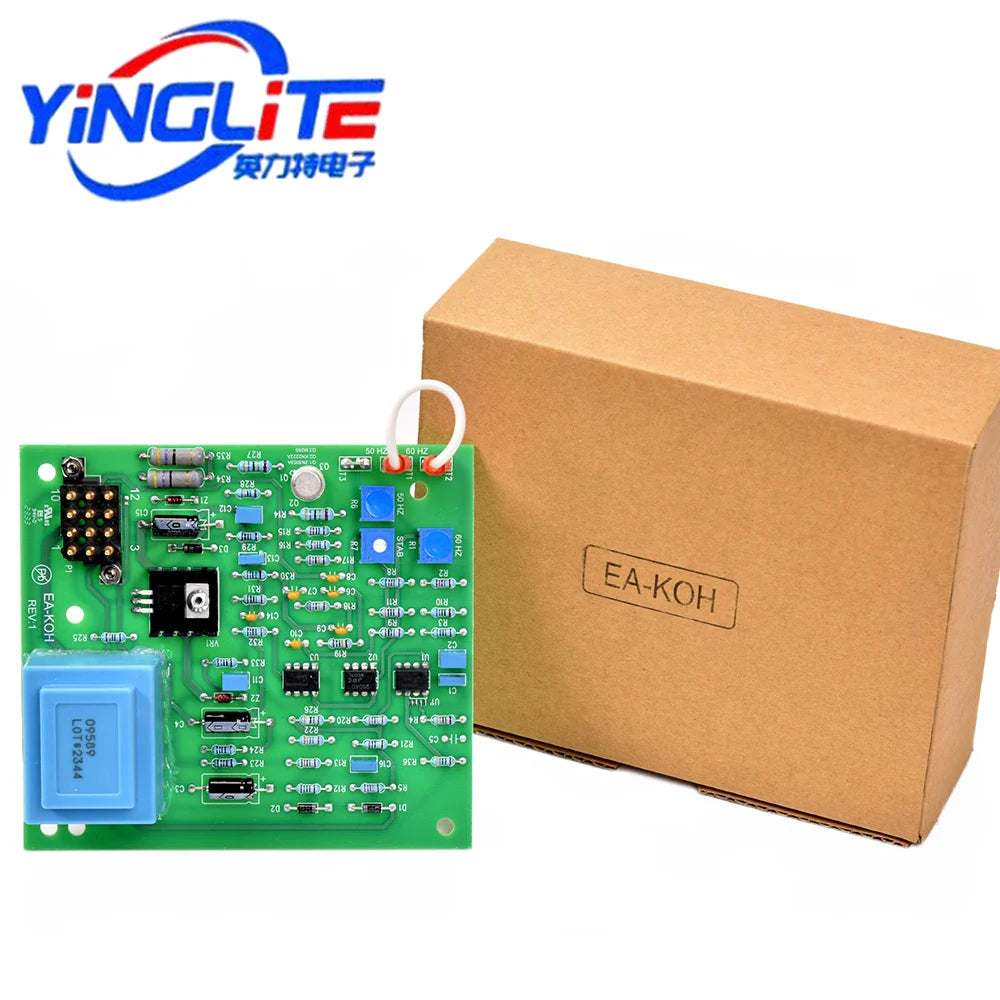

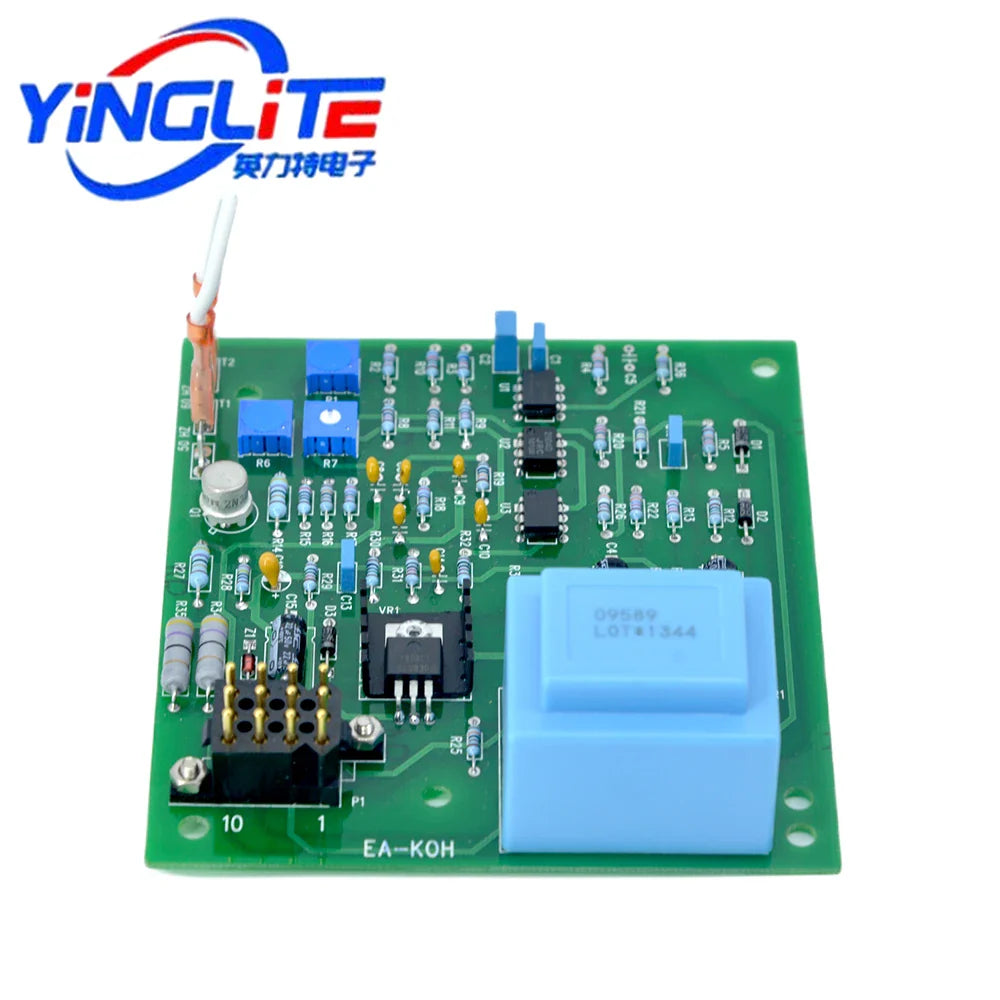

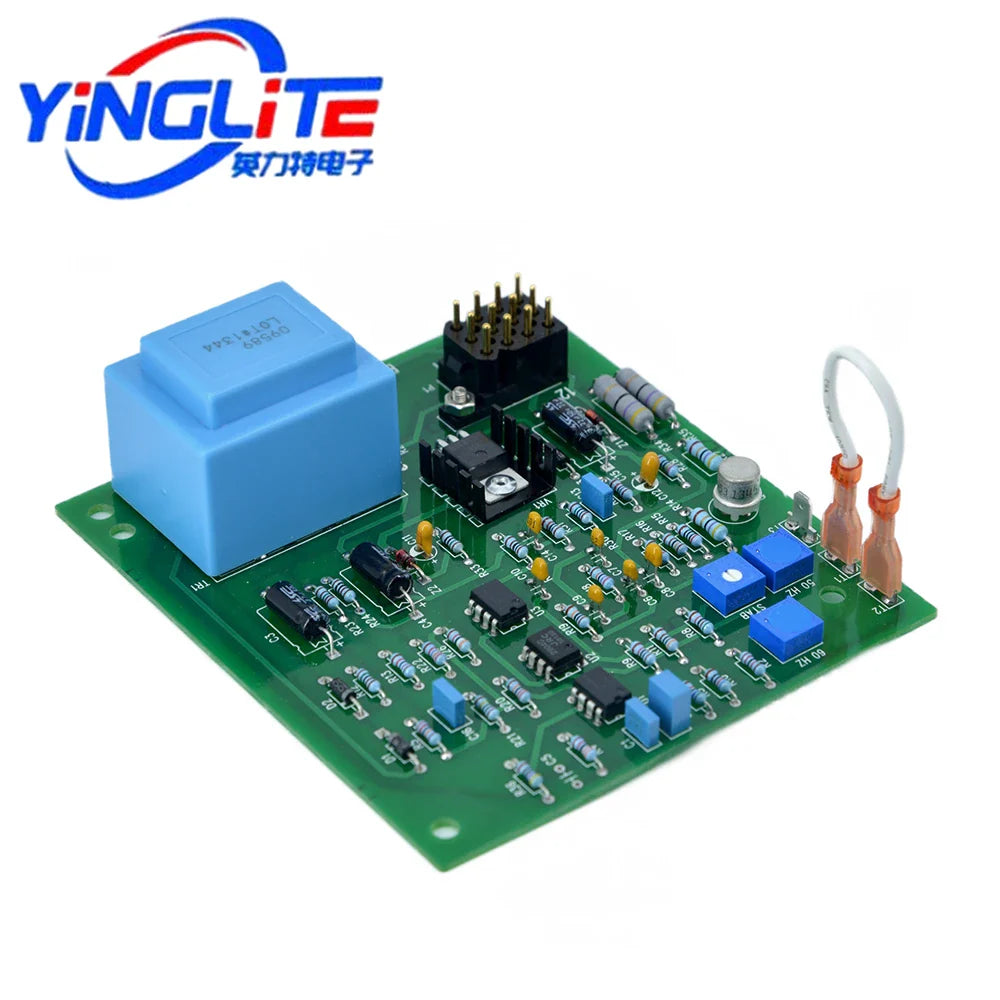

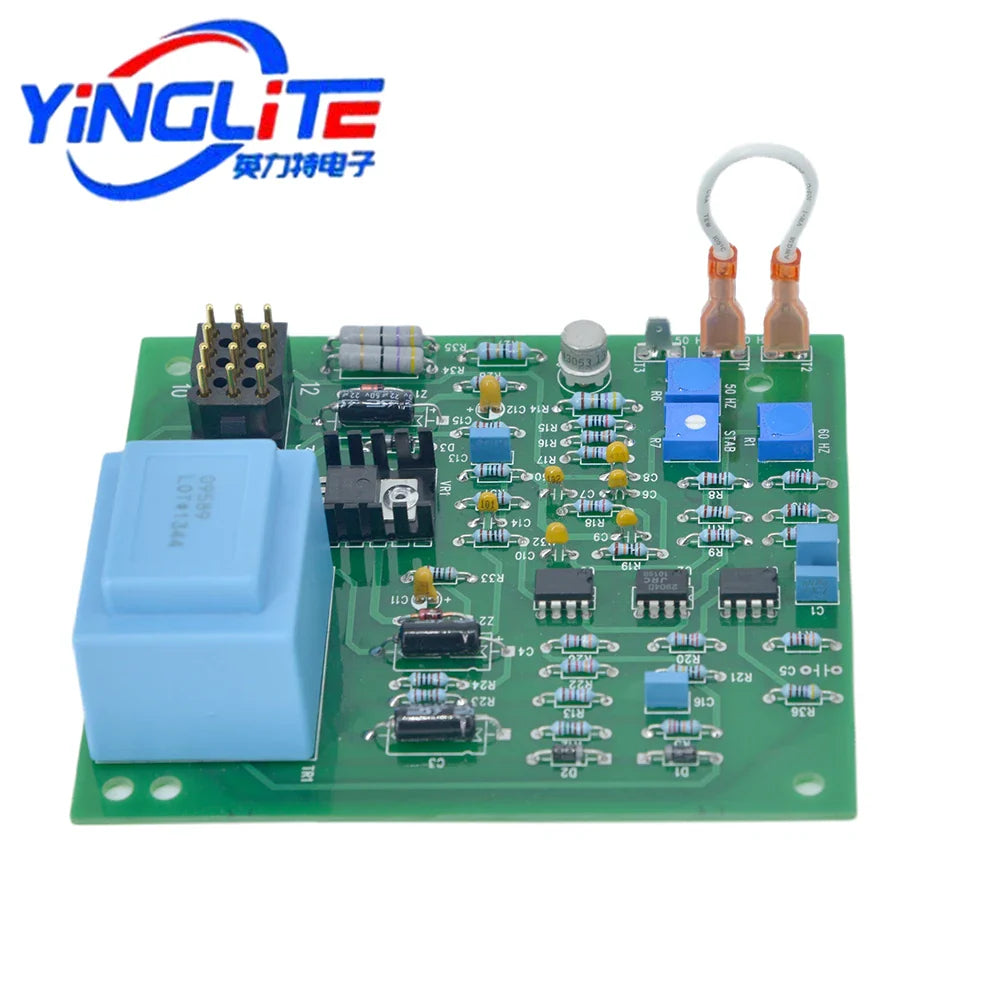

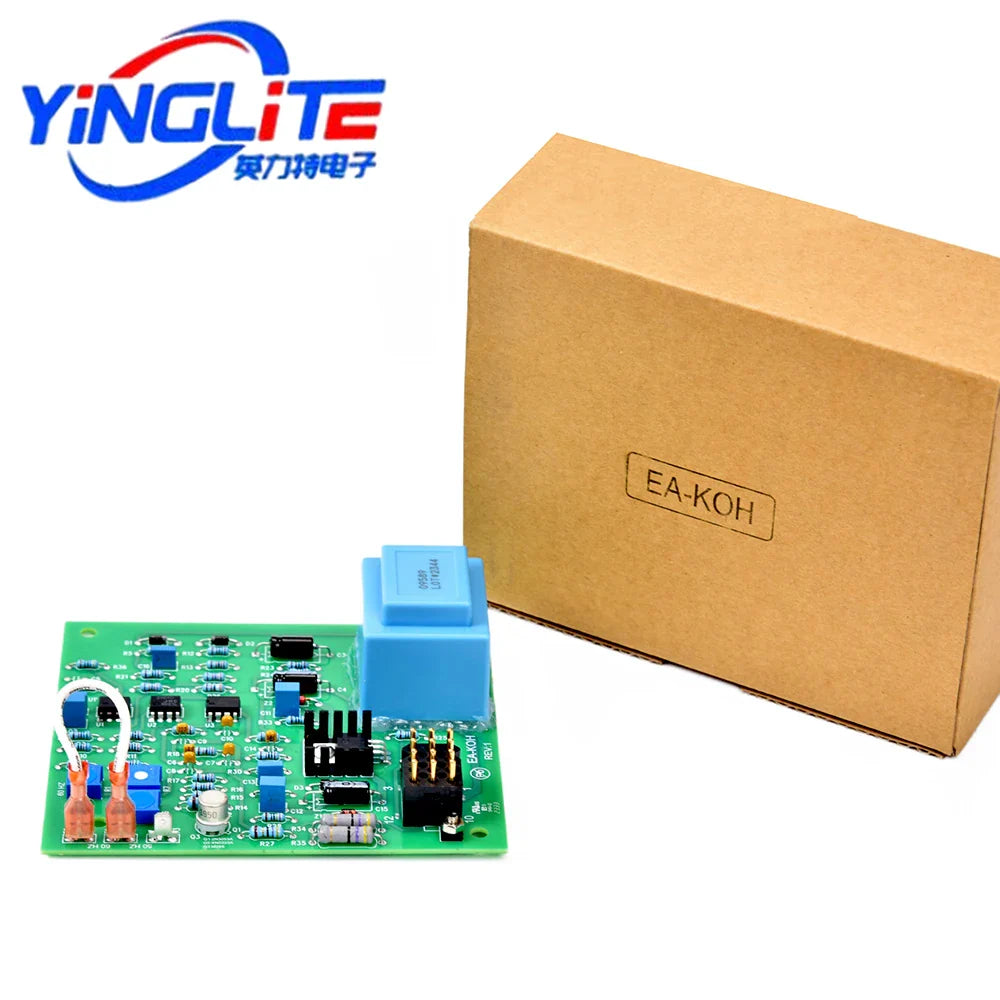

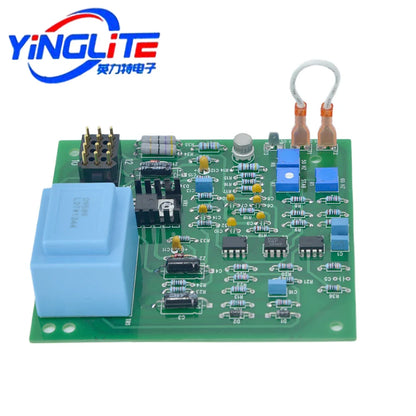

KUTA EA-KOH AVR Automatic Voltage Regulator Original Parts

$261.00

~~$482.00~~ $261.00

Sale Sold out

Shipping calculated at checkout.

color EA-KOH

Description:

EA-KOH self excited genset voltage regulator is a compatible replacement for Kohler infrared photo coupler C-255670 regulator.

Features

Voltage Regulation < ± 1%
Drive Infrared LED to Control Excitation
50/60 Hz Optional
Under Frequency Protection
Adjustable Stability
External Voltage Trimmer Applicable

Sensing Input	Voltage 220 VAC 1 phase 2 wire Frequency 50/60 Hz select by jumper
Power Input	Voltage 10~26 VDC
Output	Current 20 Amp
Volts Regulation	< ±1% (with 4% engine governing)
External Volts Adjustment	±10% with 1 K Ohm 1 watt trimmer
Unit Power Dissipation	Max. 2 watt
Thermal Drift	0.05% per °C change in AVR ambient
Under Frequency Protection (Factory Setting)	60 Hz system presets knee point at 55 Hz 50 Hz system presets knee point at 45 Hz
Environment	Operating Temperature : -40~65 °C Storage Temperature : -40~80 °C Relative Humidity : Maximum 95% Vibration : 3.3G @ 100~2 KHz
AVR Controls Functions	STAB : Stability Adjustment
Dimensions	127.2 (L) x 141.5 (W) x 39.0 (H) mm
Weight	109g ±2%
