Intelligent Motion Sensor Stair Light Smart Controller Set

New arrival

Product description

Product Name: Stair Motion Sensor Switch
Voltage: DC12V / DC24V
Max current: 10A
Power: each step<15w total<240w (DC12V /120W; DC24V/ 240W Max)
Sensors: 2 PIR Sensoron both sides

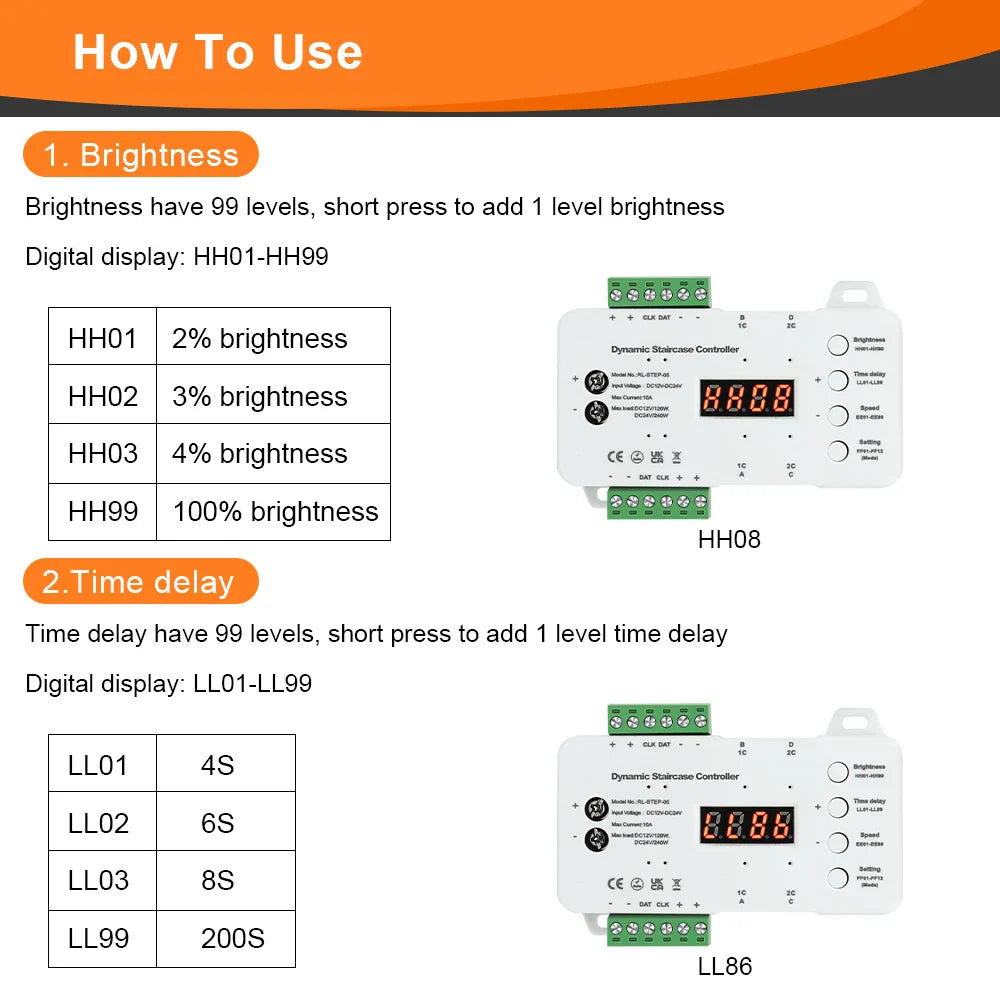

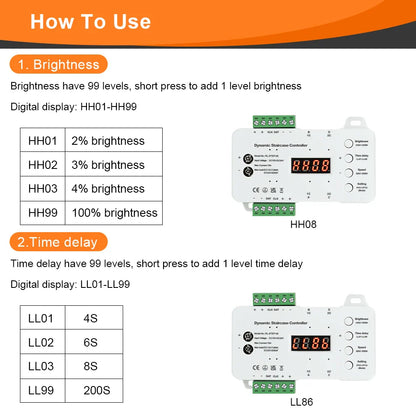

Special function: 4PIN main wire for Max 99 steps Delay Time/Speed / dimmable Lights and 12 Model

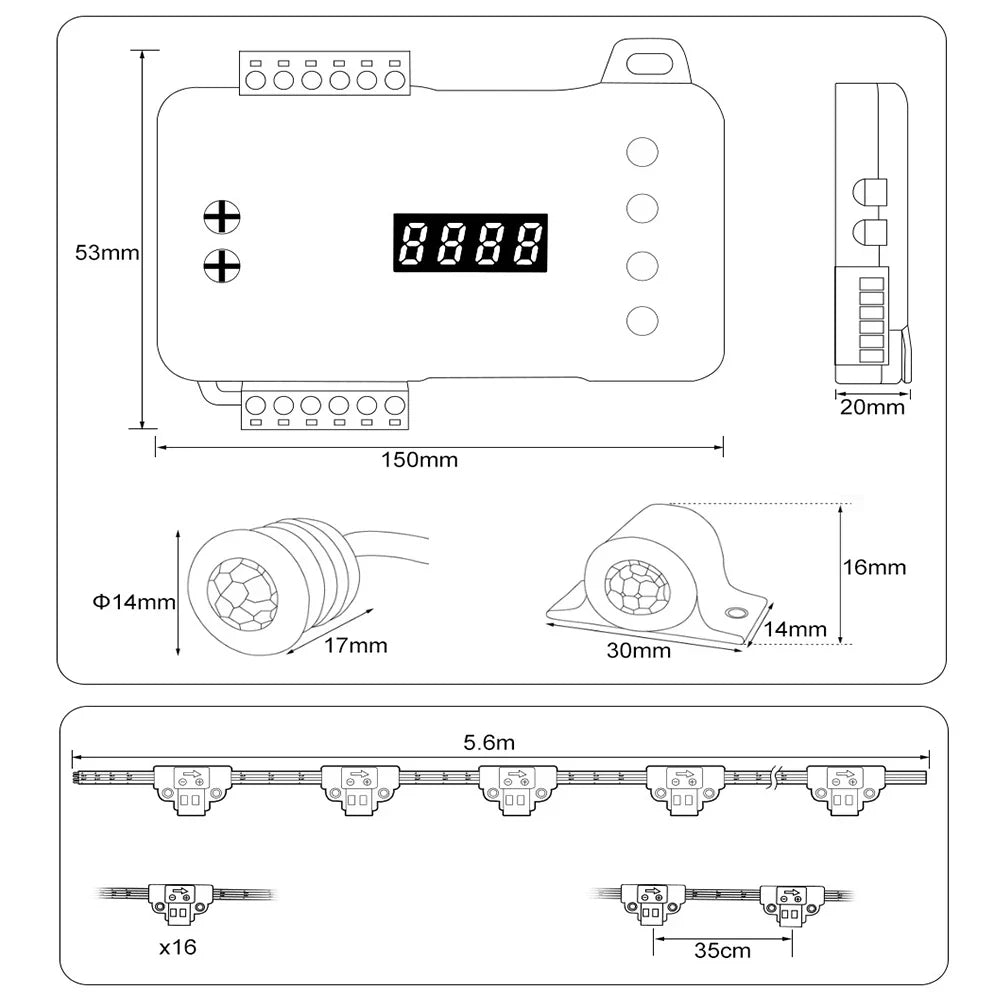

PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )
Features: there's a main line cable to conect all strips, no need complicate wiring
Advantage: can control the led strip light step by step

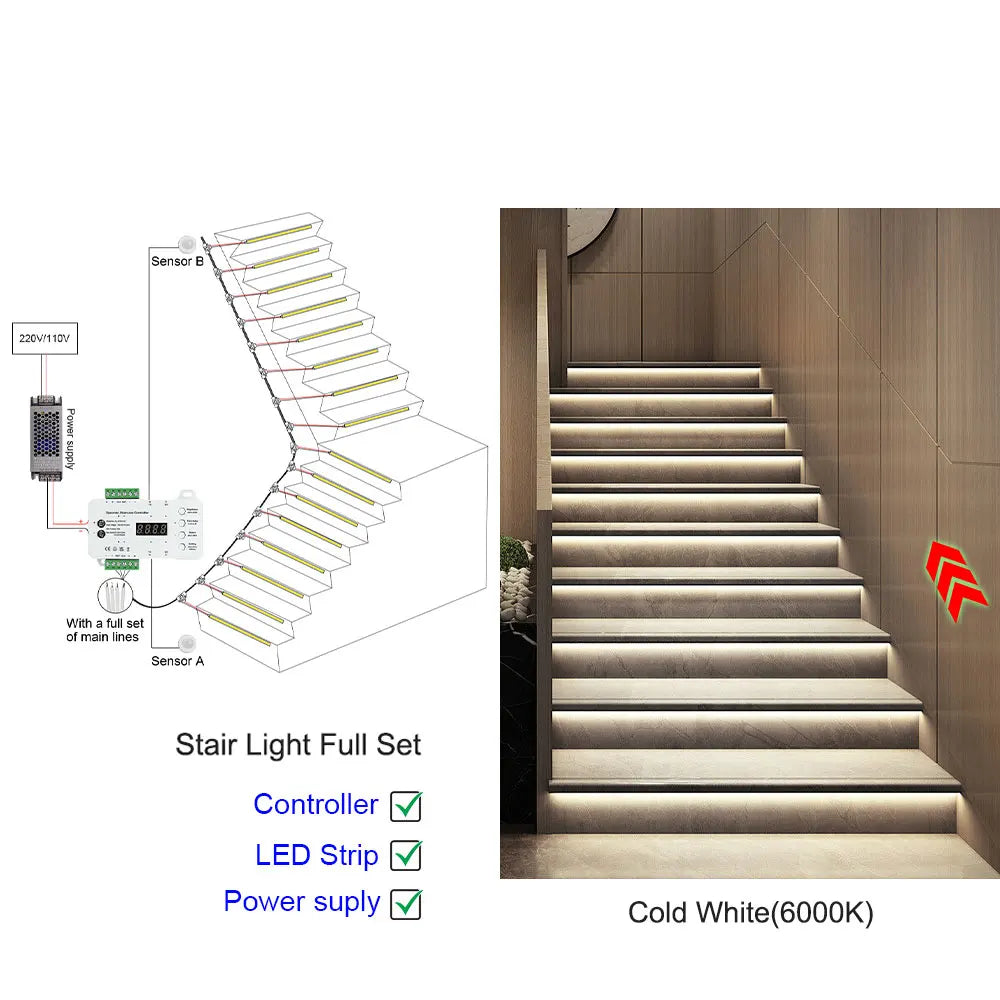

Package Included:

1x Controller
1x main line cable
1 batch of 1m COB strip
1x Power supply (no plug)
2x PIR sensor (1 meter)
1x Extension cable for Sensor
1 batch of tools and accessories

NOTE:

This controller does not have the function of lighting on both sides of the stairs.

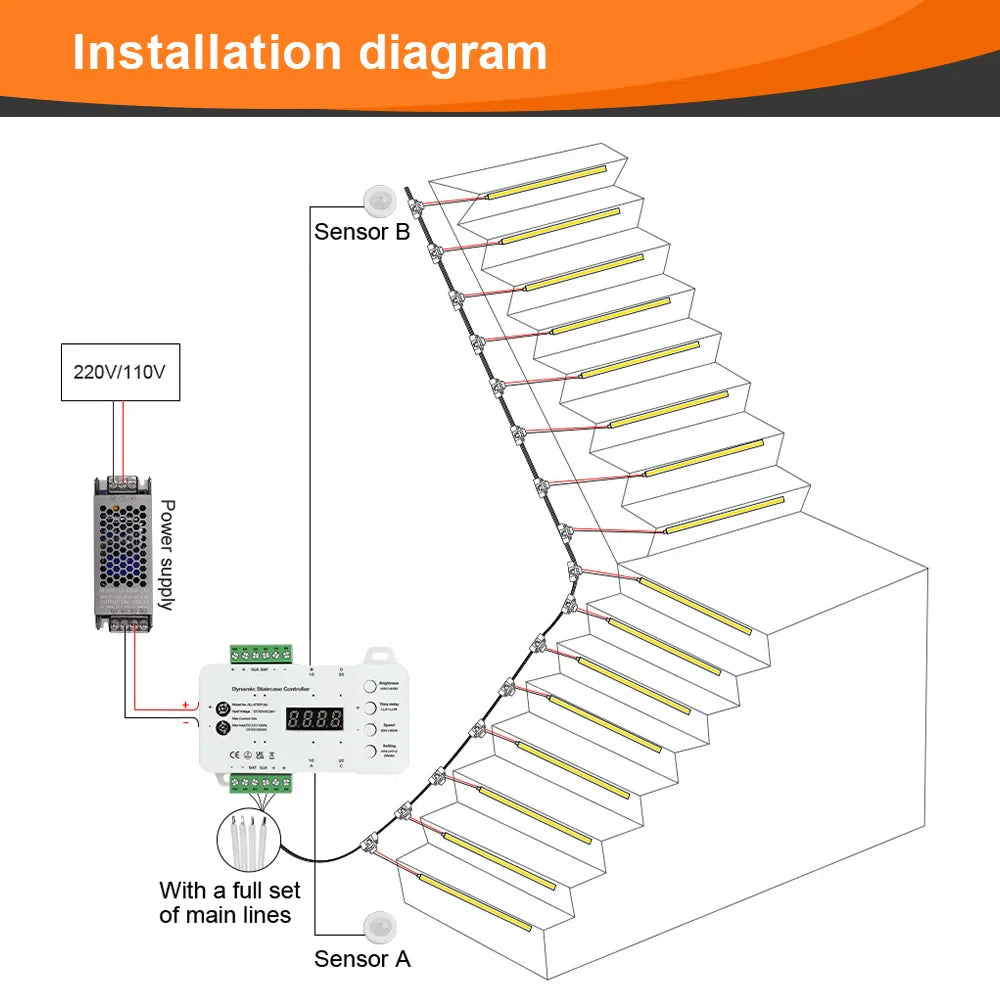

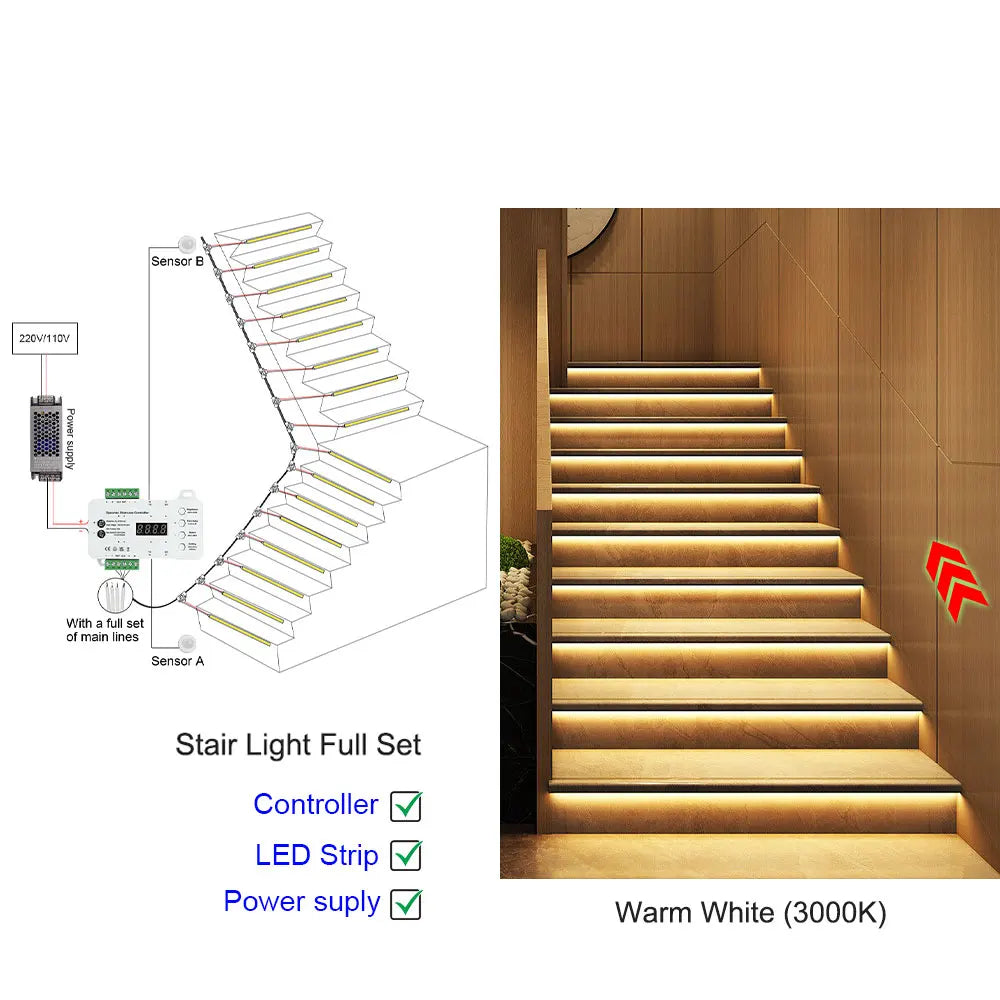

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.
4- Don't make the +/- pole reversed, or the controller can't work.
