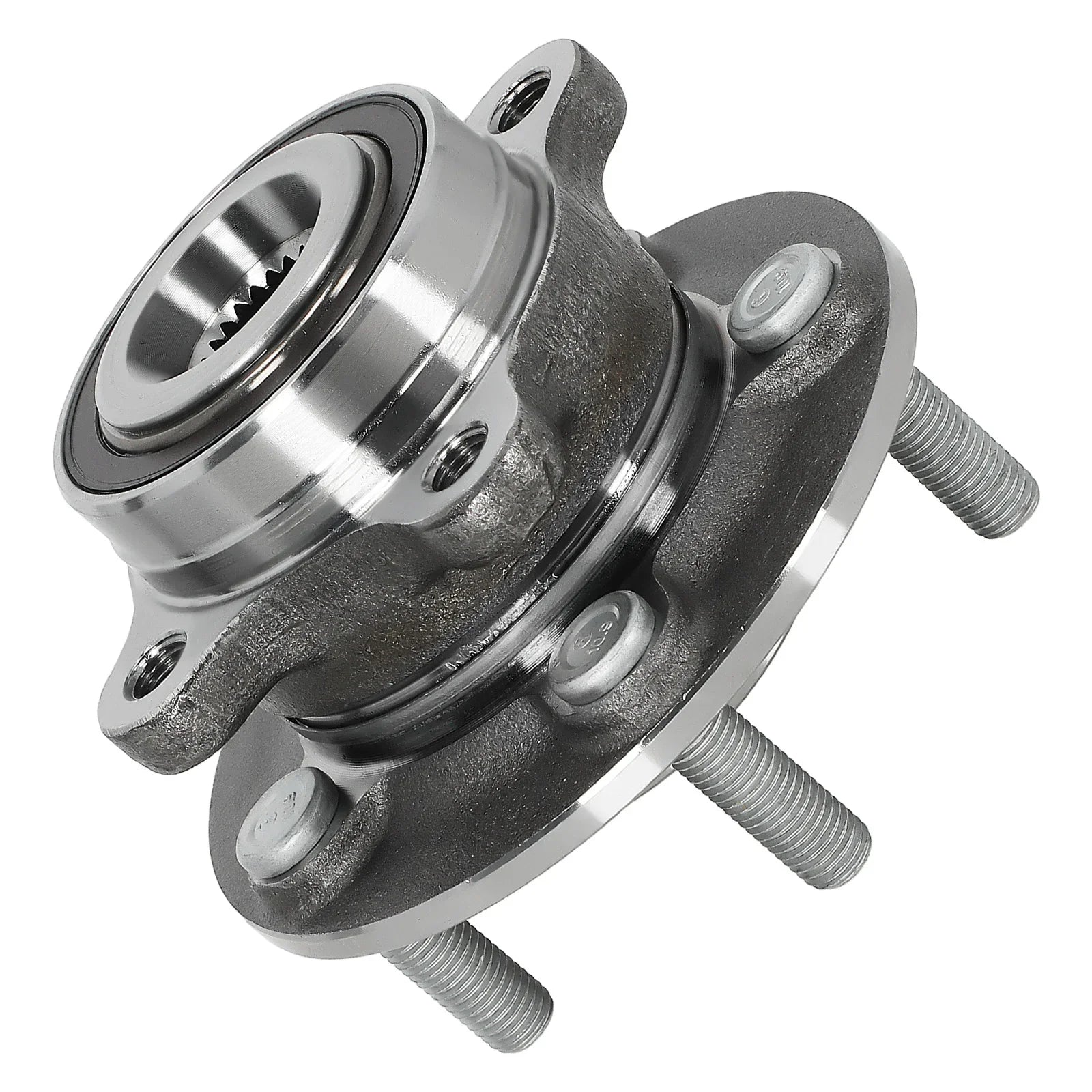

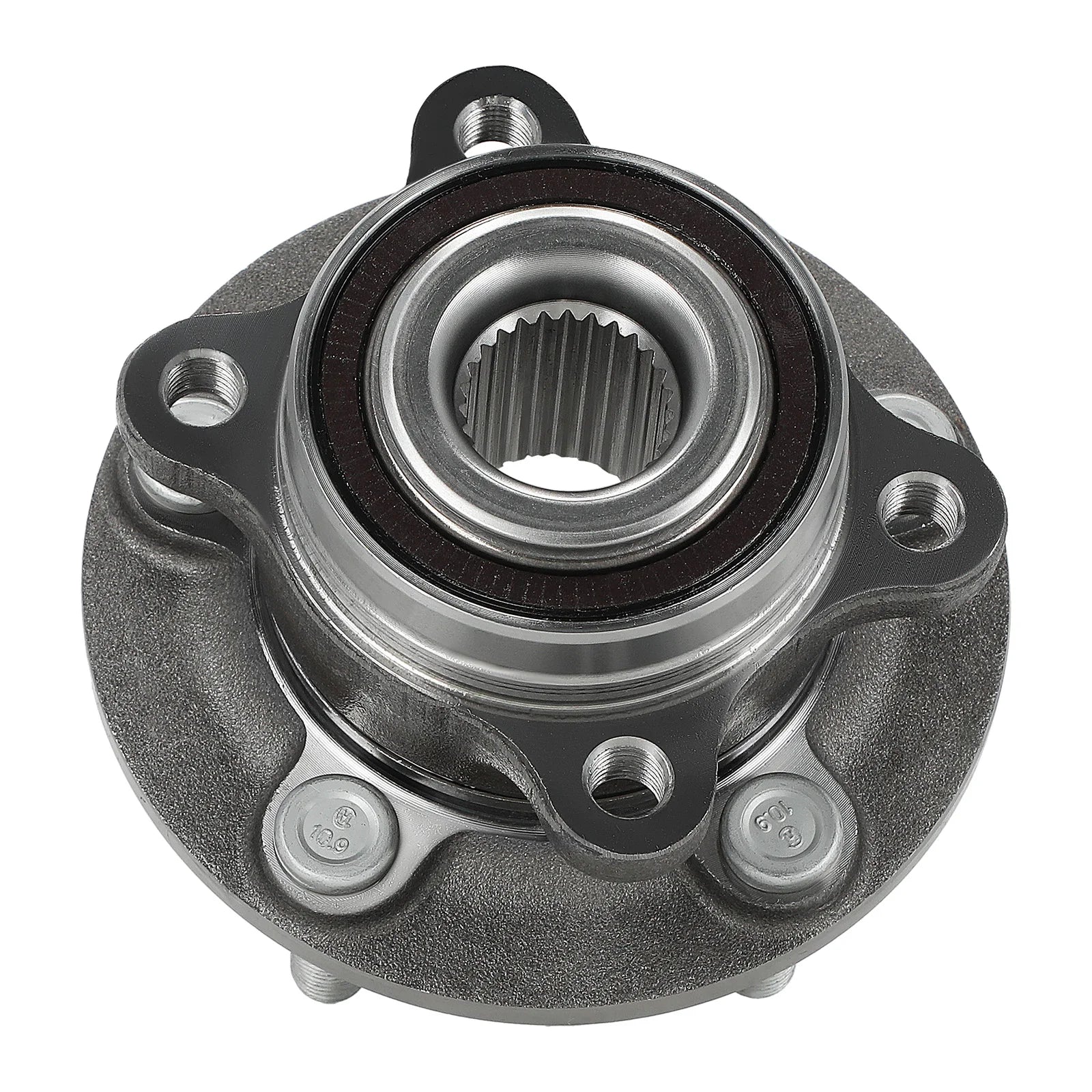

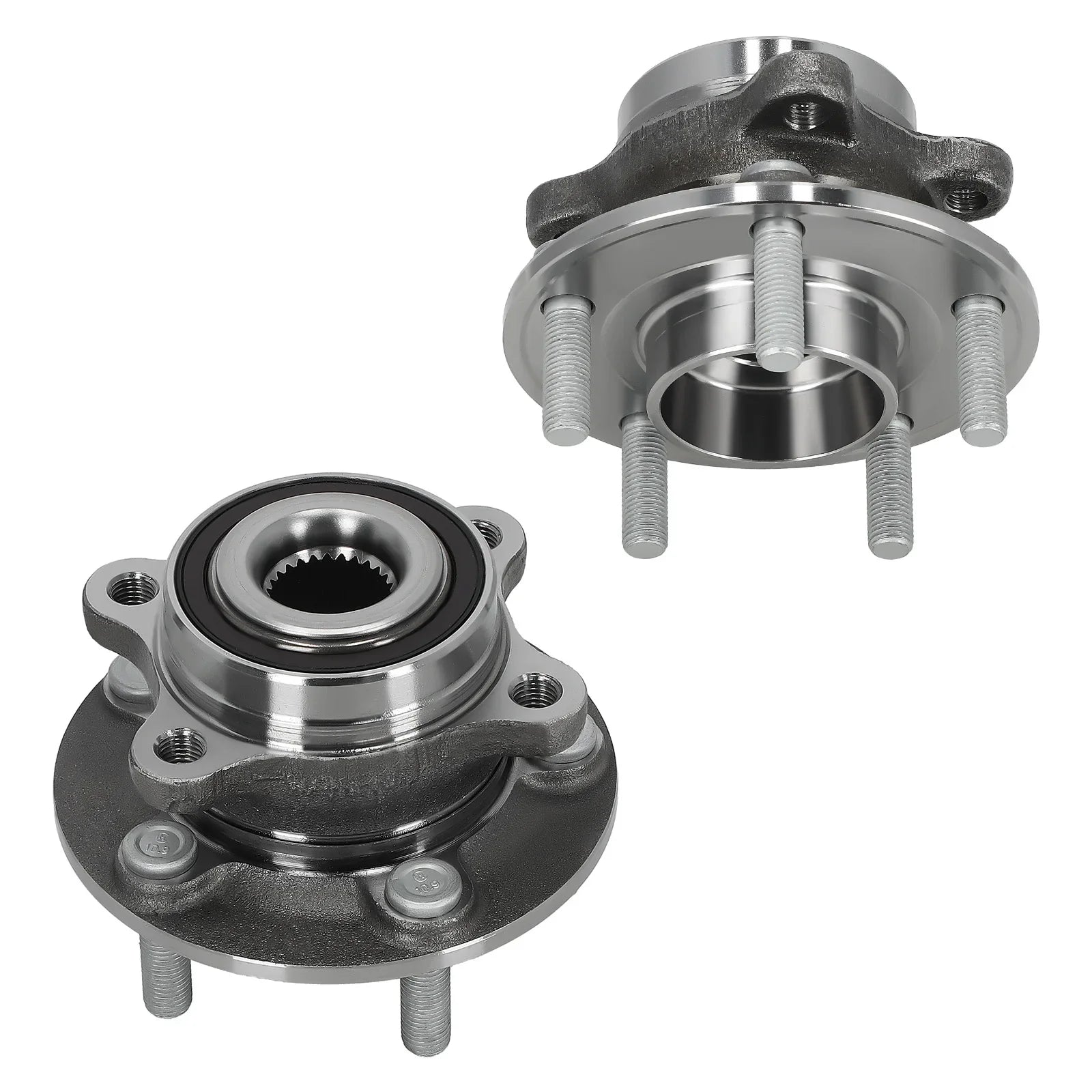

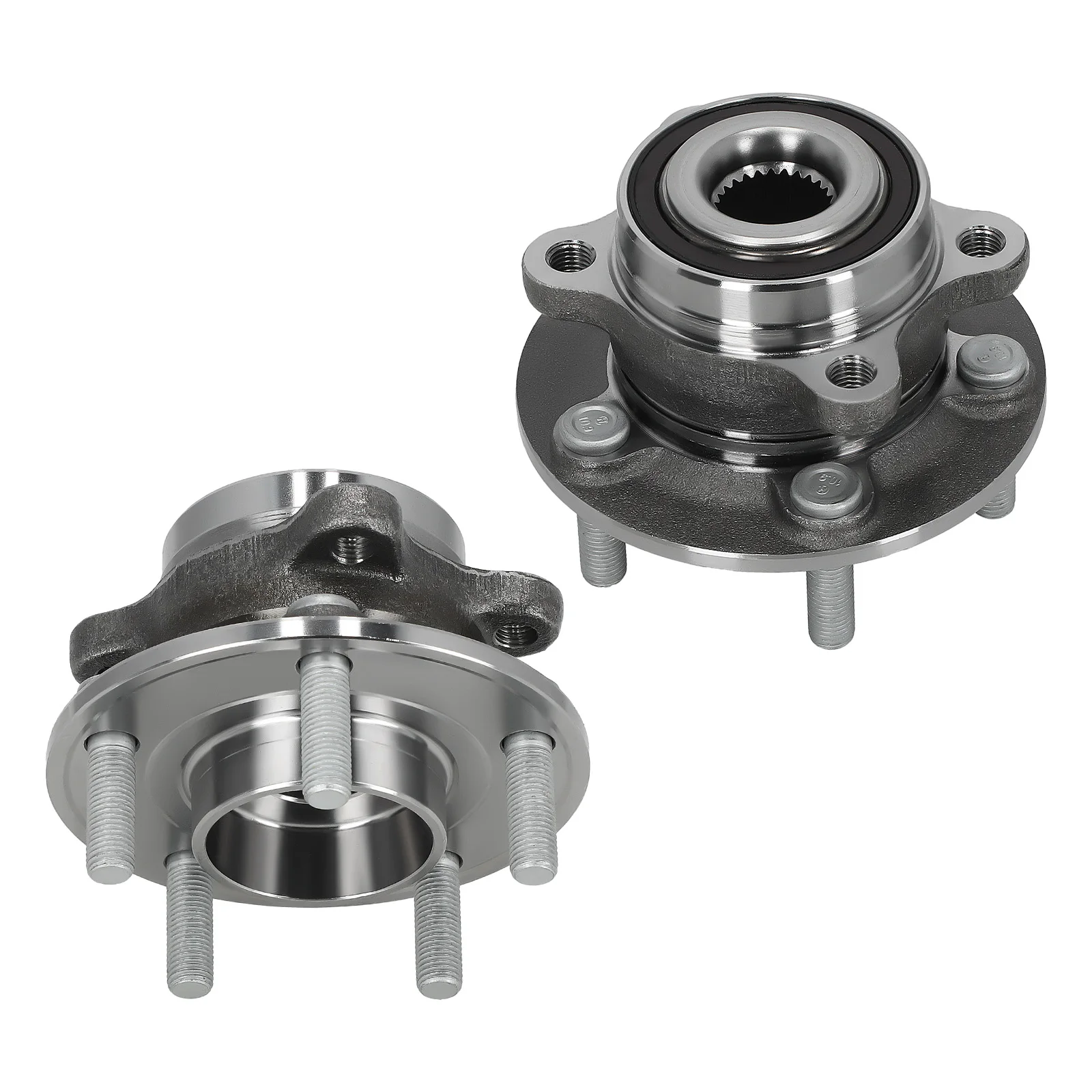

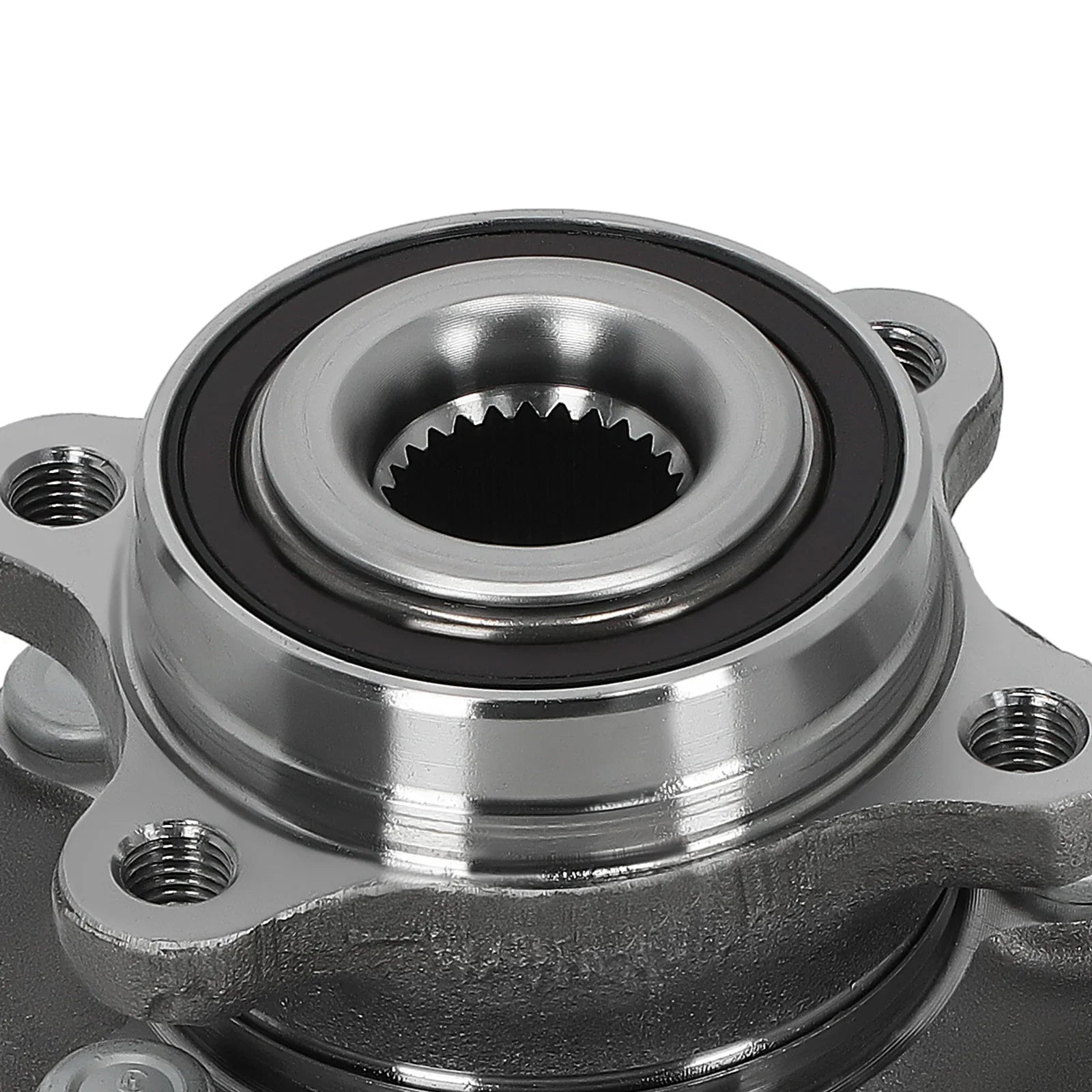

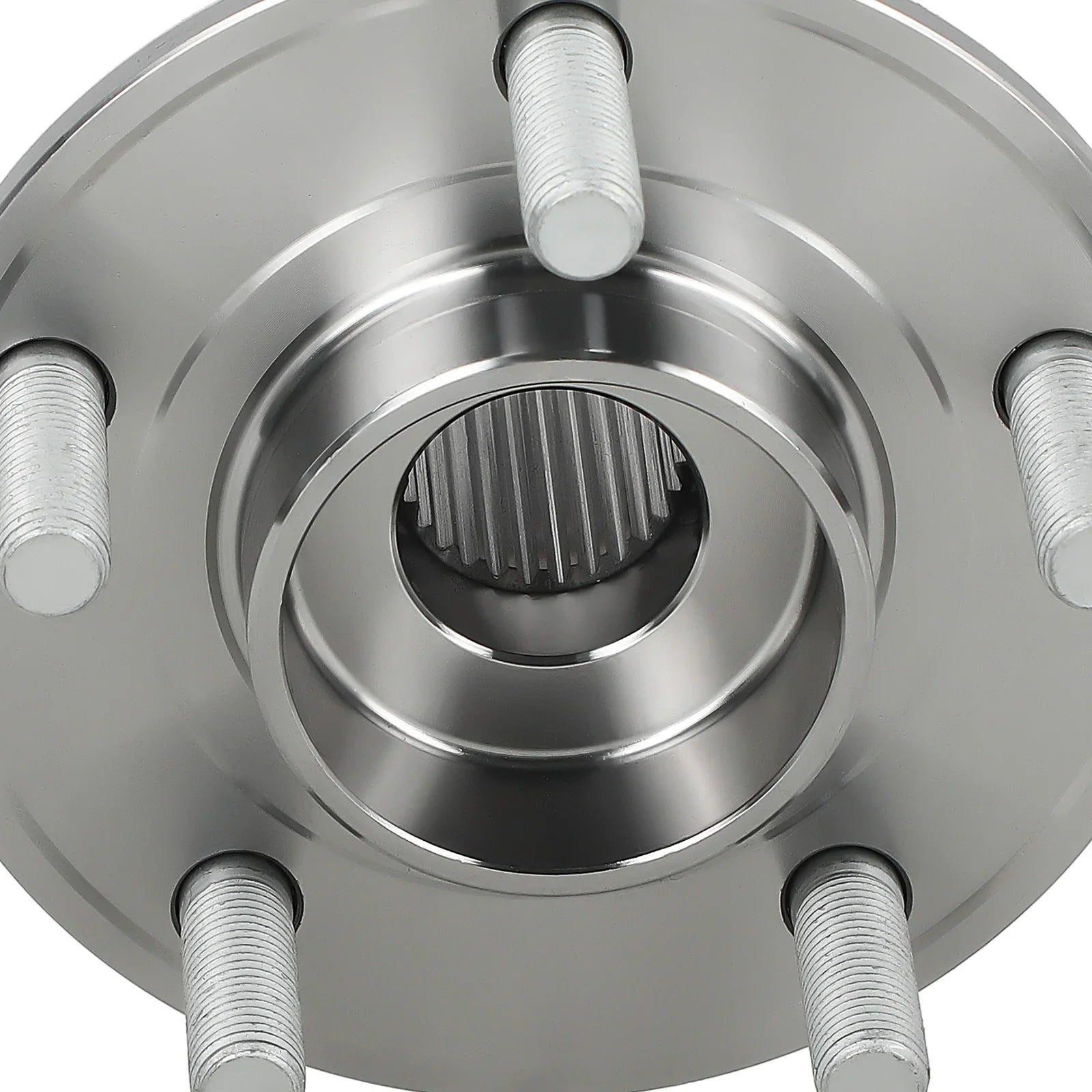

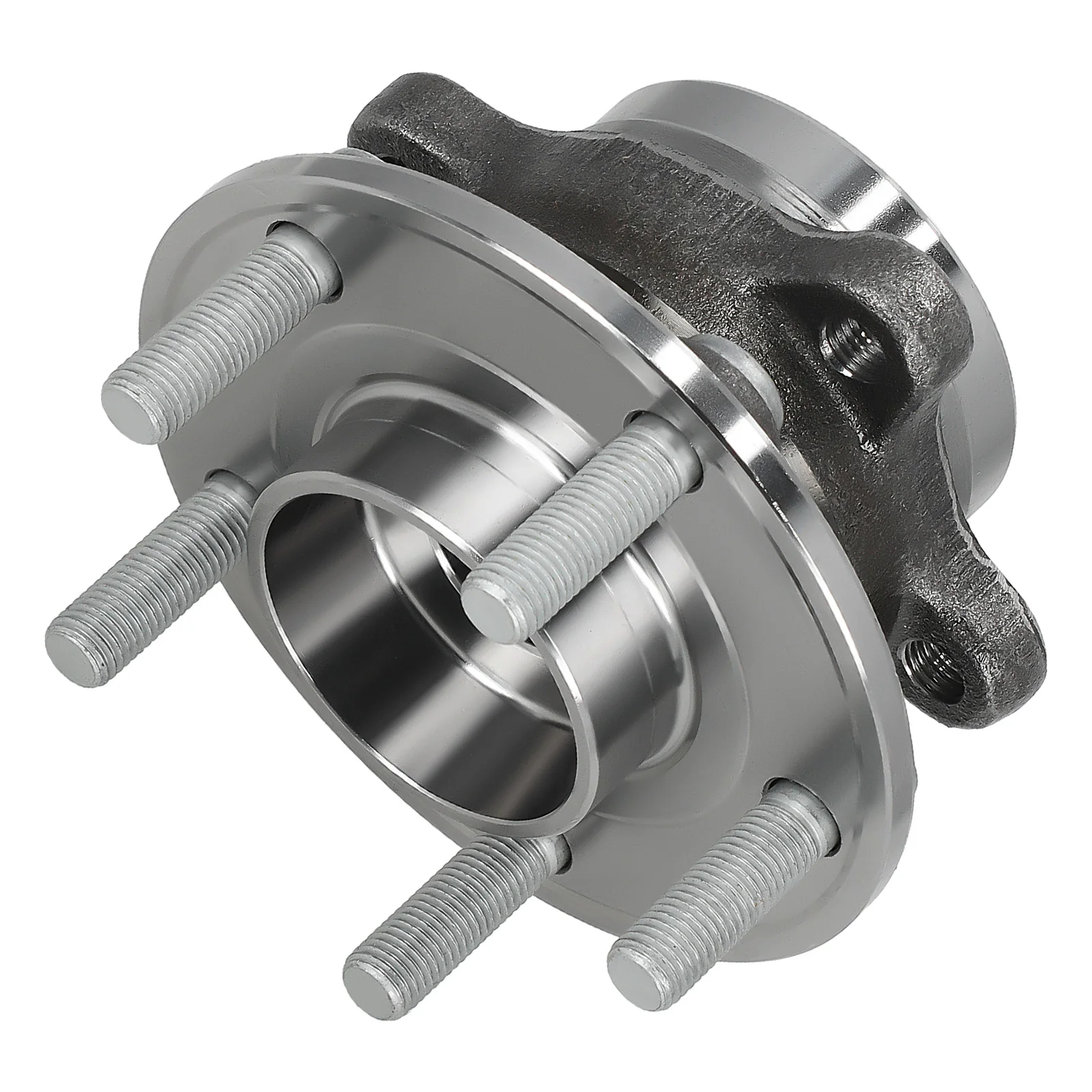

Front/Rear Wheel Bearing and Hub Assembly with ABS & 5-Lug For Ford Fusion 2013-2020 For Lincoln MKZ 2013-2014

Application

Front Position

For Ford Fusion 2013-2016 / 2020

For Ford Fusion 2017-2019 ( L4 2.5L 2.0L 1.5L)

For Lincoln MKZ 2013-2016

For Ford Police Responder Hybrid 2019-2020

For Ford SSV Plug-In Hybrid 2019-2020

Rear Position

For Ford Fusion 2014 (Build Before 01/17/2014)

For Ford Fusion 2013 / 2015-2016 / 2020 (AWD)

For Ford Fusion 2017-2019 (AWD; L4 2.5L 2.0L 1.5L)

For Lincoln MKZ 2013-2014

For Lincoln MKZ 2015-2016 (AWD)

OE/Part number

512498, HA590481, BR930913, BR930874, WA512498, WE61444, 1411-556411, SK512498, BHA51632, H512498, NT590481, WH590481

Specification

Location: Front or Rear Wheel

Material: Bearing Steel

ABS Type: Encoder

Drive Type: All Models

Anti Lock Brake Sensor Included: Yes

Bolt Circle Diameter (IN): 4.241

Bolt Circle Diameter (MM): 108

Brake Pilot Diameter (MM): 63.4

Flange Bolt Hole Quantity: 4

Flange Diameter (IN): 5.34

Flange Diameter (MM): 135.7

Flange Offset (IN): 1.886

Flange Offset (MM): 47.9

Flange Shape: Rectangular

Hub Pilot Diameter (MM): 79.9

Spline Quantity: 27

Wheel Pilot Diameter (MM): 63.2

Wheel Stud Quantity: 5

Wheel Stud Size(MM): M12 x 1.5

Package included

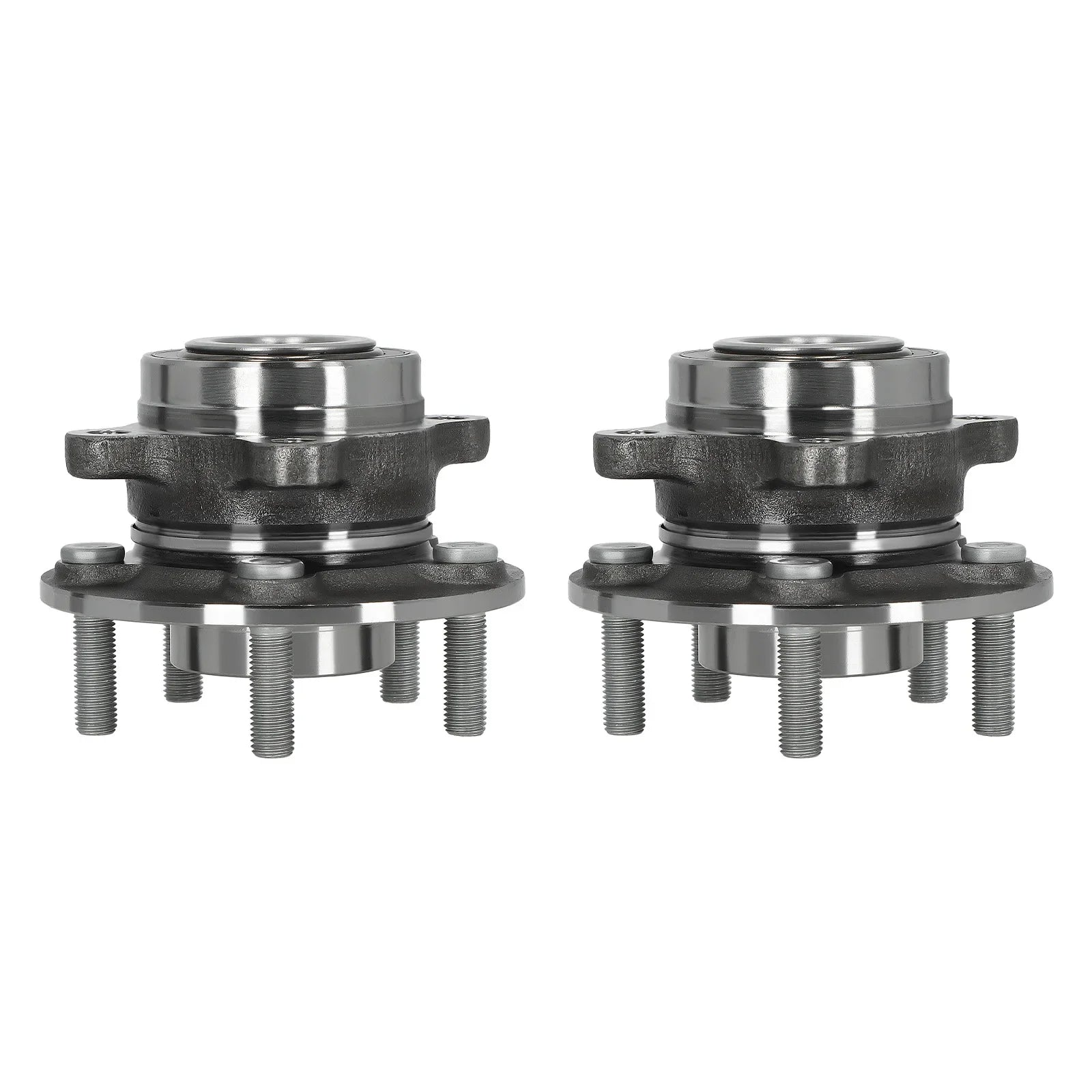

Front/Rear Wheel Hub and Bearing Assembly*2

(As pictures showed)

Feature

Restores Smooth Operation: Eliminates noise and vibrations caused by a worn-out wheel bearing, ensuring a comfortable and quiet driving experience.

Enhanced Safety: Ensures proper wheel bearing function for safe and stable driving.

Durable Construction: Manufactured with high-quality materials to withstand wear and tear, including robust housing and high-performance sealed bearings. This ensures long-lasting performance and reduces the risk of premature failure.

Direct OE Replacement: SKP Wheel Hubs are designed for a perfect fit, eliminating the need for modifications and ensuring a hassle-free installation process.

Roll-form design ensures consistent and optimal preload.

Premium quad-lip seal design ensures maximum protection from contamination.

Abrasion-resistant ABS cord (where applicable) is manufactured from a blended material that offers increased abrasion resistance and better protection from adverse conditions.

Wheel studs, where included, have a protective coating that helps prevent rust and corrosion, enabling easier removal and proper torqueing of wheel nuts.

Undergoes a heat treatment process that hardens the surface, ensuring high temperature resistance and durability.

Fitment and performance are ensured by rigorous testing, measurements and inspection of materials and components.
