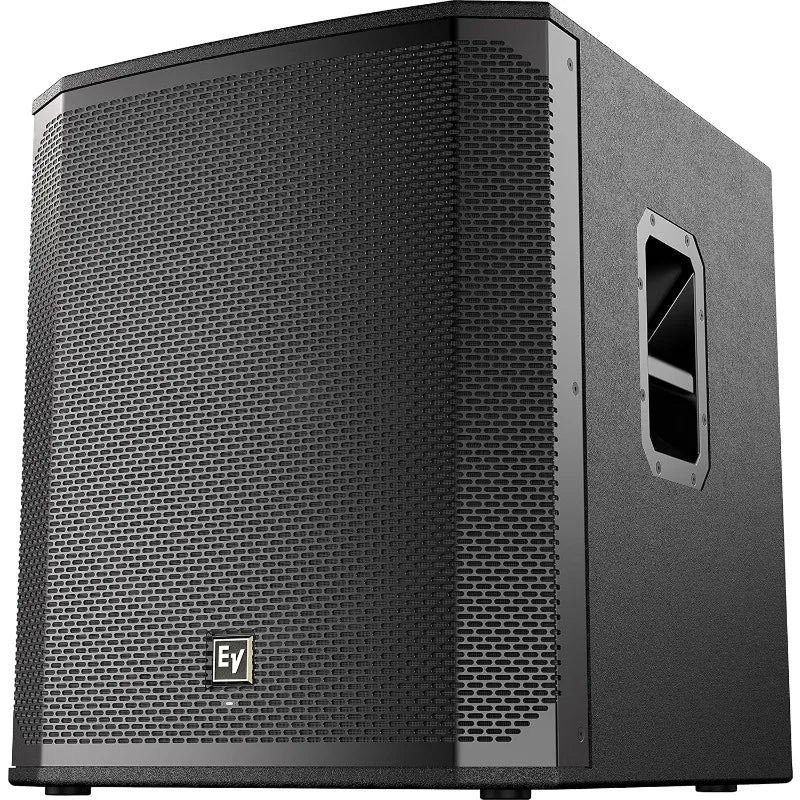

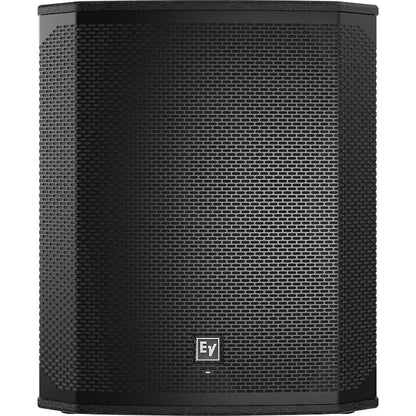

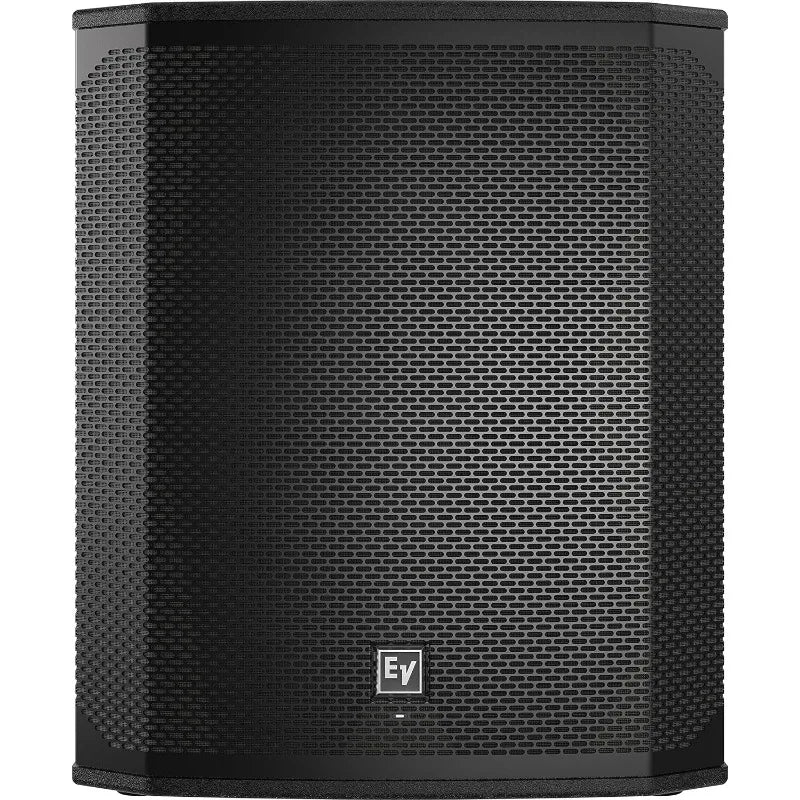

ELX200-18SP 18" 1200W Powered Subwoofer

ELX200-18SP 18" 1200W Powered Subwoofer

About this item

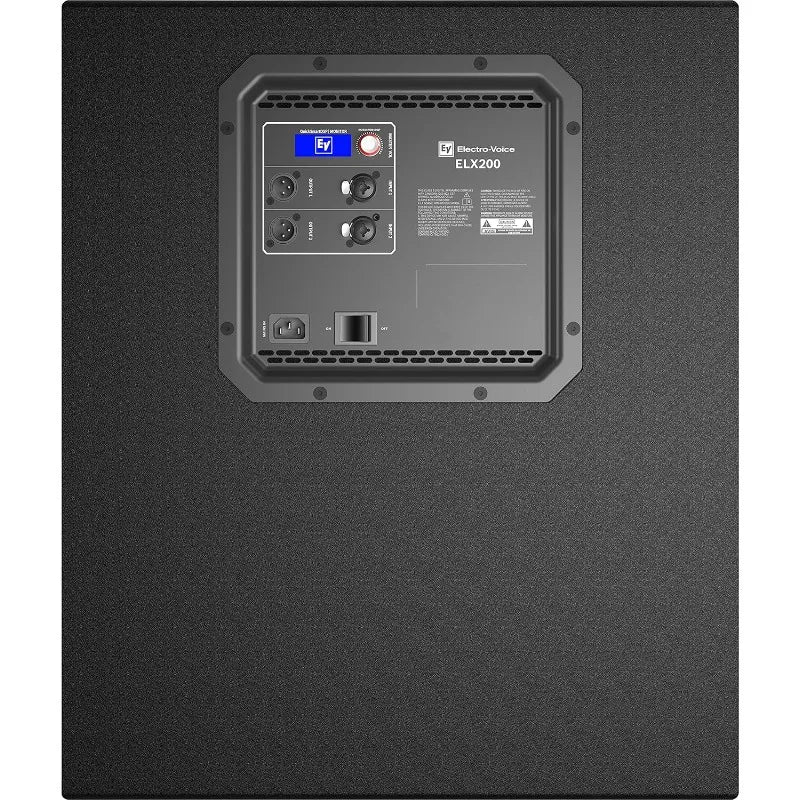

SPECIFICATIONS Frequency response (-3 dB) : 47 Hz - 105 Hz¹ | Frequency range (-10 dB) : 40 Hz - 145 Hz¹ | Maximum SPL : 132 dB² | Power rating : 1200 W | LF transducer : EVS-18L 457 mm (18 in) | Low-Pass frequency : Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz | Connectors : (2) XLR/TRS combo jacks and (2) XLR link outputs | Enclosure : 15 mm plywood with EVCoat | Grille : 18 AWG steel with powdercoat |
SPECIFICATIONS Color : Black or White | Dimensions (H x W x D) : 600 mm x 507 mm x 574 mm (23.7 in x 20.0 in x 22.6 in) | Net weight : 29.0 kg (64 lb) | Shipping weight : 33.1 kg (73.0 lb) | Power consumption : 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³ |
EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries. |
QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD. |
High-efficiency 1200 W Class-D power amplifier delivers up to 132 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV. | Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
