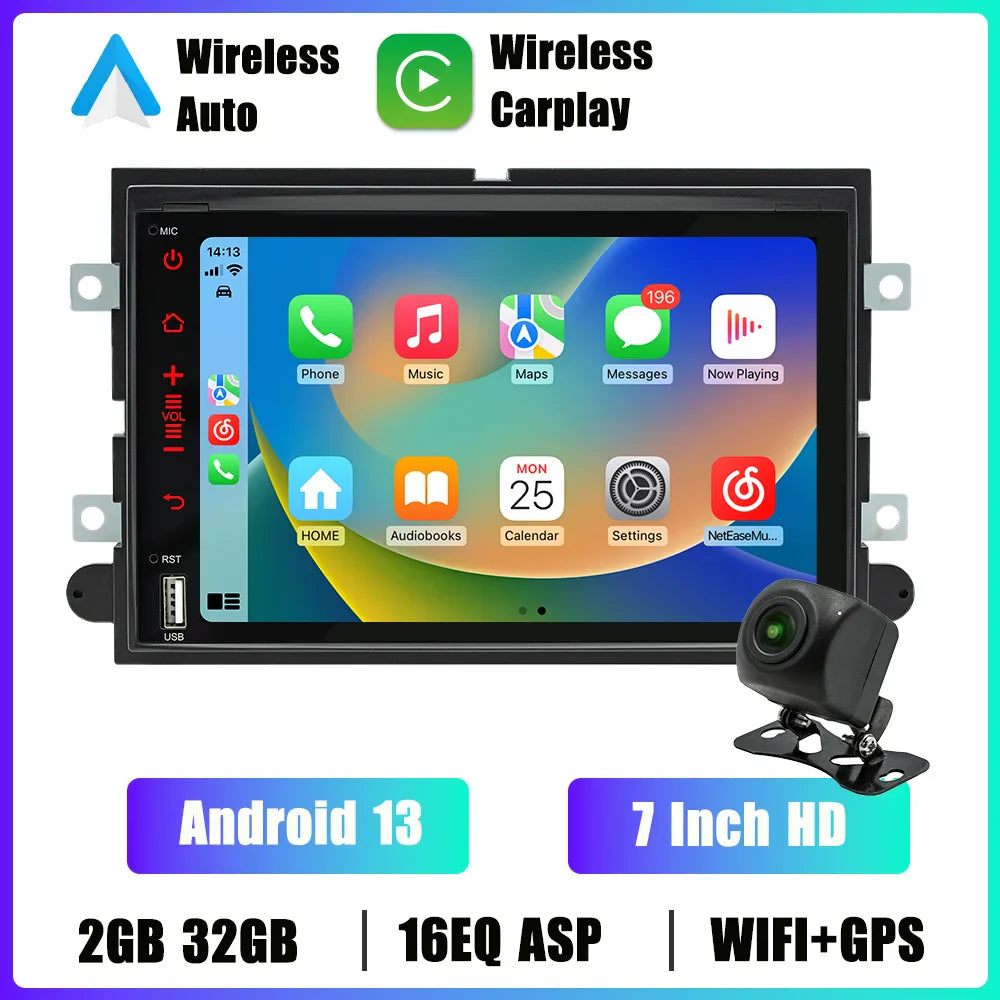

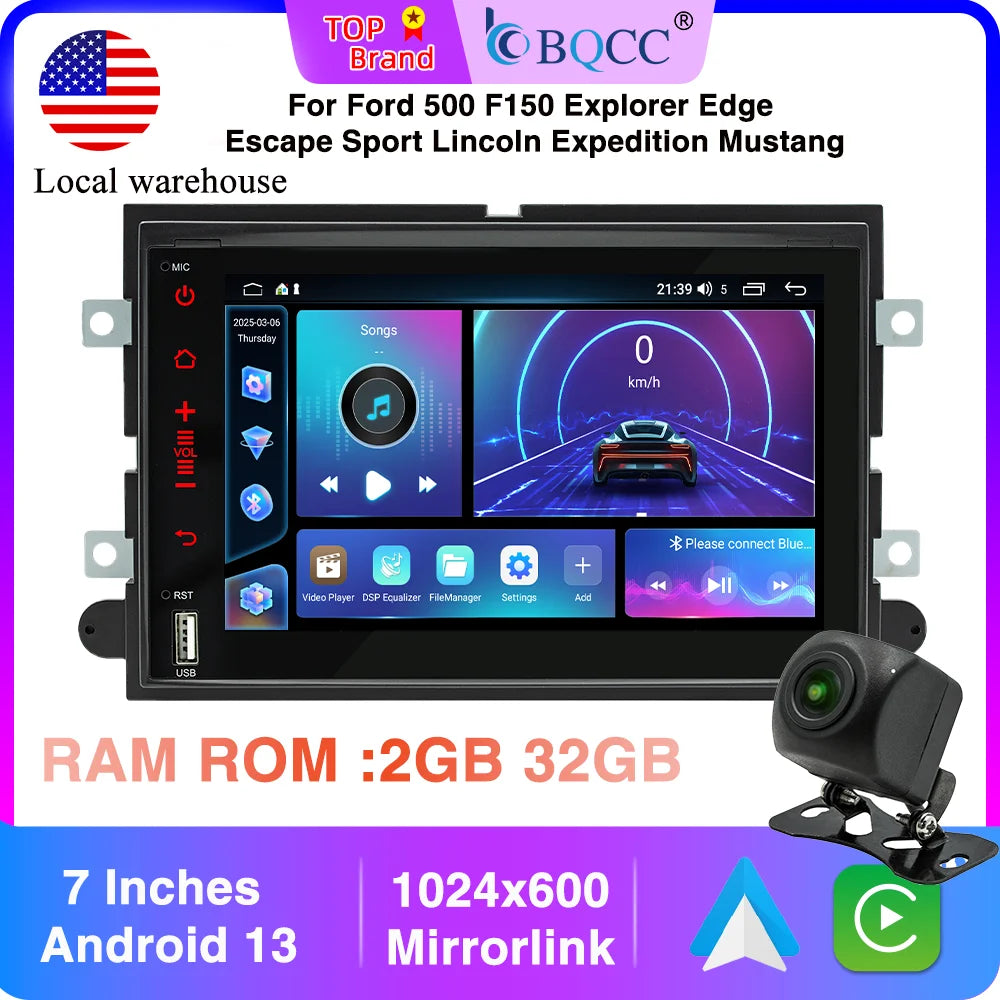

BQCC 7" Android 13 Mirrorlink 2GB 32GB Carplay WIFI GPS for Ford 500 F150 Explorer Edge Escape Sport Lincoln Expedition Mustang

BQCC 7" Android 13 Mirrorlink 2GB 32GB Carplay WIFI GPS for Ford 500 F150 Explorer Edge Escape Sport Lincoln Expedition Mustang

>> Why choose BQCC?

1. We're an Aliexpress Top 10 Brand, committed to innovation in both hardware and software to enhance your experience. We offer free updates for firmware, software, UI, and GPS navigation maps.

2. Our products undergo rigorous quality testing to ensure the highest standards before shipment.

3. Orders are dispatched within 24 hours from local warehouses in the EU, ES, and USA. In Europe, ES warehouse covers the entire region, and we also offer 24-hour dispatch from our China warehouse on working days.

4. We provide a 365-day post-purchase problem resolution. If you encounter any issues, we offer a free return and refund within 15 days, or a direct replacement. Please reach out to our 24/7 customer service for assistance.

Processor: Cortex quad-core processor high-definition,7-inch IPS capacitive screen running fast radio player, 1024*600 high resolution

Android operating system, you can install apps, Google Play Store, Facebook, YouTube, Twitter, etc.

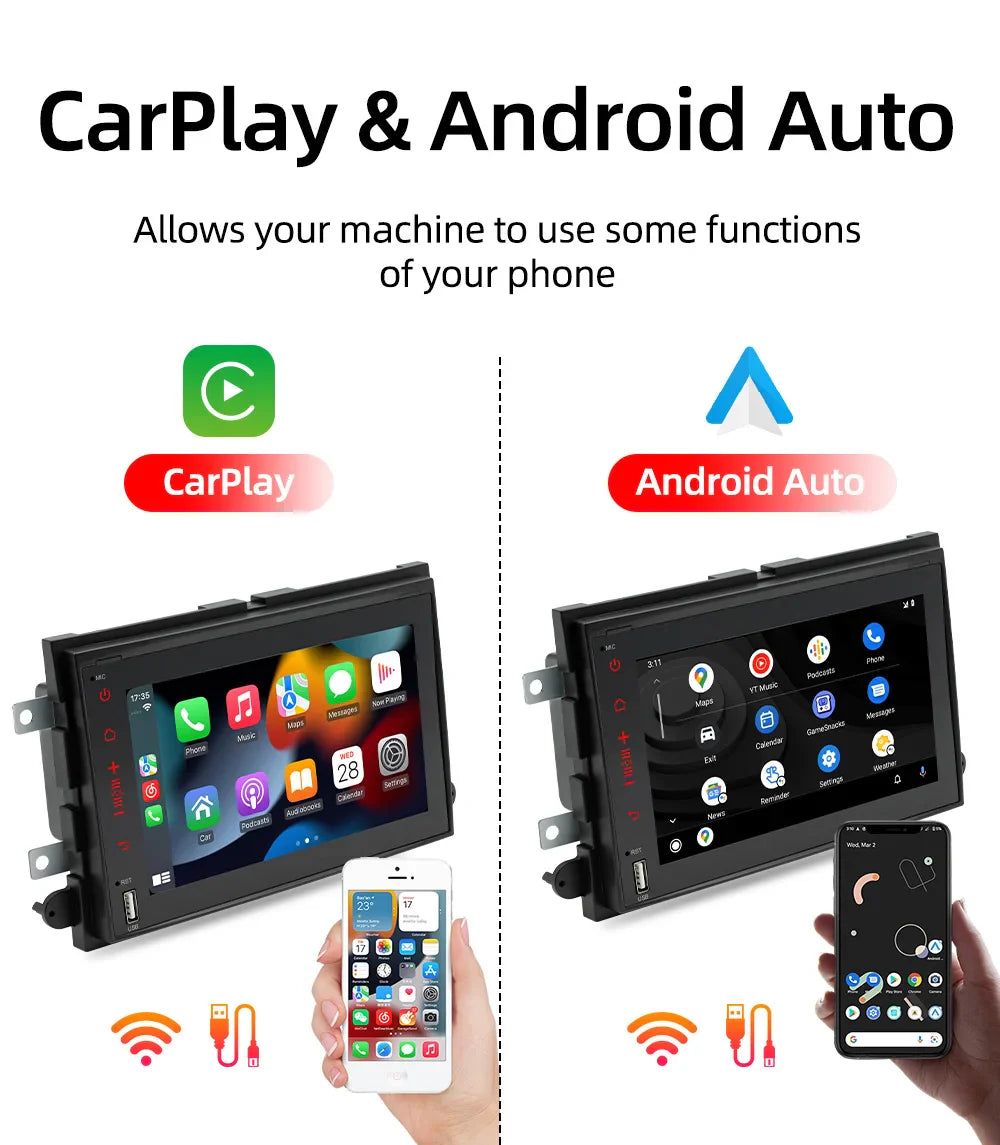

Wireless Carplay and wireless Android Auto: Users who use them can connect to the car system through a data cable to achieve voice-controlled navigation, make calls, send and receive messages, and listen to music.

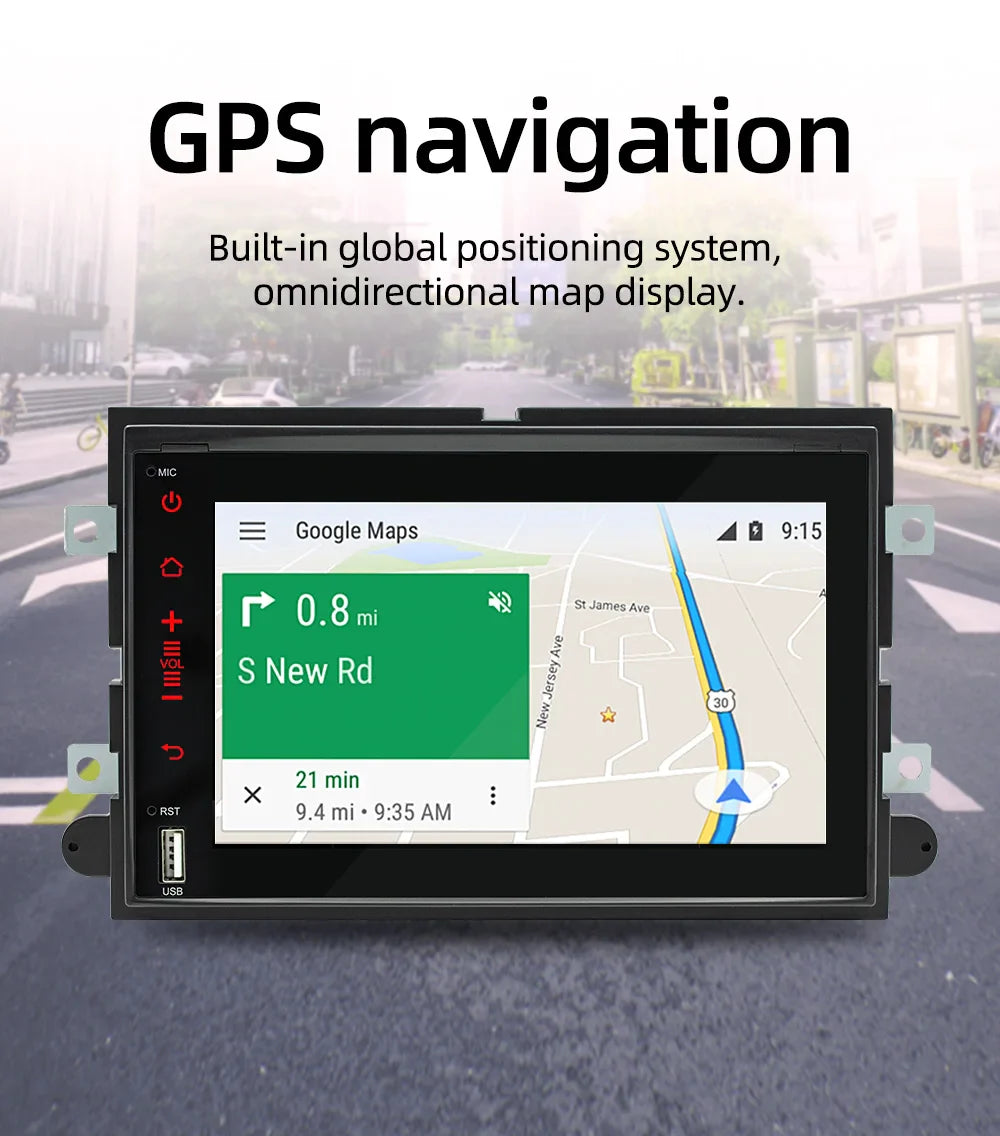

GPS Navigation: Support many kinds of navigation App such as Baidu Map, Gaode Map, Google Map, built-in offline map

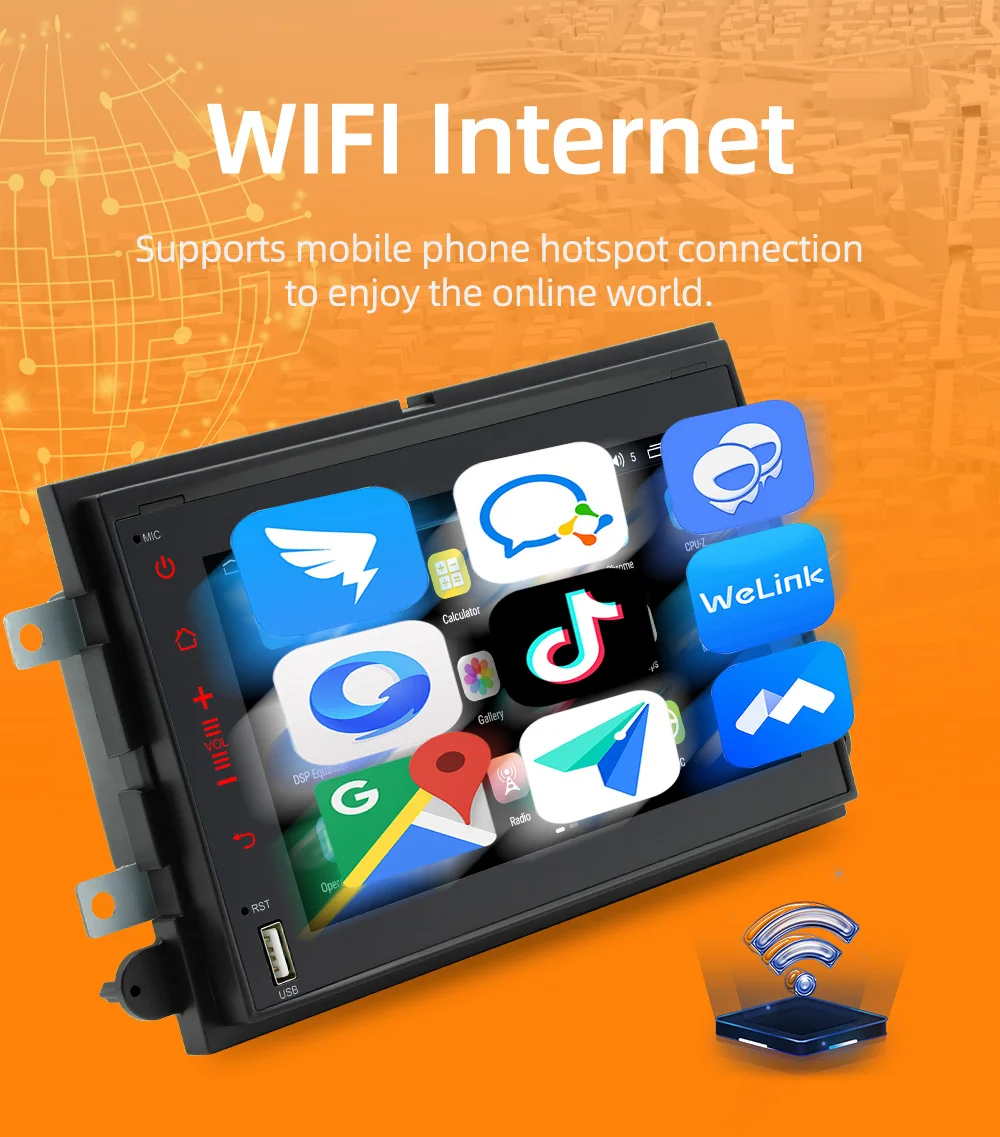

Support WIFI connection, online video playback, and online map navigation

Support FM/RDS: with 30 preset radio stations, high-end radio chip, powerful noise reduction, and anti-interference ability

Support USB/AUX/Bluetooth multiple music playback modes

Support Intelligent voice AI voice assistant

Support rear view camera

Built-In microphone for hands-free calling function.

Support Android/ phone Mirror Link

Support split-screen function

Support file manager

Support phone book download

Support lossless audio: 16 EQ sound gives you the pleasure of the concert scene

Support steering wheel control

Support languages with multiple on-screen menus

Basic parameters

No. SWL-FT00001

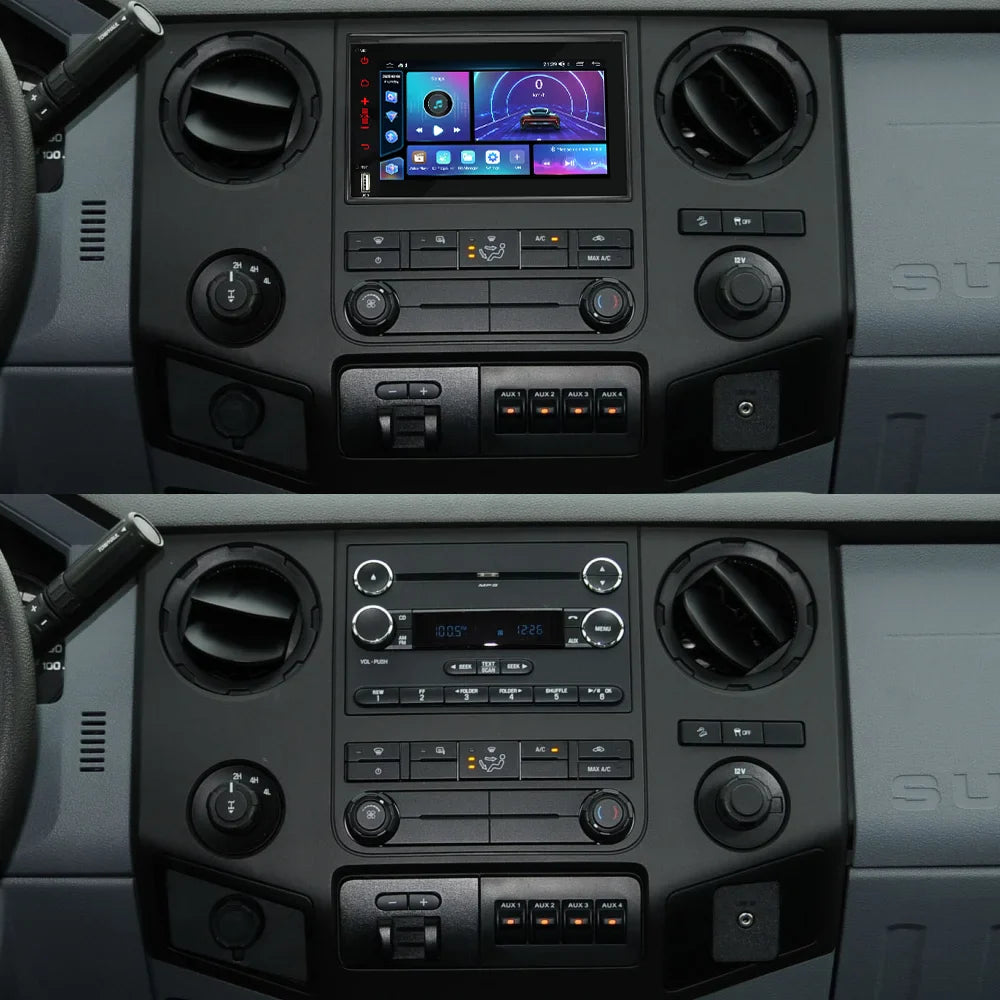

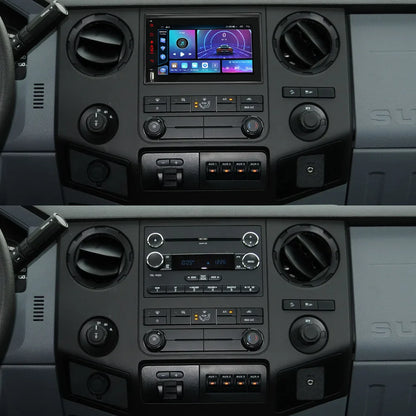

Model :Ford F150 (Applicable to 2007~2014 FORD Expedition EL/MAXF250/F350)

System: Android 13

Software solution :Fang Yitong UIS81411E

Radio frequency :FM 87.5~108.0MHz (switchable to Americas 1, Americas 2, China, Russia, Japan, regional radio frequencies)

Radio chip :QN8035

Amplifier chip :YD7388

Output power :60Wx4

Working voltage :8~16.5V

Working temperature :-30~75℃

Bluetooth version :5.1 version (default name: SWL-BT)

Wifi frequency :2.4GHz, 5GHz

GPS signal :Beidou/GPS/GLONASS

Panel light :Red light

Performance parameters

CPU UIS81411E 4 cores 1.3GHz x 4

Running memory 2G

Storage memory 32G Optional: 64G

Display resolution 1024x600 HD

Screen size 7 inches

Dimensions

Color box size 295x185x100mm (cowhide box)

Full box size 595x390x325mm

Number of units in a full box 12

Weight parameters

Unit weight 1.57KG

Full box net weight 18.84

Full box gross weight 20KG

Function parameters

Mobile phone interconnection "Support: √, not supported: ×

Apple CarPlay: wired √, wireless √;

Android Auto: wired √, wireless √;

iPhone screen projection: wired ×, wireless ×;

Android screen projection: wired ×, wireless ×."

Reversing image Support (480P/720P/1080P) (camera optional)

Video playback warning Support

Steering wheel control Support button learning

USB interface Front USB2.0 + rear USB2.0 (6P)

Driving recorder Support (USB signal input, recorder optional)

GPS Support

DAB Support external USB interface DAB box

Video output Not supported

External microphone Support

Reset button Support

RCA port parameters

Audio output 2 channels (left channel + right channel)

Video input 2 channels (left channel + right channel)

Video output Not supported

Video input 2 channels

Reversing video input 1 channel

Subwoofer output 1 channel

Format parameters

Audio format MP3/WMA/WAV/APE/FLAC/AAC/OGG/RM

Video format MPEG/AVI/RM/FLV/ASF/WMV/MP4/MKV/OGM/TS/DivX/RMVB/VOB

Image formats JPG/BMP/PNG/JPEG/GIF

Language parameters

Chinese/Traditional Chinese/English/Russian/Greek/Polish/Turkish/Arabic/Persian/Romanian/French/Hungarian/Italian/Thai/German/Ukrainian/Spanish/Portuguese/Czech/Vietnamese/Japanese/Malaysian/Dutch/Indonesian/Korean

Other parameters

Factory password 3368

Basic functions

1. Radio (FM)

2. Read USB disk (audio/video/picture)

3. Audio input function

4. Bluetooth function

6. Rear view function (camera optional)

7. Video input function

8. Original car steering wheel learning function

9. Android recorder can be installed (recorder optional)

10. WIFI Internet access

11. GPS navigation

12. RDS function, can receive traffic radio in real time

13. APP can be installed

14. Wired + wireless Android auto, wired + wireless Apple carplay (wired carplay and Android Auto can only use 4P USB interface)

15. External microphone (external microphone optional)"

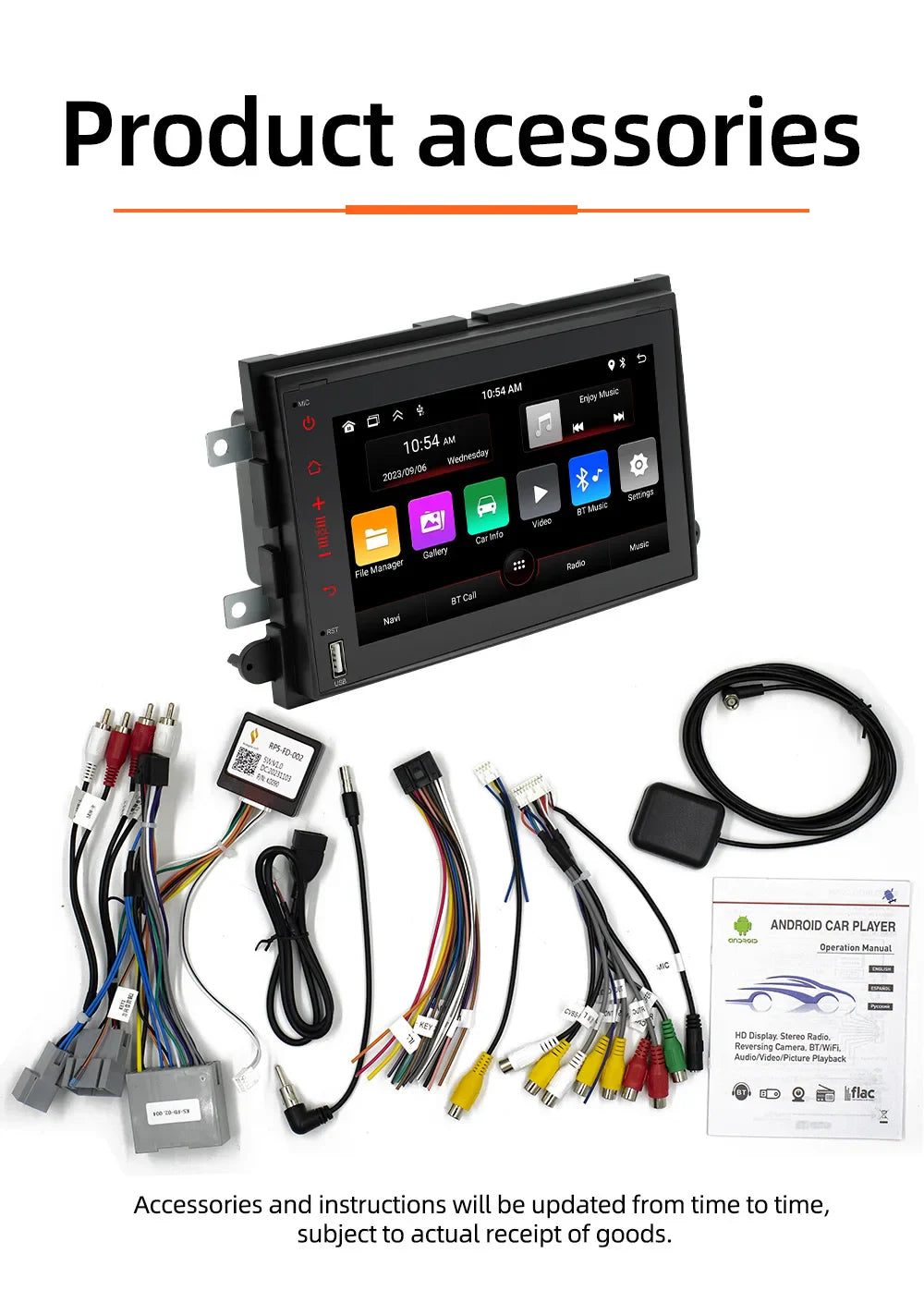

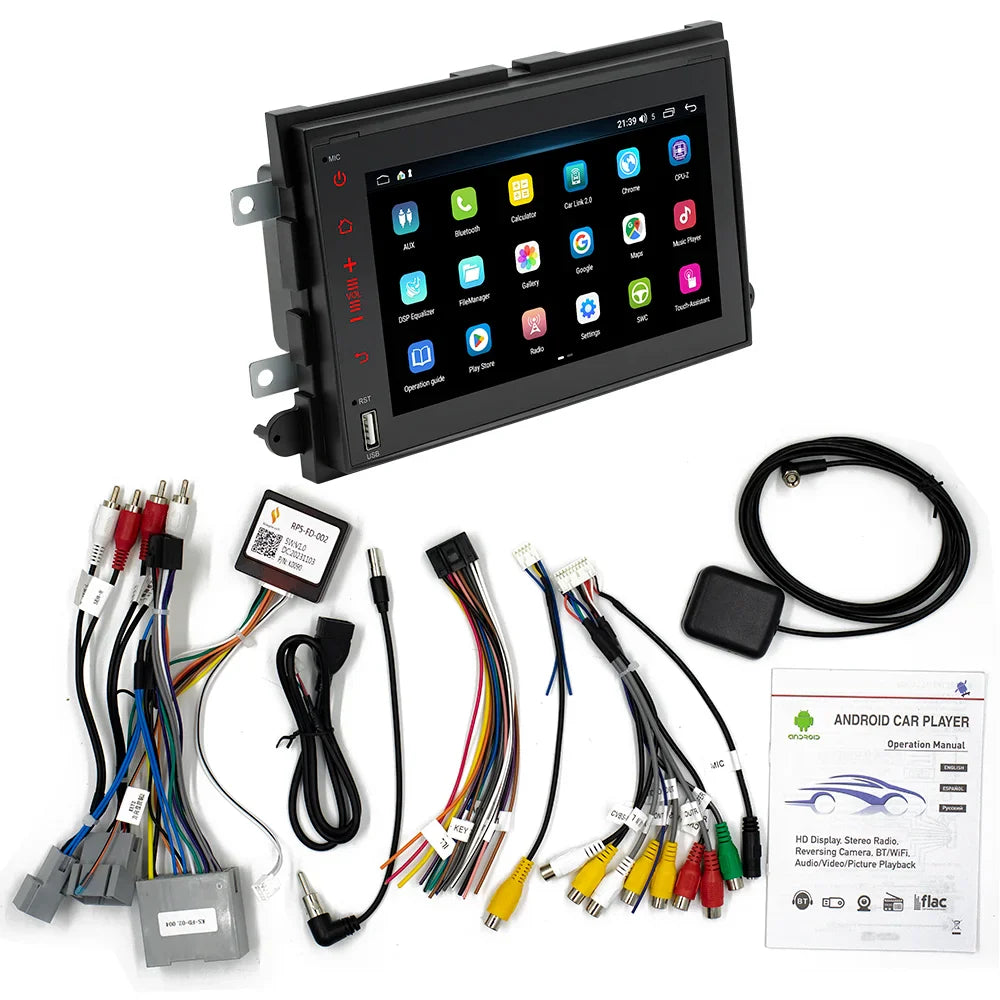

Basic parameters

1x1. Car Radio

1x1. Dedicated power cord

1x1. Protocol box

1x1. Radio antenna transfer cable

1x1. 16P universal power cord

1x1. GPS antenna

1x1. Reversing video input cable

1x1. RCA harness

1x1. USB cable (6P)

1x1. Instruction manual

(Accessories, instructions, and packaging will be updated from time to time, subject to the actual goods received)
FAQ:

Q1.Why the car radio can't turn on?
1>Please check the Voltage of the car radio: DC 12V
2>When you test this car radio, you can combine the red and yellow wires and connect them to the positive side of the power supply. The black line to the negative power supply.
3>Replace the same type of insurance to test the car radio.
Note: Please must use our power cables to connect our car radio, it is not possible to insert the original car plug directly into our machine.

Q2.Why the car radio will show time after we turn off this?
>That time clock is a function for the car radio, that can't be removed. In fact, a car radio had been turning off, saves time is more convenient for people to see,
>If you didn't need this, you need to unplug the power positively and negatively

Q3.Why hasn't sound in the car radio when playing music?
>1. When you are not using our original audio cable, please check if your audio cable is suitable for our camera.
>2. Please check if there is any collision between the lines.
>If the line is connected, there will be no sound when the speaker cable touches the speaker cable. There is also no sound when the power cord touches the speaker cable.

>If the problem is still here, please use a single speaker to connect a group of audio cables to test the car radio. The four-speaker cables are connected separately to see if there is any sound.

Q4.Why can't search FM?
>1. No radio antenna was inserted.
>2. Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted.
>3. The signal of your location is not good. Please go to a better place to test again.
>4. The radio antenna on the car is broken/has no effect; please replace the radio antenna and test it again.

Q5.Why can't connect the Bluetooth to the car radio?
>1. Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, and find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
>2. Please try to use another mobile phone to test this function. All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.

Q6. How to update GPS Map?
>1. First of all, you need to download the map update APK from our website or anywhere else, or use a mobile phone to do WIFI hotspots to download and install directly. You can also use online navigation. Then you need to copy them to the GPS ROM and set the navigation path to the navigation program by setting.

Q7.Is it possible to listen to music or radio while using navigation ?!
>1. Yes, it is possible to listen to the radio or music while using the navigation system. Clayton devices are using a unique technology that makes listening to music happen when you are using the navigation system.

Q8.Do these units support steering wheel control ?!
>1.Yes of course. For each different car model, there is a different CAN-Bus ( Optional ) that comes with the unit to match the unit to the vehicle amplifier and steering wheel control.

Q9.Can we install the DVD Units ourselves?
>1. We will provide all the wires for the navigation, Power wire (Plug and play), RCA wires (with 7 ports), Reversing video input wire & wifi & Bluetooth antenna, GPS antenna, two USB wires
>2. It is preferred that the installation be done by a professional person. We are not responsible for the damages that might occur to the dashboard of the car while installing the device. So it is better that a professional person installs the unit on the cars.
