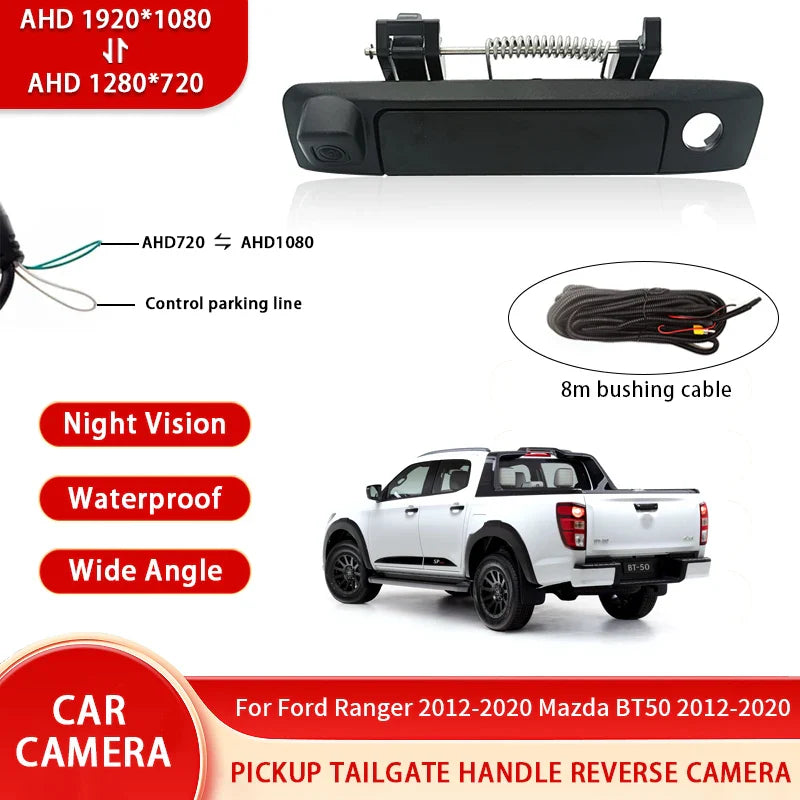

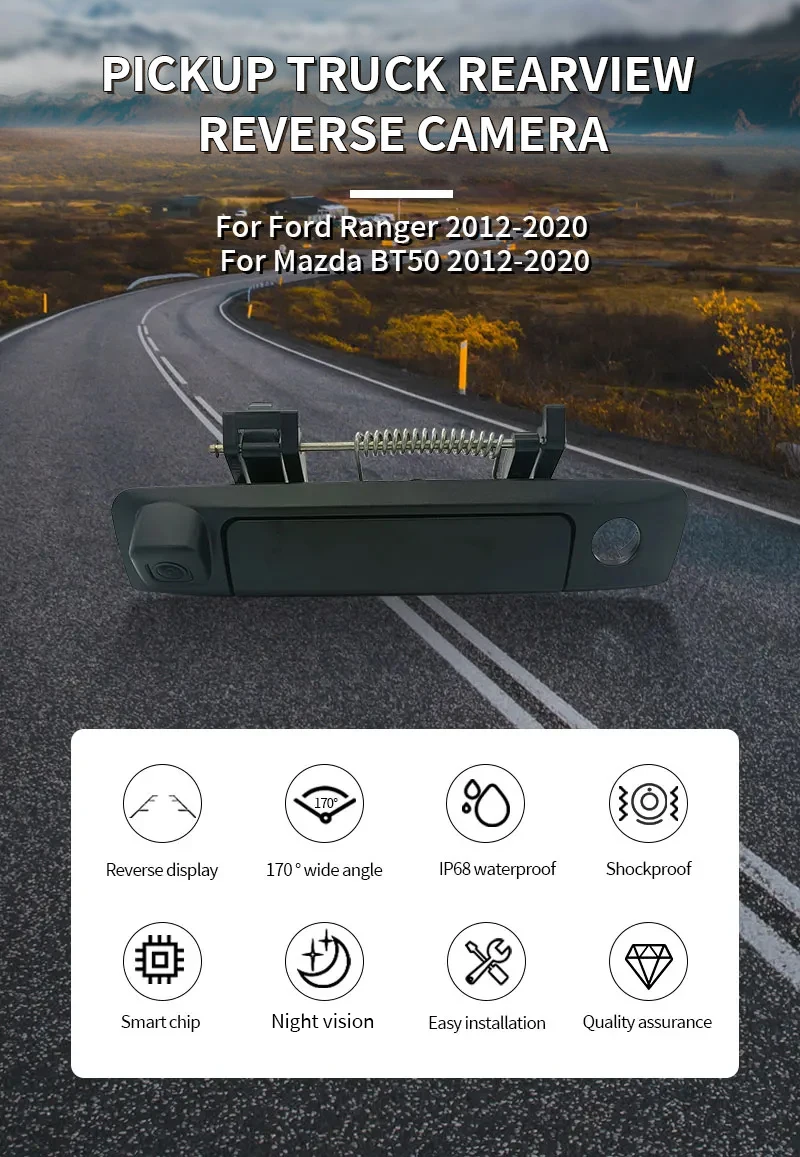

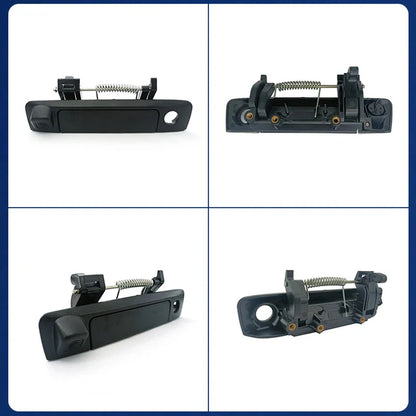

AHD 1080P NTSC Pickup Truck Tailgate Handle Reverse Camera For Ford Ranger Mazda BT50 2012-2020 Waterproof Backup Camera

$98.00

~~$180.00~~ $98.00

Sale Sold out

Shipping calculated at checkout.

Color Name CVBS720P - AHD720P AHD720P - AHD1080P

Voltage 12 V

NOTE:

(1)Please check if your Android monitor supports AHD720P/AHD1080P before purchasing

(2)Our car camera only supports Android large screens. Please check carefully before purchasing

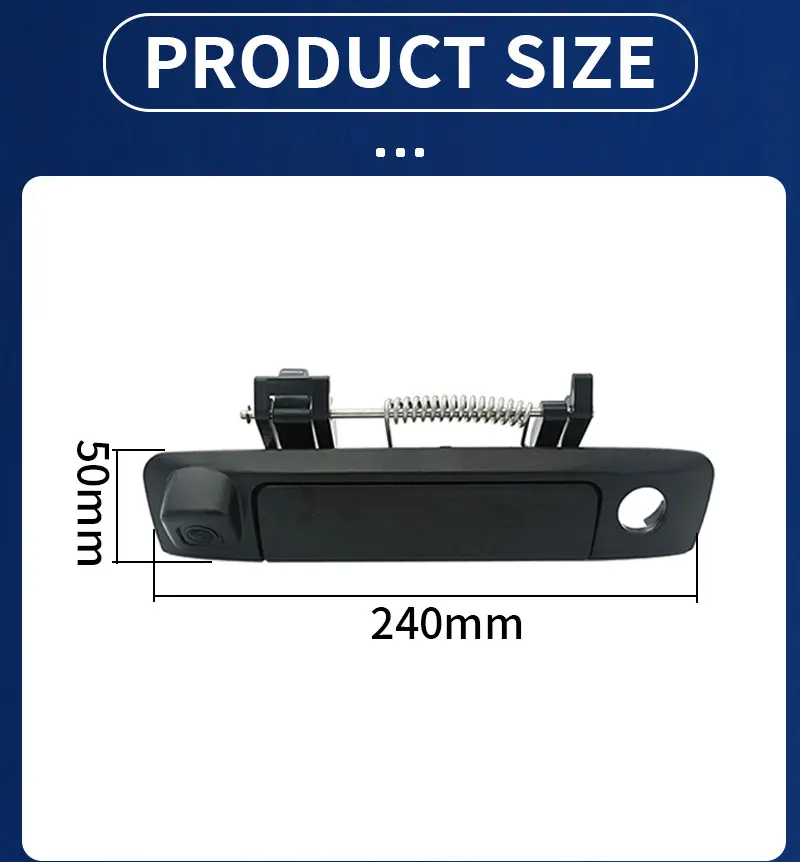

(3)Because there may be slight differences between carsproduced in different countries, please check the size beforebuying.

Feature:

1. Condition: Sony lens, six-layer lens,100% products and high quality

2. hard-resistant function, strong blowing

3. Easy installation and simple operation

4. High definition camera reading, high definition and wide viewing angles

5. Ensure safe driving to avoid accidents on vehicles

6.Stable performance, low power consumption, low noise,smart adjustment, night vision effect

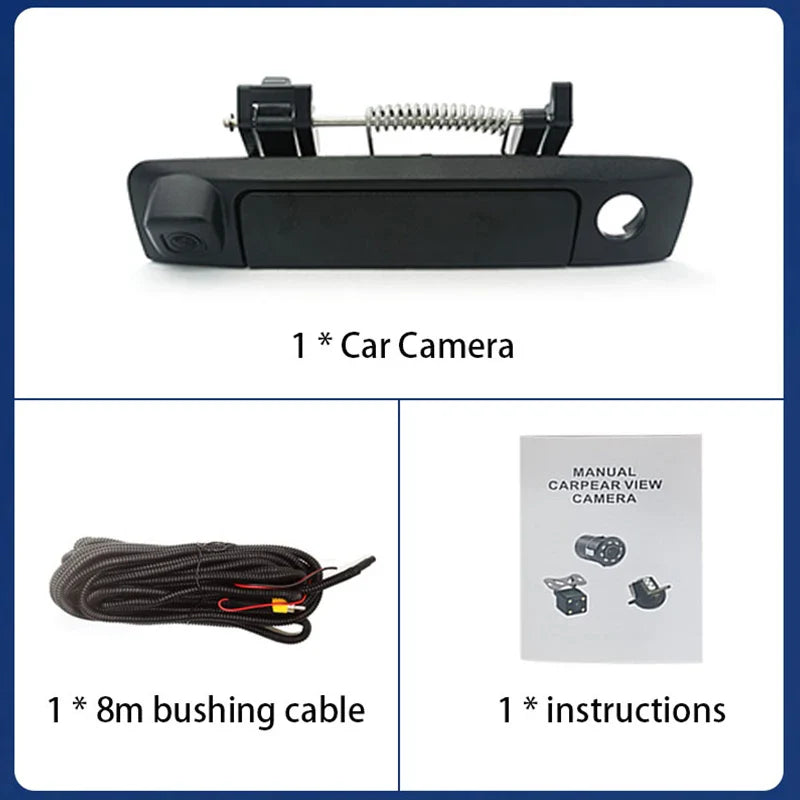

Product List:

1 * Car rear camera

1 * 8m video cable

1 * User manual

Cameras with CVBS CCD video signal is universal for all monitors, but AHD signal will only work with AHD monitor!

*If AHD cannot be selected, AHD cameras are not supported!

Go to Car settings >> Factory setting >> Reverse (picture) settings >> Select AHD 1080P

*If your Android device does not support AHD 1080P signal, you need to set it to AHD 720P signal. Before setting it up, you need to check if the car camera has switched to AHD 720P signal, otherwise there may be no signal

Go to Car Setting >> Factory Setting >> Reverse (Picture) Setting >> Select AHD 720P

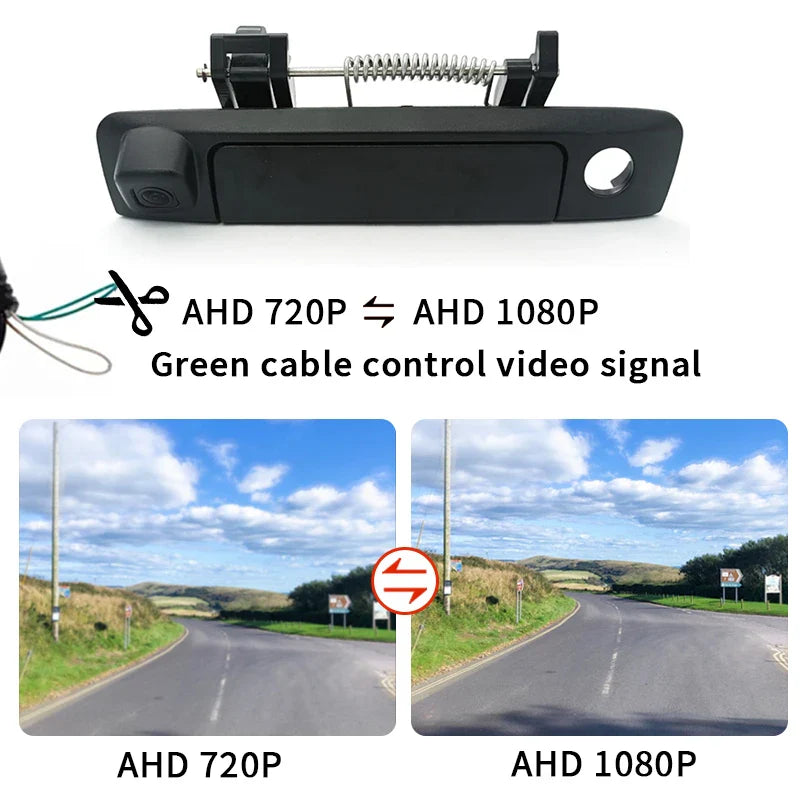

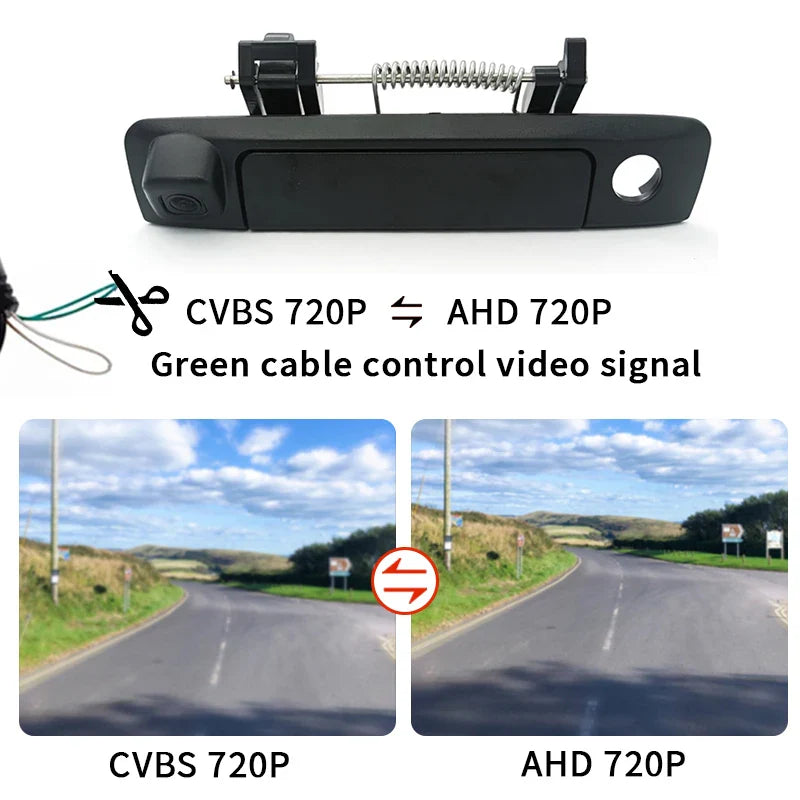

Conversion Line Control

*Note：If the monitor does not show the image, you can cut the green line to switch to another channel, and then reconnect the camera

Possible issues that may arise during
the installation process

After installation, black screen, no signal,
blurred screen, and black and white image appear

Resolvent:

1. Check if the camera cable is not properly connected

2. First, check if the Monitor is on the same channel as the camera,
as our camera is Dual channel camera, so it is necessary to confirm
whether the camera is a AHD1080P or AHD 720P channel, usually The
default is AHD1080P channel, and after cutting the green line,
it becomes AHD720P channel. After confirming the camera channel,
It is necessary to set up channels corresponding to the camera
on the car Monitor, such as the camera For AHD1080P channel,
the monitor needs to be set to AHD 1080P channel. If the camera If it is
a AHD 720P channel, set the Monitor to AHD 720P Channel
