2x Universal Air Ride Suspension Bags Pair Standard 2500lb 1/2"npt Single Port for Ford F150

Please confirm whether the air suspenison bag parameters below(especially height, diameter, bolt specifications) are consistent with ours before purchasing.

Fit for:

Universal Air Suspension Bags for Ford F150/F250, for GMC Sierra, for Chevrolet Silverado, for Dodge Ram 1500 2500 3500, etc

(Fits for most brand trucks)

Item Specifications:

Condition: 100% Brand New

Loading cap. at 3.0bar:2.88KN

Loading cap. at 7.0bar:7.25KN

Placement on Vehicle: Left,Right,Front,Rear

Air spring bag capacity:  2500LBS

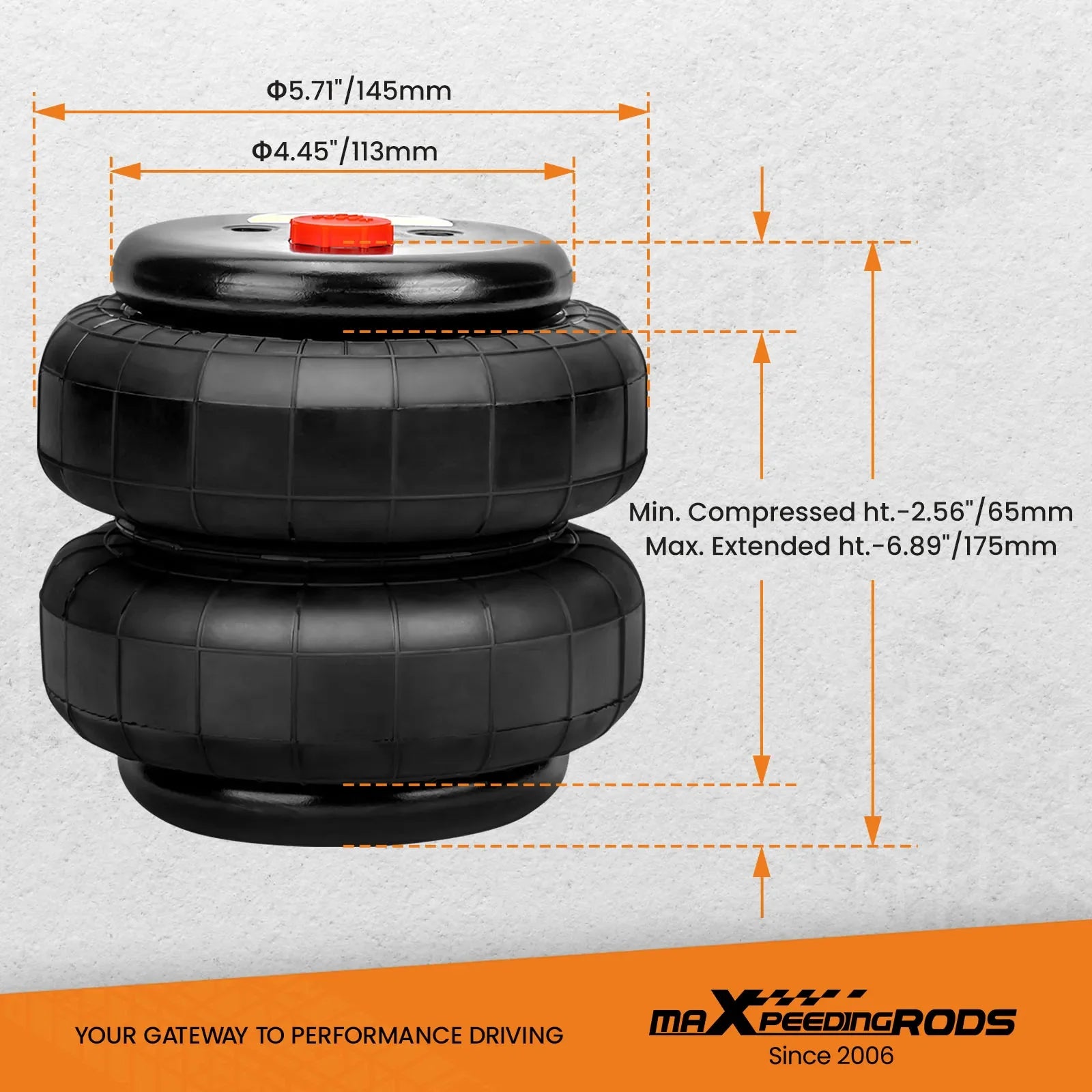

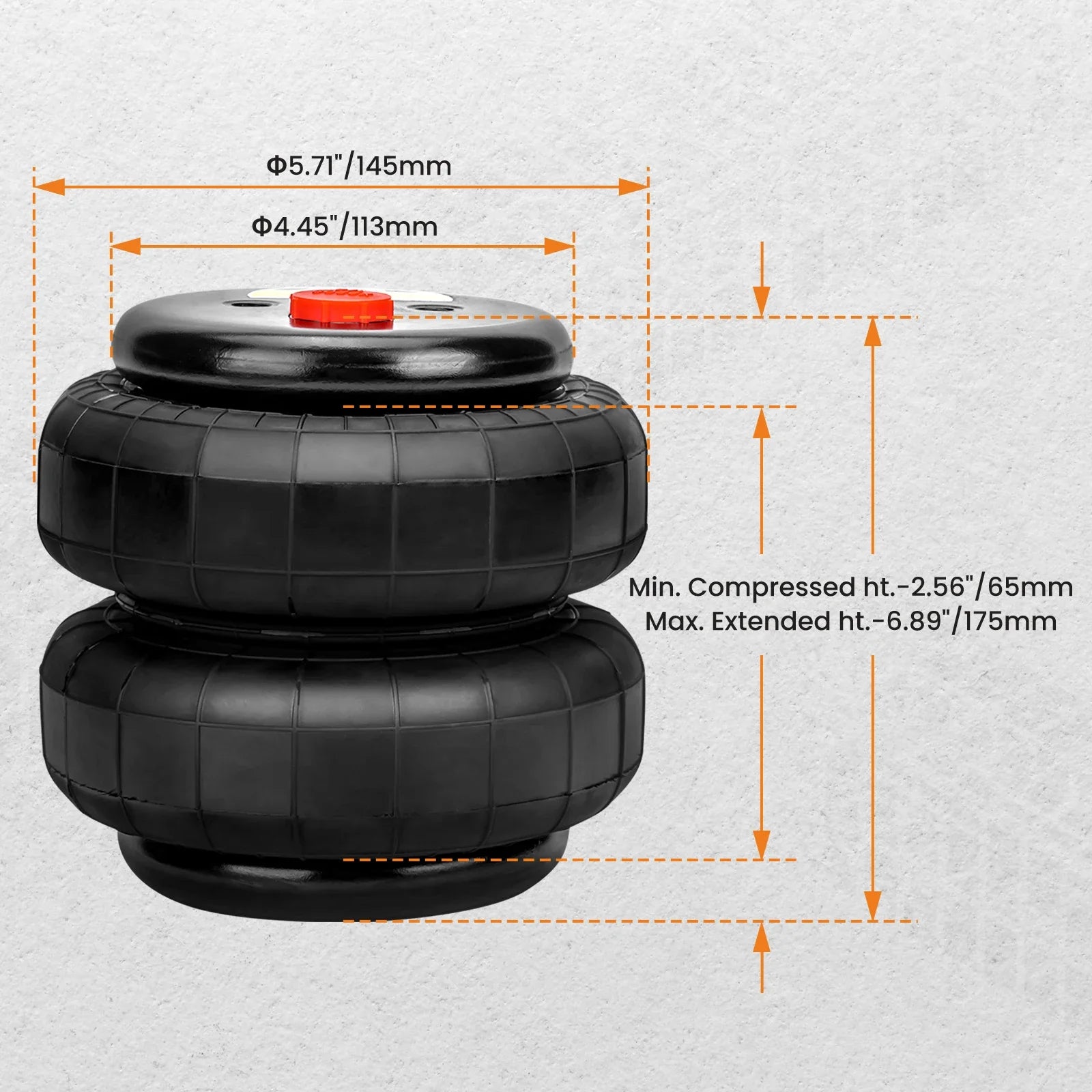

Min height: 72mm±5mm

Max height: 218MM±5mm

Working stroke: 146mm±5mm

Single air port size: 1/2NPT

Air fitting elbow connector: G1/2-φ6(male)

Install hole size: 3/8-16UNC

Top plate diameter:113mm

Air spring bag body diameter:148mm±2mm

Quantity: 2 pieces in one set. (for rear / front left or right)

Warranty:2 Years Warranty for any manufacturing defect.

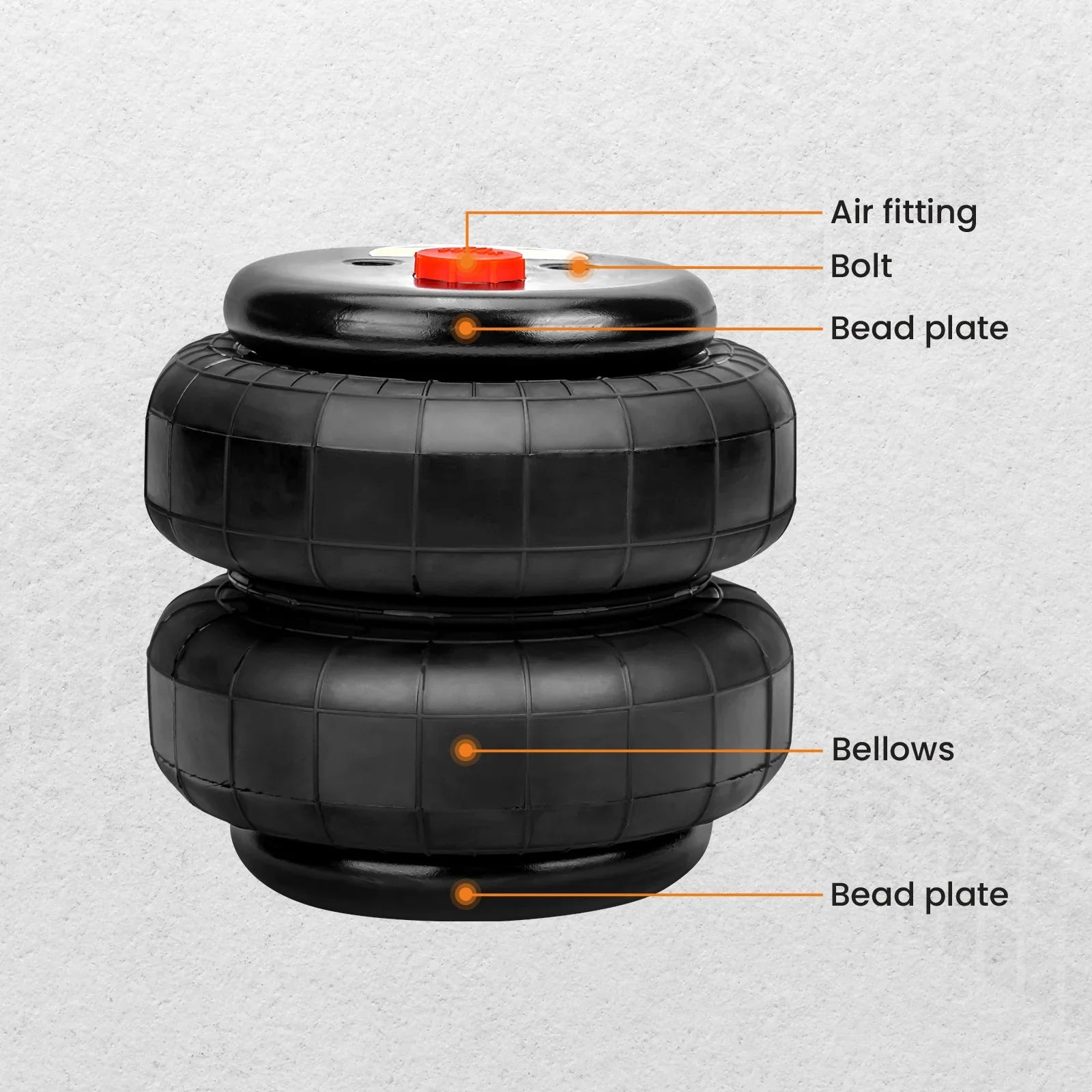

Features:

- Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.

- Hold up to 350 PSI
- Test more than 3 million times
- Air Tightiness testing
- Gives the driver more control of ride
- Built to strict quality control standards
- Designed for Comfort Suspension

Notice

- These air suspension bags are aftermarket ones. They will replace the original air spring bags.

- Please doublecheck the picture and drawing carefully before purchasing to ensure you will get the right struts.

-Instruction is not included. Professional installation is recommended

-Contact us please for whatever we can help
