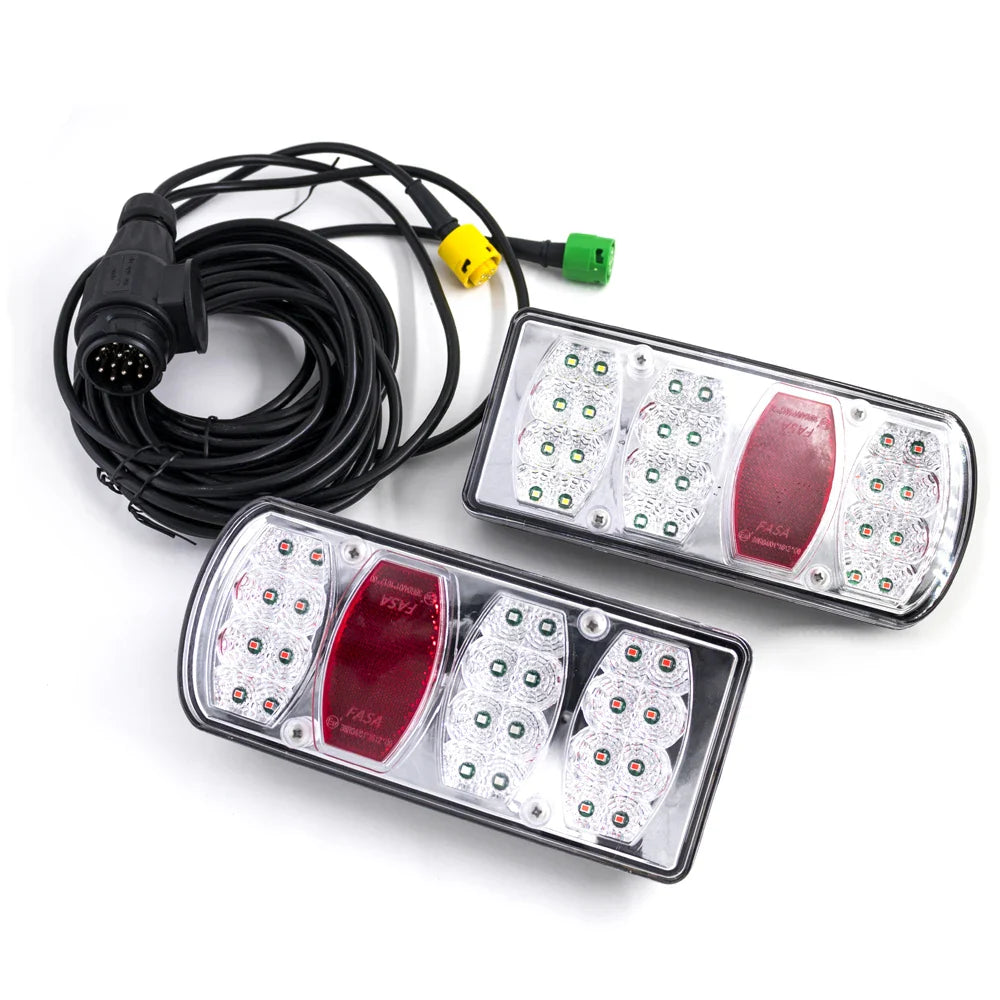

2pcs 12V 5.5 m Cable 13 Pin Plug Wiring Harness LED Tail Light Rear Stop Brake Light Signal Lamp Caravan Lorry Car Truck Trailer

Specifications:

Model:105

Voltage: 12V

LED Service Life: >50000h

Color temperature : 3000-4000k

Waterproof: Yes

Waterproof Rate: IP65

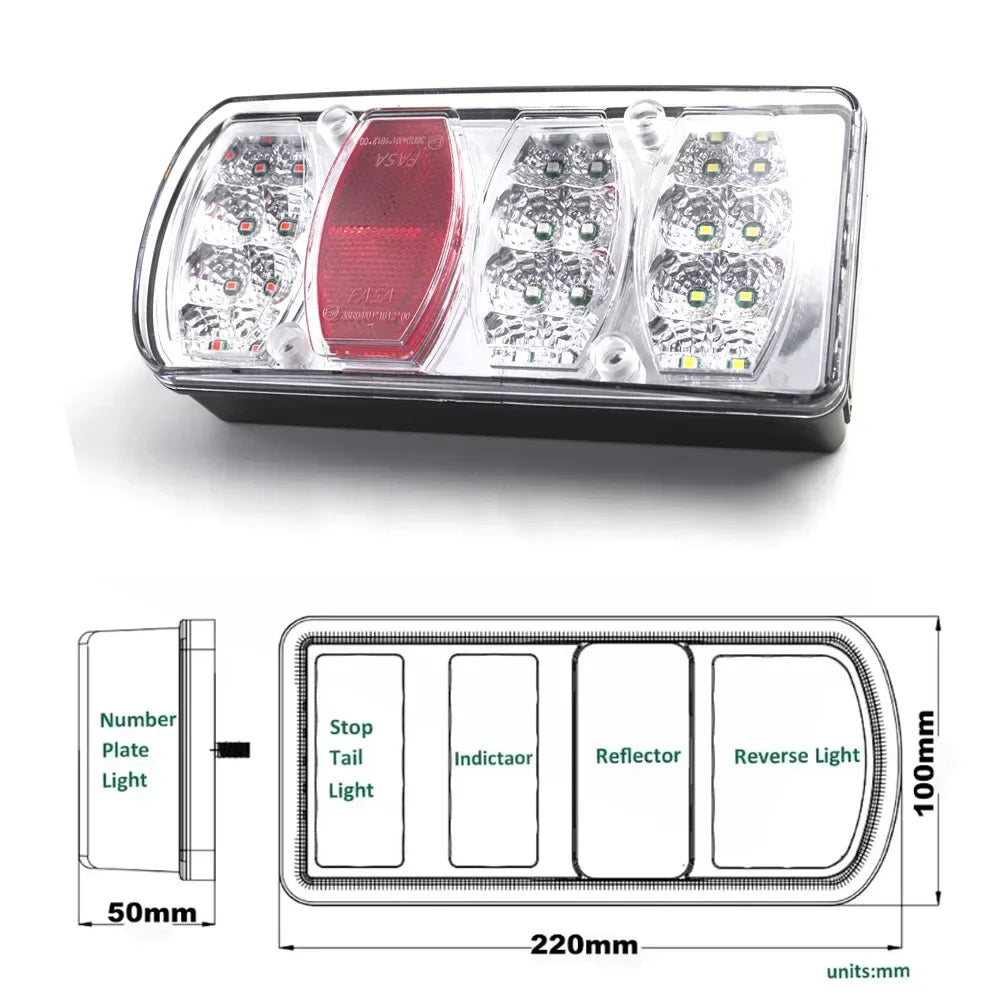

Size: 22cm*10cm*5cm (L x W x H)

Hole pitch: 15cm

Suitable for : Universal Truck trailer Van Bus

Light Color: Red+Yellow+White

Function: Brake lights, driving lights, turn signals, license plate lights

Material: ABS Plastic

Line Length: 5.5M

Wiring:

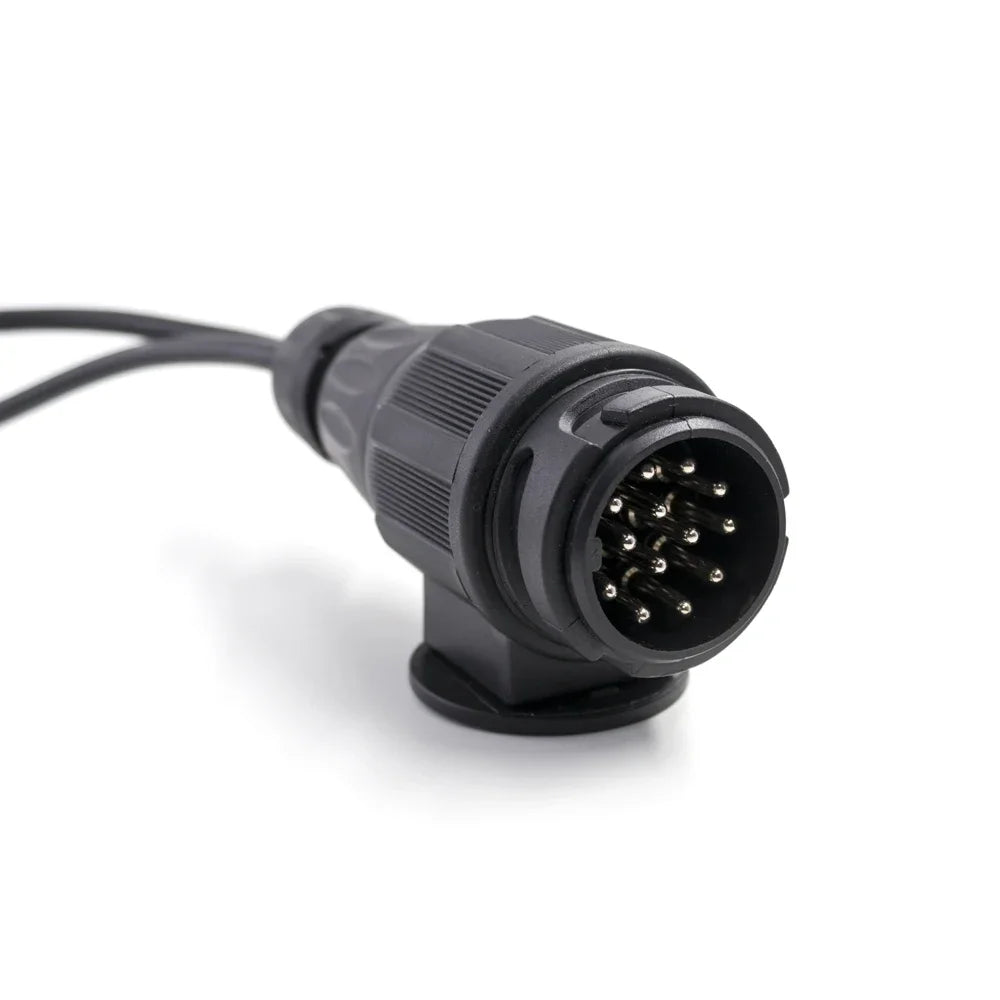

Schematic diagram of the functional layout of EN 13-Pin socket

Pin1 = Left turn signal

Pin2 = Rear fog light

Pin3 = 1~2 and 4~8 feet ground wire

Pin4 = Right turn signal

Pin5 = Right width light

Pin6 = Brake light

Pin7 = Left width light

Pin8 = reversing light

Pin9 = 12V constant power supply

Pin10 = ACC power

Pin11 = 10 feet ground wire

Pin12 = spare contact

Pin13 = 9 pin ground wire

Features:

1.Low energy consumption.

2.Long lasting, impact resistant.

3.Easy installation, bright, durable.

4.Fully waterproof, shockproof.

5.Universal fit any Vehicles with DC 12V.

Note:

1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Due to manual measurement, please allow slight data differences.

3.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

4.Please perform professional installation under safe conditions.

5.The 5 pin bayonet cannot be reversed, otherwise the light will be turned on incorrectly or not

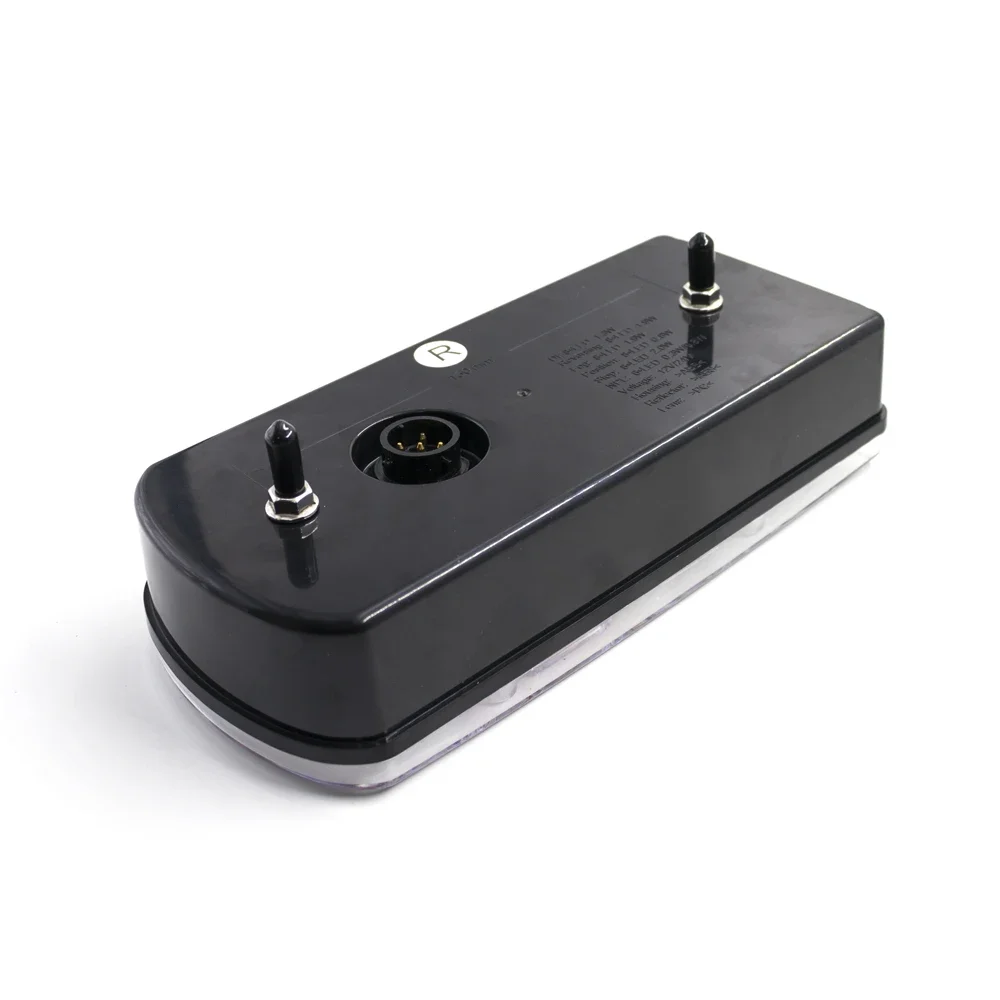

Yellow Bayonet Socket, Left Tail Light

Bayonet socket green - rear light right.

Package include:

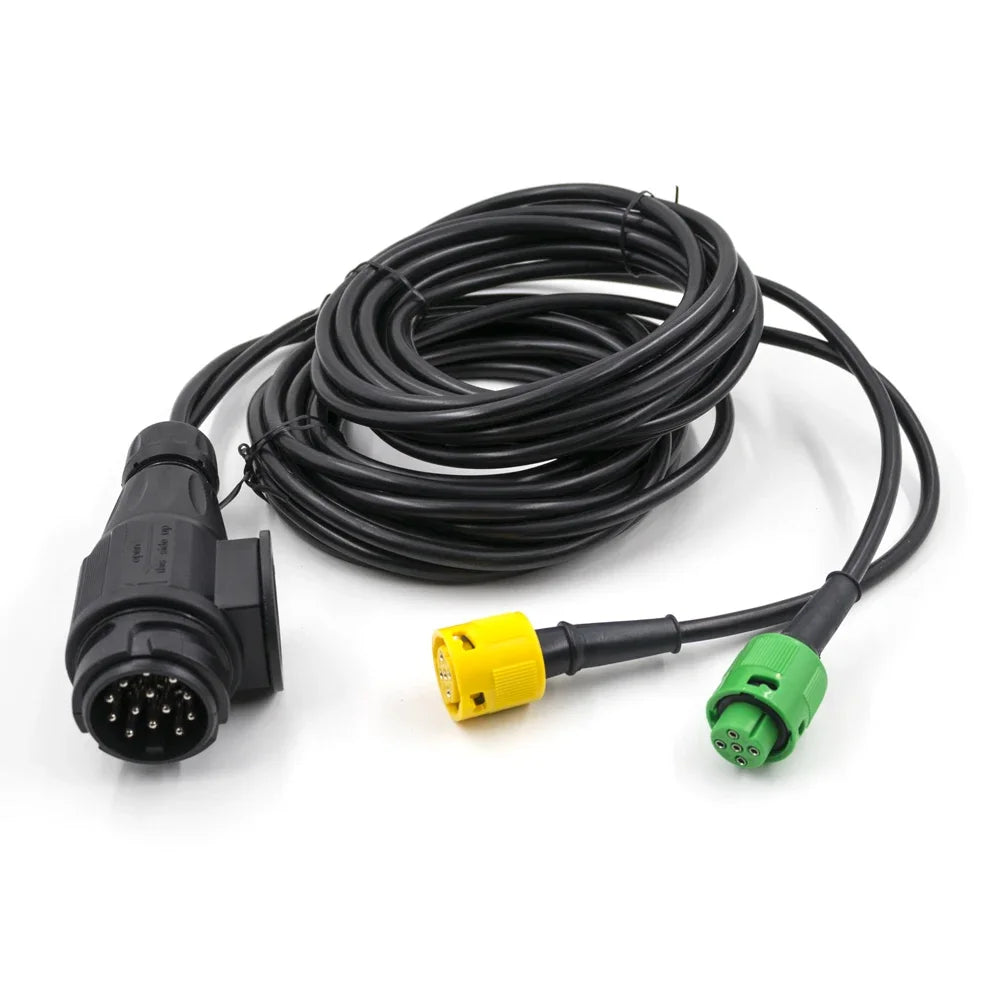

1X 5.5m line

1X 13 pin plug

2X Tail lights
