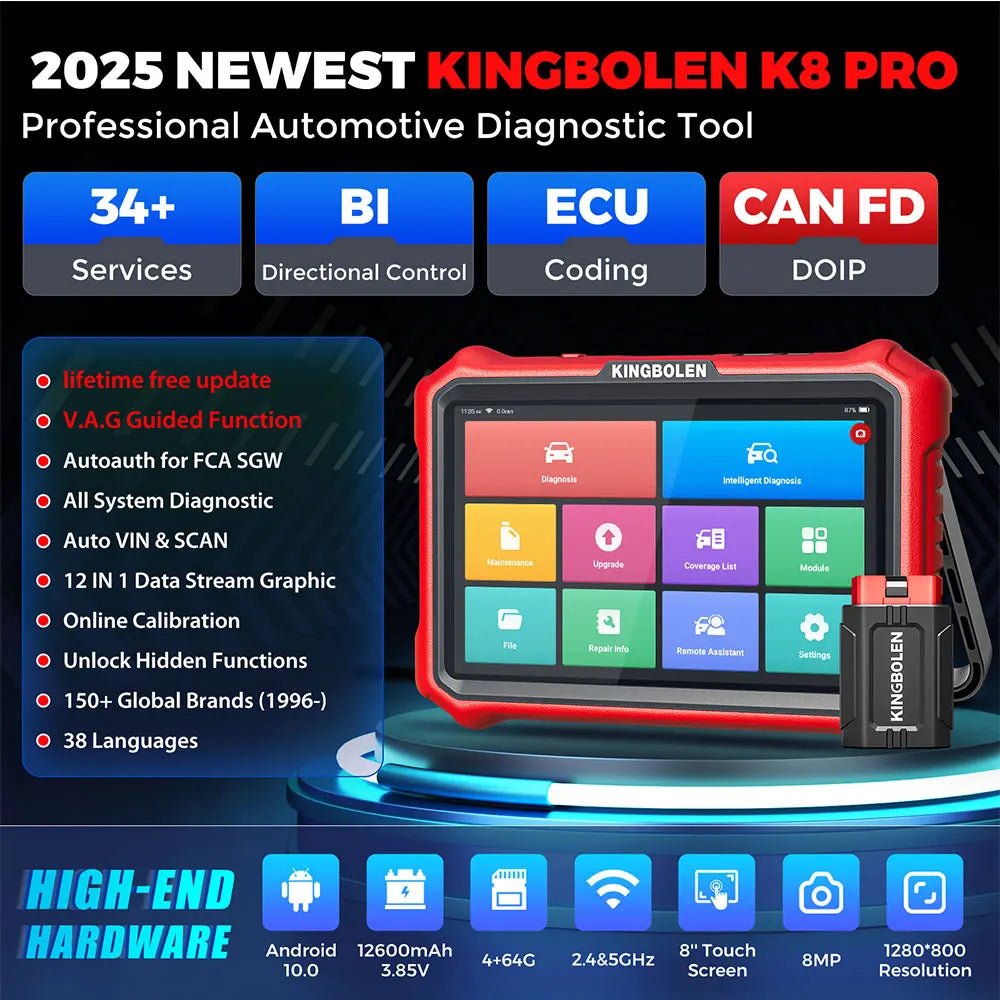

2025 New KINGBOLEN K8 PRO 8 inch Lifetime Free Car Diagnostic Tools All System 34 Reset ECU Coding Bi-directional CAN FD DOIP

What is the difference between K8 PRO and K8 Elite? They just have different connection methods

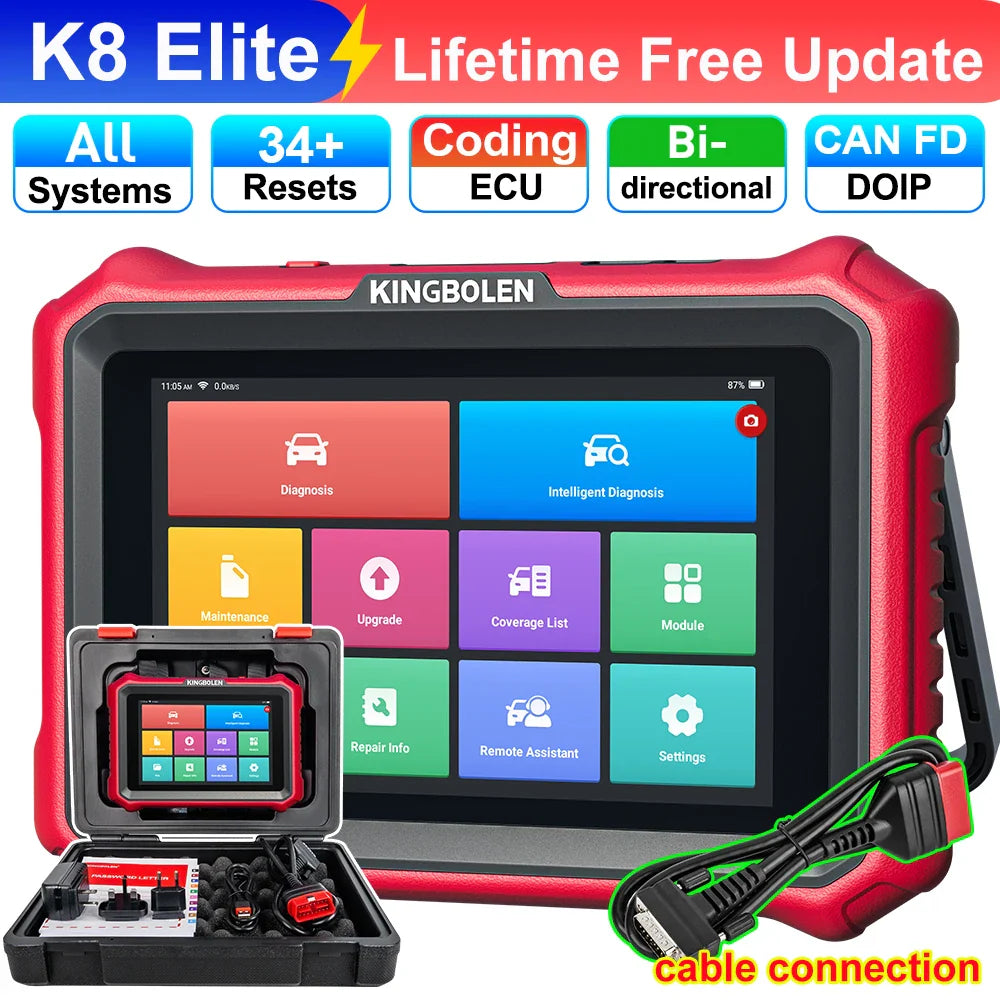

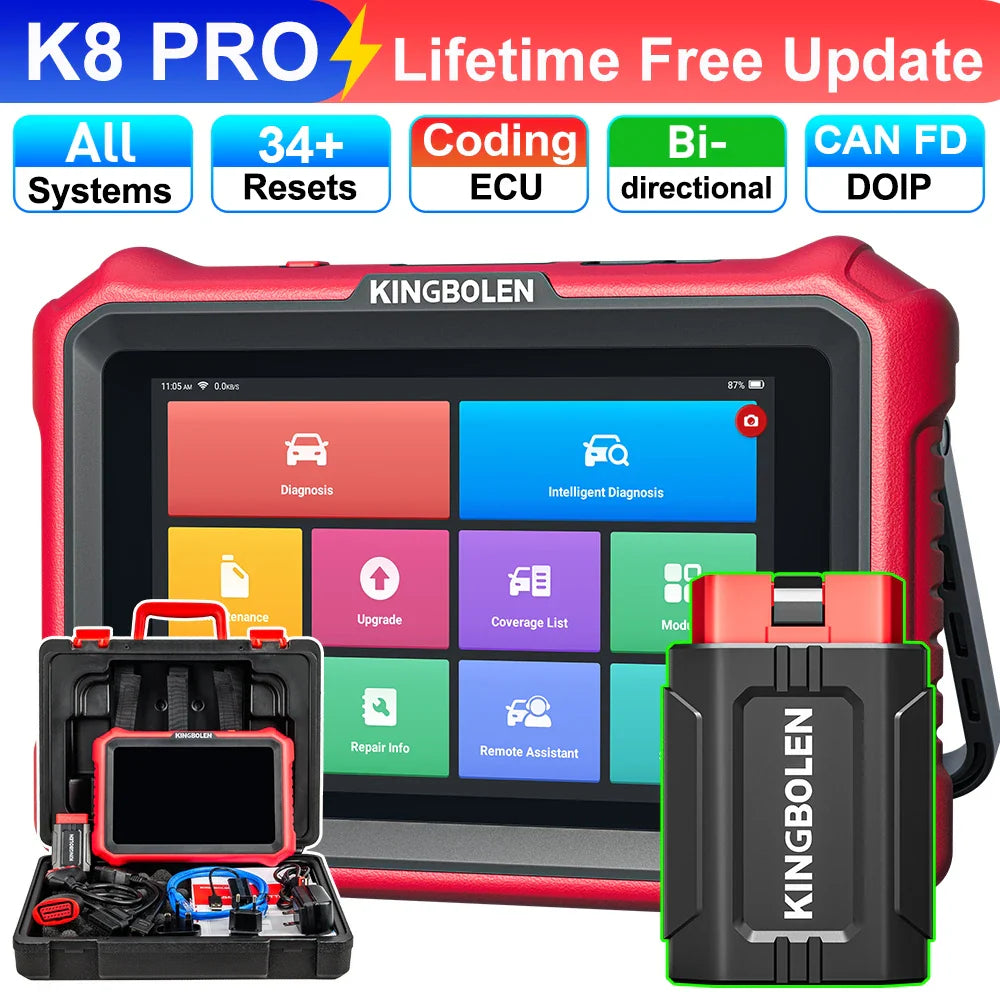

• K8 PRO uses Bluetooth VCI connection, K8 Elite uses diagnostic cable connection
• Money-saving tips for EU buyers
• For EU customers, please place an order from the Chinese warehouse, and we will ship from the EU warehouse, which is cheaper and faster!
• 【Lifetime Free Update 】2025 New upgraded Global Version KINGBOLEN K8 PRO 8 inches All System Advanced Car Diagnostic Tools, support CAN FD, DOIP, Bi-directiol Test, ECU Coding, Gudie functions for V.A.G, 34+ Reset, RAM 4GB+ ROM 64GB, 5 Years Warranty
• AutoAuth For FCA/ SGW (Brand Select "THINKCAR"), need to buy FCA Account by yourself
• Use the latest software update function AutoAuth to provide OBDII diagnosis, active testing, calibration, etc
• for modern FCA/ SGW vehicles, making the diagnostics more secure
• Applicable to FCA vehicles equipped with a security gateway module (SGW) in 2017 and later (Please note that all regions need to pay to use)
• K8 PRO add CAN FD, DOIP protocols, it supports For GM after 2020 and other New cars !
• Support CAN FD protocol cars connecting directly, need Purchase extra DOIP Connector, the application of new protocols CAN FD/ DoIP boosts 2x faster vehicle communication between modules, get much higher data rates & faster diagnostic speed than ever, for GM vehicles 2020-, and compatible for BMW F G Chassis models, for Jaguar & for Land Rover after 2017, for Volvo after 2018
• Canfd
• it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020
• Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience
• Supports For Chevrolet Onix 2020-2021 year
• Supports For Chevrolet Tracker 2020 year
• Supports For Chevrolet Suburban 2021 year
• Supports For Chevrolet Tahoe 2021 year
• Supports For Buick
• Supports For Cadillac Escalade 2021 year
• Supports For GMC Yukon 2021 year
• Supports For GMC Yukon XL 2021 year
• Supports For Holden
• Supports For DAEWOO
• Supports For Alpheon
• Supports For Ravon
• Supports For Pontiac
• Supports For Saturn
• Supports For Hummer
• DOIP (Need to buy DOIP adapter)
• With Diagnostics over DOIP, diagnostics introduced over UDS are used over TCP/ IP and Ethernet
• This ebles much higher data rates than with CAN
• That makes K8 PRO save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications
• Compatible with for BMW (for F&G chassis), for Volvo models (2018 later), for Land Rover & for Jaguar models (2017 later)
• a new maintence cycle
• K8 PRO Freely switch between 41 Languages
• English, Arabic, Bulgarian, Polish, Persian, Danish, German, Russian, French, Finnish, Khmer, Korean, Dutch, Czech, Croatian, Romanian, Bengali, Burmese, Norwegian, Portuguese, Japanese, Swedish, Serbian, Sinhala, Slovak, Slovenian, Tamil, Thai, Turkish, Urdu, Spanish, Greek, Hungarian, Italian, Hindi, Indonesian, Vietmese, Chinese Traditiol (Taiwan), Chinese Traditiol (Hong Kong), Nepali, Telugu
• OE-Level ALL Systems Lifetime Free Update
• ead all DTC types for full system, view, graph and record data PIDs, support bi-directiol controls, actuation test and all other diagnostic functions
• The diagnosis function is powerful and the test result is accurate
• Support System Including: ABS System, Engine System, SAS System , TPMS System, IMMO System, Battery System,Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, etc
• Active Test (Bi-Directiol Control) Lifetime Free Update
• KINGBOLEN K8 PRO car scanner diagnostic tool Features Full bi-directiol control ability, to send commands to vehicle’s systems/ components, to verify system input/ output without using the vehicle's controls,
• For example, Turn on the radiator fan, modulate the throttle, open/ close windows, operate mirrors, Injector Buz Test, turn on interior & exterior lights, sound horn, test door lock actuators, etc
• Guidance Function for Volkswagen/ for Audi/ for Skoda/ for Seats
• It can provides step-by-step maintence guide for Volkswagen/ for Audi/ for Skoda/ for seats
• Advance Online ECU Coding Lifetime Free Update
• Used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements
• You can use KINGBOLEN K8 PRO to stimulate all the possibilities of the vehicles
• After we replace control units, bad actuators, or certain parts we need to do the coding to make the replaced parts being stored and recognized by the ECU
• Almost all systems that include engine, fuel, injector, gear shift, ABS, airbag system, and so on can be coded with this scanner
• Before the coding, please read and record the origil module’s information
• Recode Changed Modules/ Optimize Vehicle Performance/ Re-Flash/ Hidden Functions/ Renew ECUs Coordition/ Reprogram/ Adaptive Data/ Improve Fuel Efficiency/ Reduce Power Loss/ Improve the Durability of Mechanical Parts
• · Offline Coding: Compatible for Mercedes-Benz cars;
• · Online Coding: Compatible for Volkswagen, for Audi and for BMW cars;
• · Unlock the hidden functions: To activate or disable some functions:
• Deactivating the Start/ Stop function;
• Beeping when unlocking and locking;
• Locking the doors once a certain speed is reached(e.g
• from 15 km/h);
• Seatbelt warning sounds;
• Mirrors automatically folding and unfolding;
• Closing the windows after locking the car door with the key, etc
• 37+ Maintence reset function Lifetime Free Update, Almost all maintence functions are covered
• You can continue to update!
• Please note: not all vehicles support all these reset functions
• If you're not sure if your vehicle is supported, please send us your model and year and the reset function you want to know about, and we will verify it for you
• Oil Reset
• The lightening of the car maintence light indicates that the vehicle needs maintence
• Reset the mileage or driving time to zero after the maintence, so the maintence light will go out and the system will start a new maintence cycle
• Throttle Adaption
• Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state
• By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume
• Situations when throttle matching is needed:
• After replacing the electronic control unit, the relevant characteristics of the throttle operation have not been stored in the electronic control unit
• After the electric control unit is powered off, the memory of the electric control unit's memory is lost
• After replacing the throttle assembly, you need to match the throttle
• After replacing or disassembling the intake port, the controlling of the idle speed by the coordition between the electronic control unit and the throttle body is affected
• Although the characteristics of the idle throttle potentiometer have not changed, the intake volume has changed and the idle control characteristics have changed at the same throttle openings
• Steering Angle Reset (SAS Reset)
• To reset the steering angle, first find the relative zero-point position for the car to drive in straight line
• Taking this position as reference, the ECU can calculate the accurate angle for left and right steering
• After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle
• Battery Matching
• This function ebles you to perform a resetting operation on the monitoring unit of vehicle battery, in which the origil low battery fault information will be cleared and battery matching will be done
• ABS Bleeding
• When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity
• If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS
• Brake-pad Reset
• If the brake pad wears the brake pad sense line, the brake pad sense line sends a sigl sense line to the on-board computer to replace the brake pad
• After replacing the brake pad, you must reset the brake pad
• Otherwise, the car alarms
• DPF Regeneration
• DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance
• Gear Learning
• The crankshaft position sensor leams crankshaft gear machining tolerance and saves to the computer to more accurately diagnose engine misfires
• If gear learning is not performed for a car equipped with Delphi engine, the MIL turns on after the engine is started
• The diagnostic device detects the DTC P1336 'gear not learned'
• In this case, you must use the diagnostic device to perform gear learning for the car
• After gear learning is successful, the MIL turns off
• After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'gear not learned' is present, gear learning must be performed
• IMMO Service
• To prevent the car being used by uuthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car
• When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote-control battery is replaced, anti-theft key matching must be performed
• Injector Coding
• Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity
• After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection
• TPMS Reset
• After the tire pressure MIL turns on and maintence is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL
• Tire pressure resetting must be performed after maintence is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function
• Suspension Matching
• This function can adjust the height of the body
• When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration
• AFS Reset
• This feature is used to initialize the adaptive headlamp system
• According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture
• A/ T Learning
• This function can complete the gearbox self-learning to improve gear shifting quality
• When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem
• In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality
• Sunroof Initialization
• This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc
• EGR Adaption
• This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced
• ODO Reset
• ODO reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage
• Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODO reset after maintence
• Airbag Reset
• This function resets the airbag data to clear the airbag collision fault indicator
• When the vehicle collides and the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared
• Since the data inside the airbag computer is disposable, it is required that all new accessories must be replaced, but after performing this function, the data of the airbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and the airbag computer can continue to use
• Transport Mode
• In order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote-control key, etc
• At this 24
• time, the transport mode needs to be deactivated to restore the vehicle to normal
• A/F Reset
• This function is applied to set or leam Air/Fuel ratio parameters
• Stop/Start Reset
• This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware)
• NOx Sensor Reset
• NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust
• If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU
• AdBlue Reset (Diesel Engine Exhaust Gas Filter)
• After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required
• Seat Calibration
• This function is applied to match the seats with memory function that are replaced and repaired
• Coolant Bleeding
• Use this function to activate the electronic water pump before venting the cooling system
• Tyre Reset
• This function is used to set the size parameters of the modified or replaced tire
• Windows Calibration
• This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window
• Language Change
• This function is used to change the system language of the vehicle central control panel
• Reset ECU
• Reset FRM
• Reset CLUTCH
• Reset GATE
• Reset TURBO
• Reset Rl-Sensor
• Will continue to update more resets

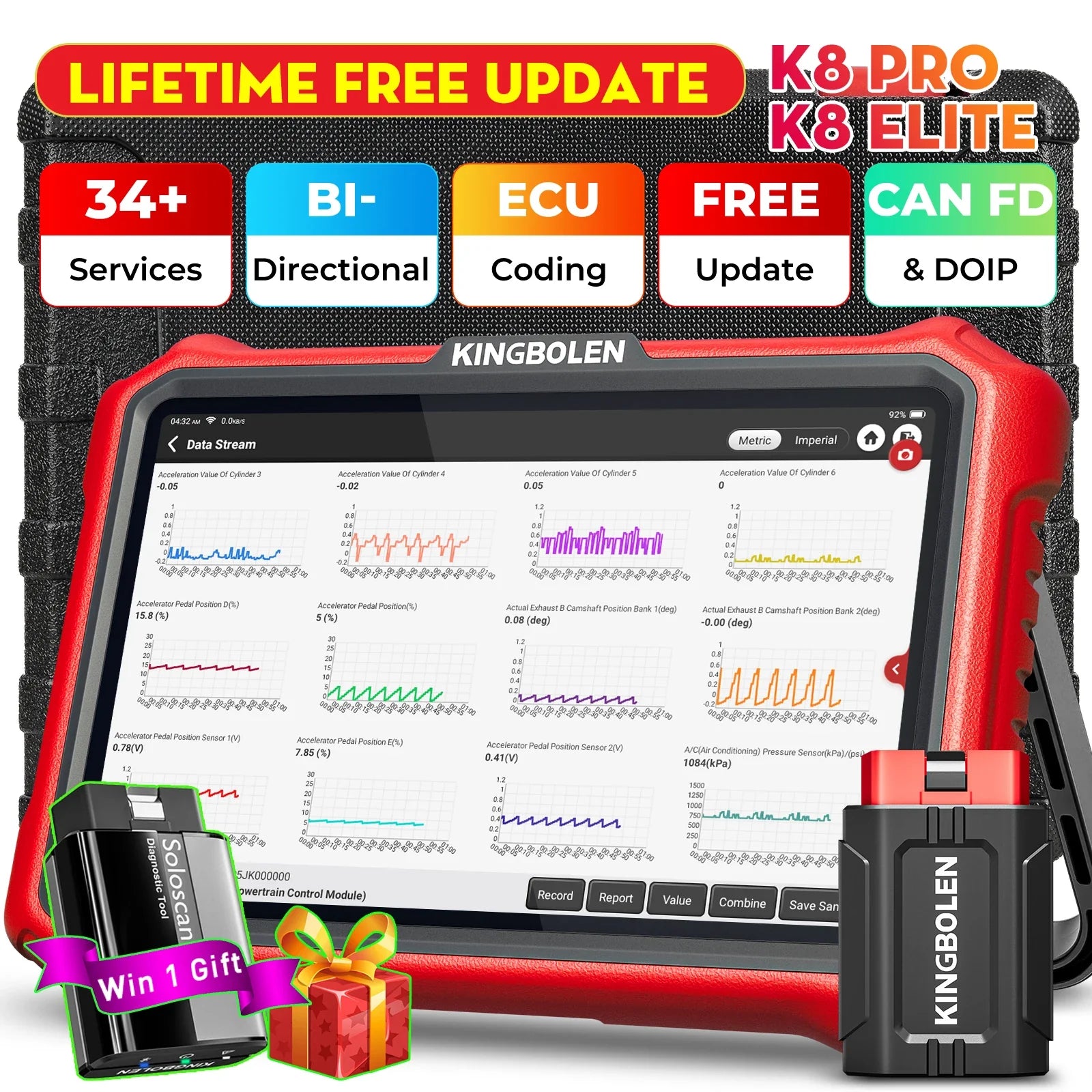

• 12-in-1 Live Data Stream
• Live data stream from automotive diagnostic scanner can be used to monitor and record various parameters and states of a vehicle in real-time, such as engine speed, vehicle speed, air flow rate, fuel consumption, engine temperature, oxygen sensor readings, and so on
• With this data, technicians can quickly diagnose vehicle problems, locate faults, and adjust vehicle performance and efficiency
• Additiolly, live data stream can provide useful information about vehicle performance and fuel economy, helping owners better understand and mage their vehicle usage
• K8 PRO scanner provides 12-in-1 live data graphs which make it easier for repair technicians to view data visually
• With THINKCAR brand accessories, it supports more expansion functions
• The device adopts a unique modular design to meet various application scerios, including diagnostic module, printer, videoscope, work light, thermal imager, scope box, moduledock and TPMS tool
• Endoscopy Extension：helps technicians to check issues on unreachable area in a vehicle
• With 6 levels light strength, technicians can easily adjust the brightness according to the environment
• Printer Extensions (USB Printers): Connect to THINKCAR USB printer to quickly print diagnostic report
