202 Universal Electric Compressor Car A/C 12V/24V Truck Air Conditioning Systems Air Conditioner Unit For Camper Van

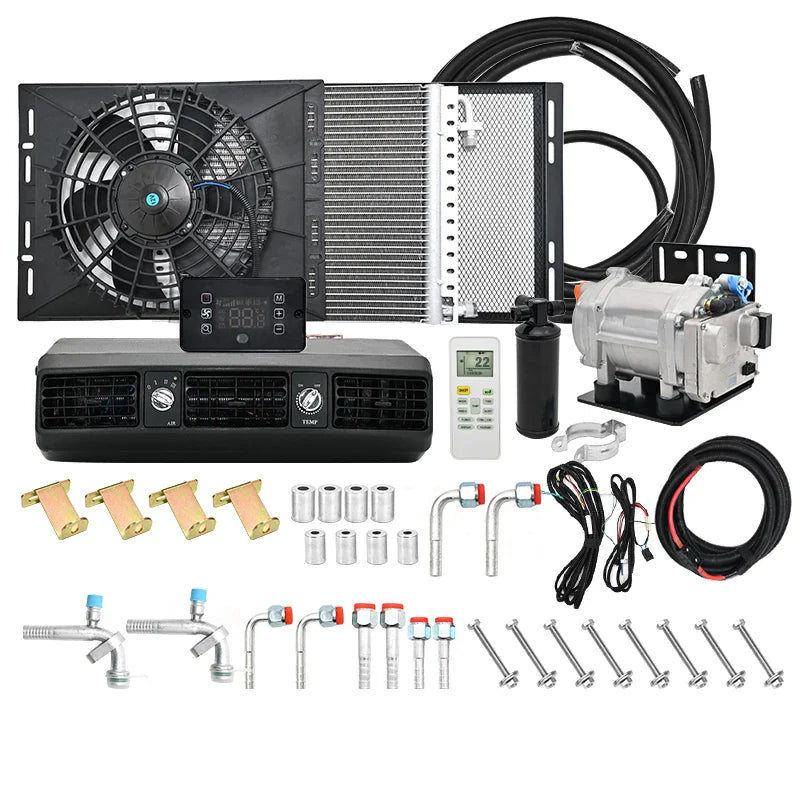

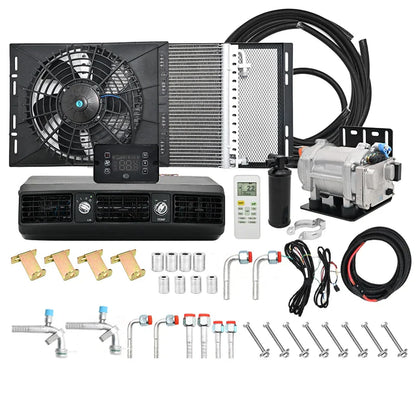

This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want It runs by battery(Generator) Even you got your engine stalled, you still can use this air conditioner Low noise, energy-saving, environmental protection is the choice for you

• It will help you save thousand dollars on gas every year
• Pay attention:
• PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts!
• We couldn't take responsibility for you if you damage the compressor
• Remember !
• Please screw tightly of the controller board
• Otherwise the board will get burnt
• Generator (battery) request:
• 12V compressor require generator ampere over 100a
• 24V compressor require generator ampere over 70A
• About vehicle battery
• If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough
• For example, 12V compressor current about 45A
• So one new and full charged 45A battery can run the compressor for one hour

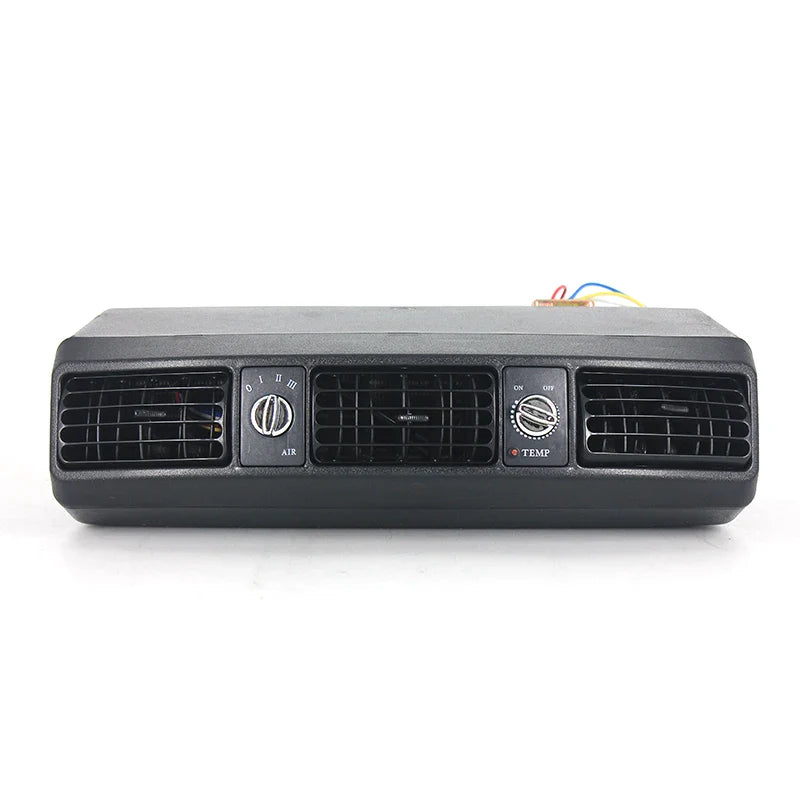

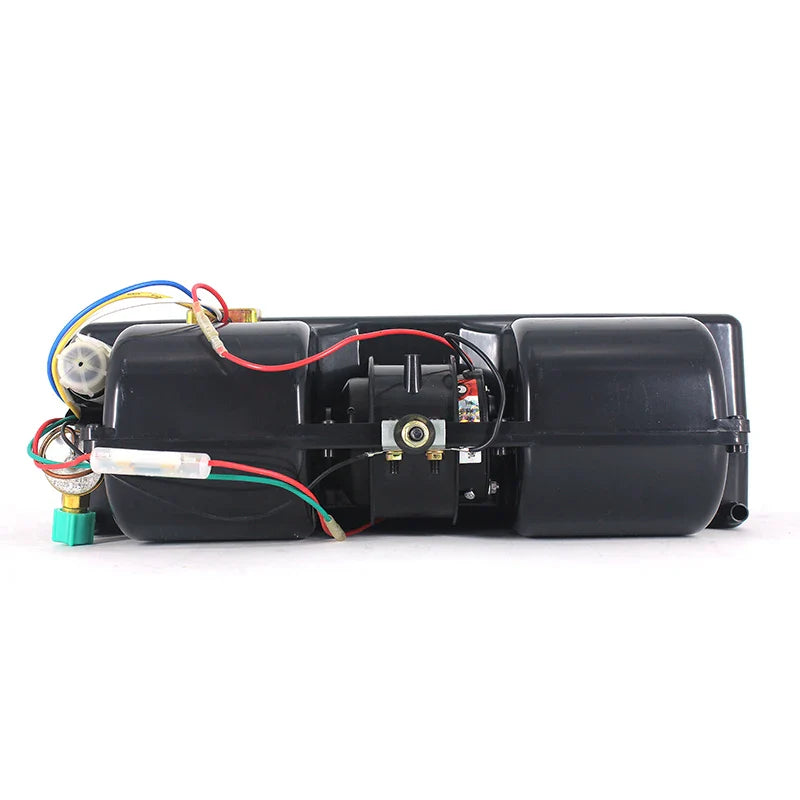

• Evaporator:
• Cooling capacity: About 137000Btu/h
• Evaporator coil: 32 passe 4way toda a bobi do alumínio
• Evaporator blower motor power: 80-100W
• Switch: Temperature and 3-speed blower switch

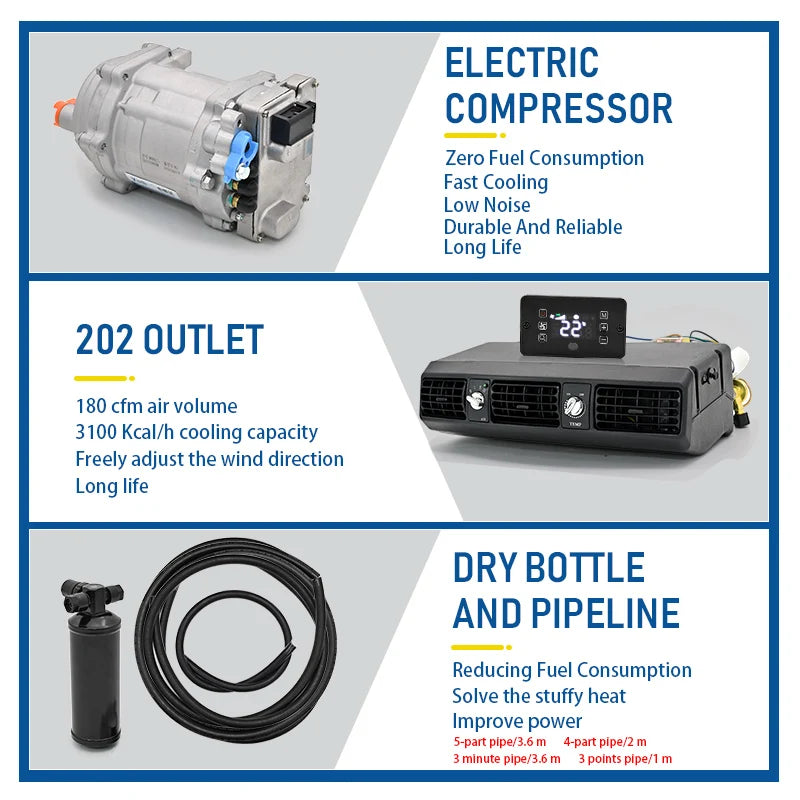

• Compressor Data:
• Compressor type: semi-hermetic horizontal scroll compressor
• Material: aluminium alloy
• VoltageDC-12V
• Displacement20cc/r
• OilRL68H(POE)) 120ml
• Refrigerant (Gas)R134a
• Operating voltage9.5V-15V
• Variable frequency voltage4V-9V
• Rated power:650W~800W
• Refrigeration capacity>2200W
• Speed range1000-2500rpm
• Overcurrent protection80A
• Cop3.3
• Max Noise<70dB(A)
• Suction pipe inner size∅18.3mm
• Discharge pipe inner size∅15.5mm
• Led blinking：
• Blinking 1 times, pause 1 second: Standby mode
• Fast blinking 2 times, pause 1 second: Excessive current, Over 50A
• Fast blinking 3 times, pause 1 second: Locked rotor protection
• Fast blinking 4 times, pause 1 second: Undervoltage protection
• Fast blinking 6 times, pause 1 second: Electric fan fault
• Fast blinking 7 times, pause 1 second: Motor lack of phase
• Please check if the motor got burnt and connection is correct or not
• Fast blinking 8 times, pause 1 second: Compressor over heated protection
• Fast blinking 9 times, pause 1 second: Pressure switch protection

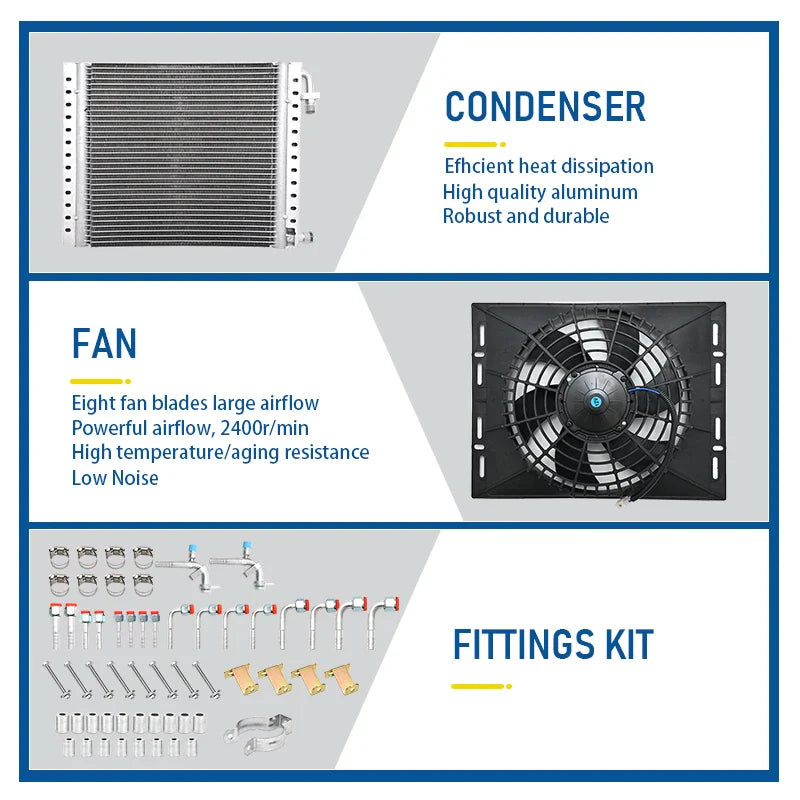

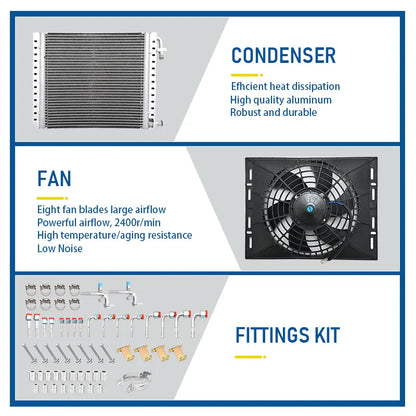

• Condenser Outside unit:
• Power : 120w

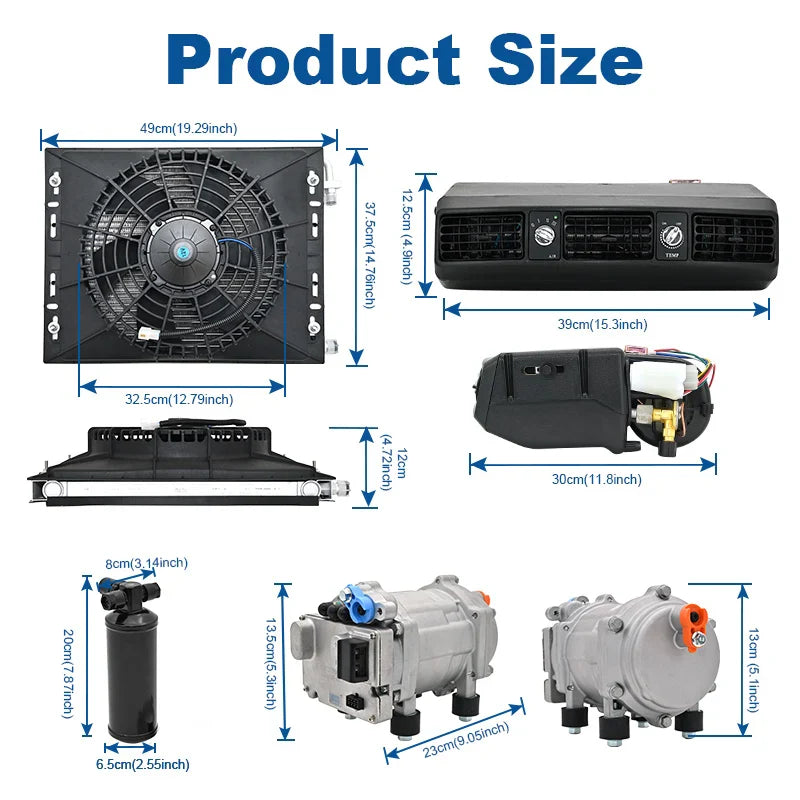

• Outside Unit Dimension (Inch): 19.29x 14.76 x 4.72 inch
