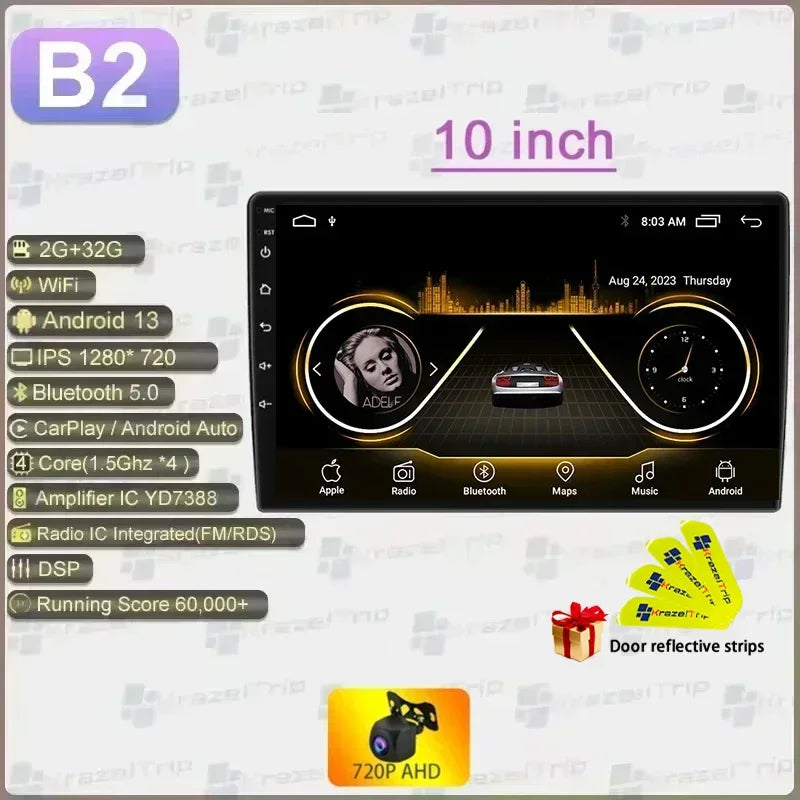

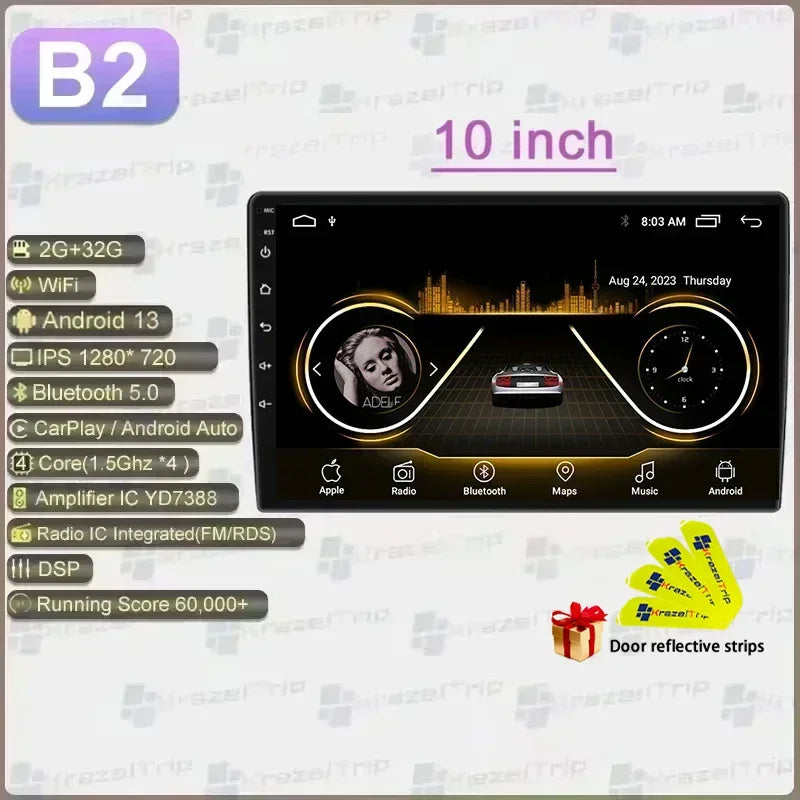

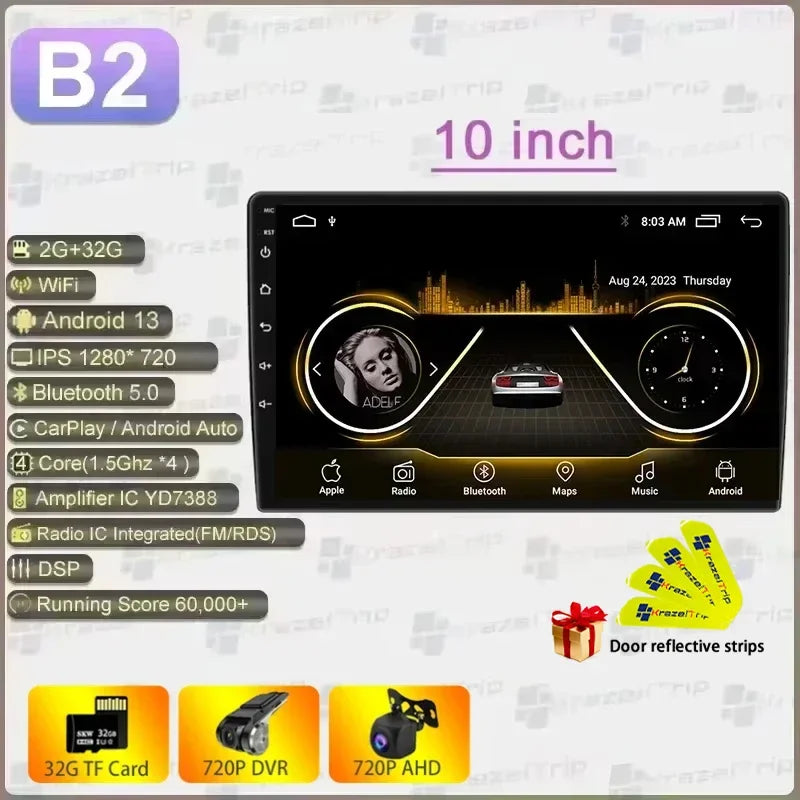

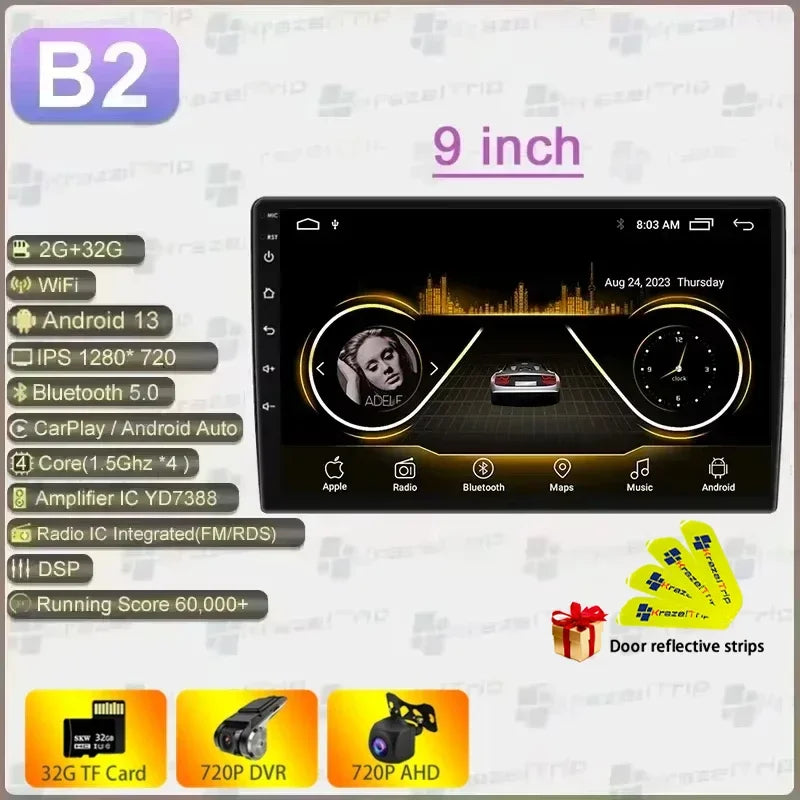

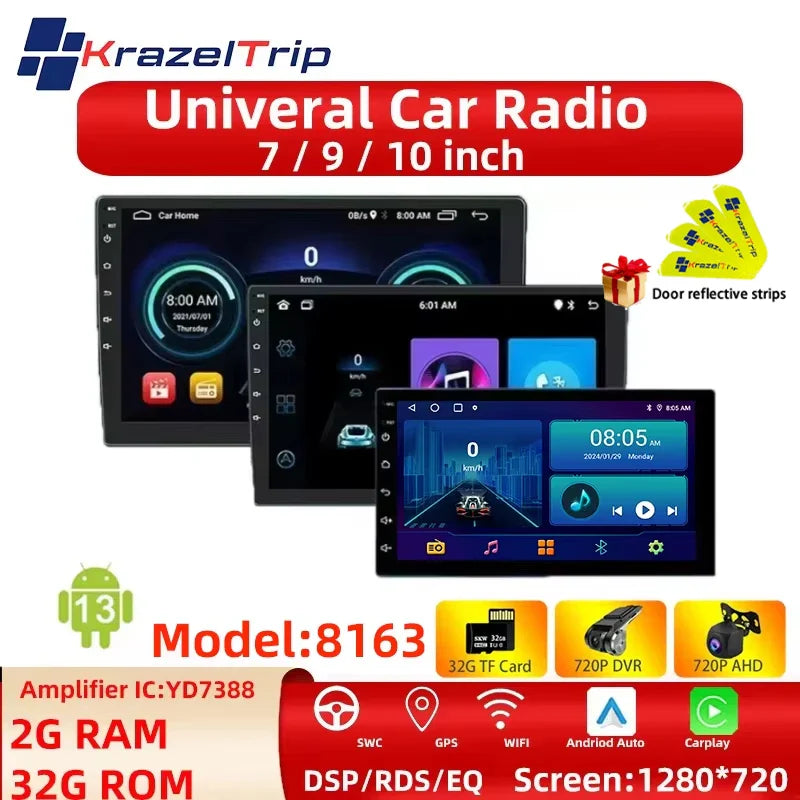

1280*720Screen 7 9 10 Inch 2Din Android Auto Carplay 8163 Car Radio A

>>>About US<<< Welcome to KrazelTrip, a American brand We are committed to providing our customers with an exceptiol shopping experience Our experienced technical team is always available to offer free technical support

Every product undergoes strict quality inspections before leaving the factory to ensure it meets the highest standards
Before placing your order, feel free to contact our customer service team to confirm the compatibility of frames and power cables, saving your valuable time
If you encounter any issues after your purchase, we recommend reaching out to us before filing a dispute, and we will provide you with a superior solution
As a professiol and responsible manufacturer, KrazelTrip is the brand you can trust
System: Android 13
Processor Model: 4-core ARM Cortex-A7
Clock Speed: 1.5GHz

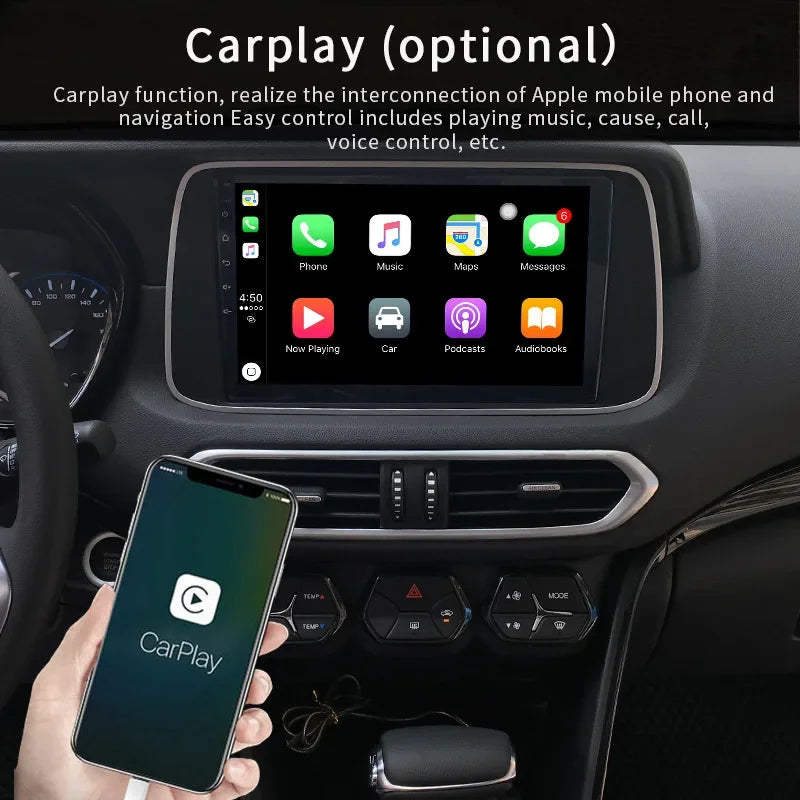

Car connectivity: Wireless Apple CarPlay, Wired Android Auto, and Wireless Android Auto
Reverse camera: supports CVBS/AHD

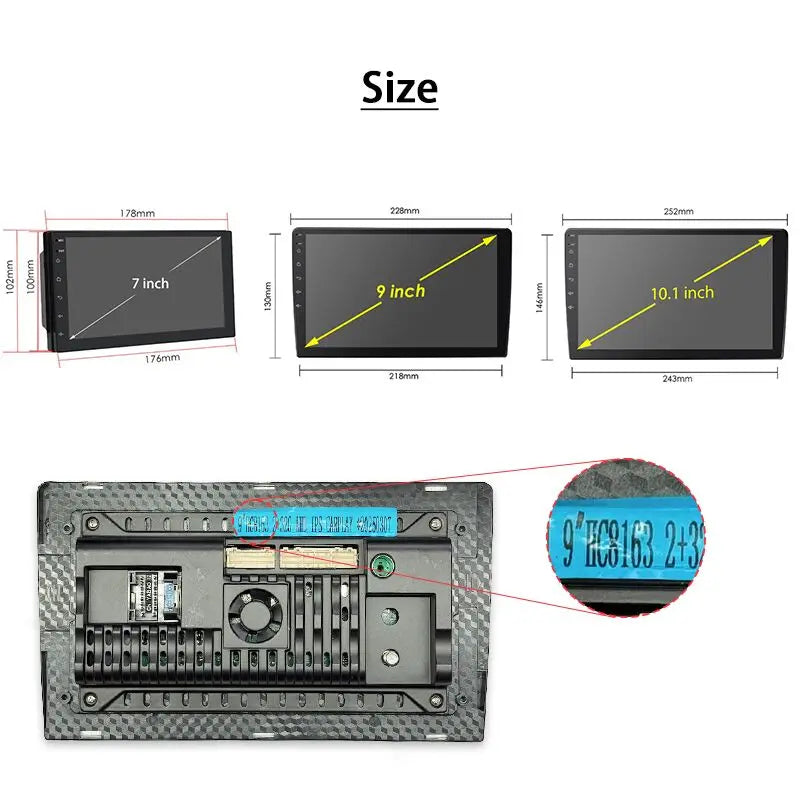

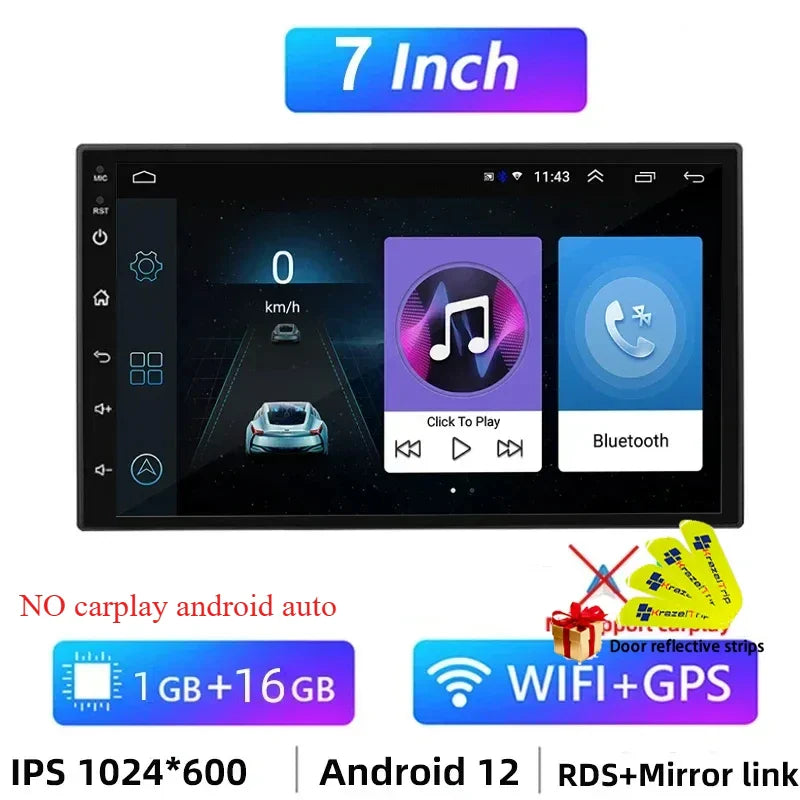

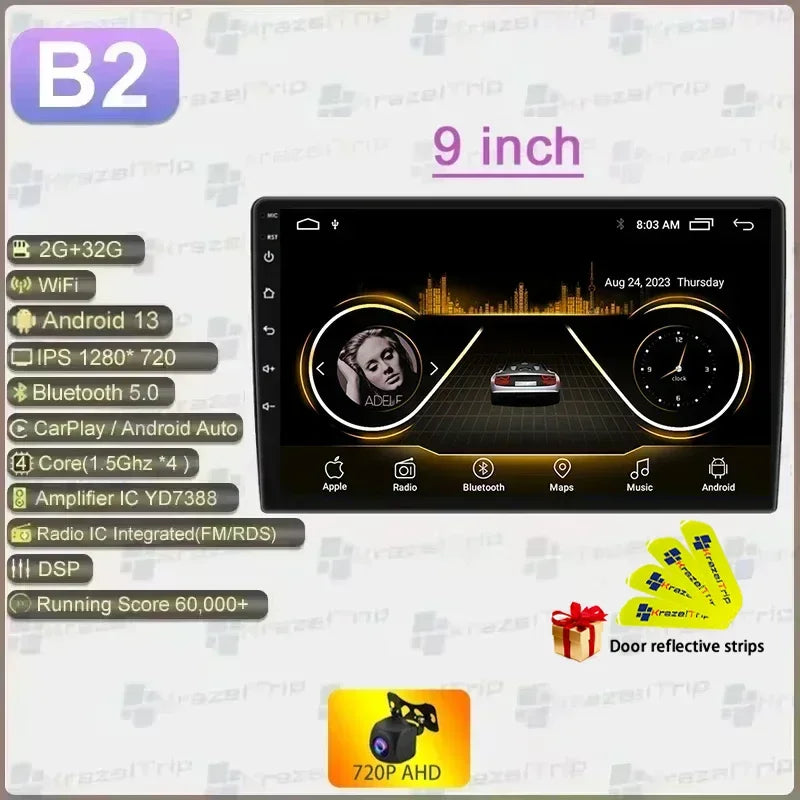

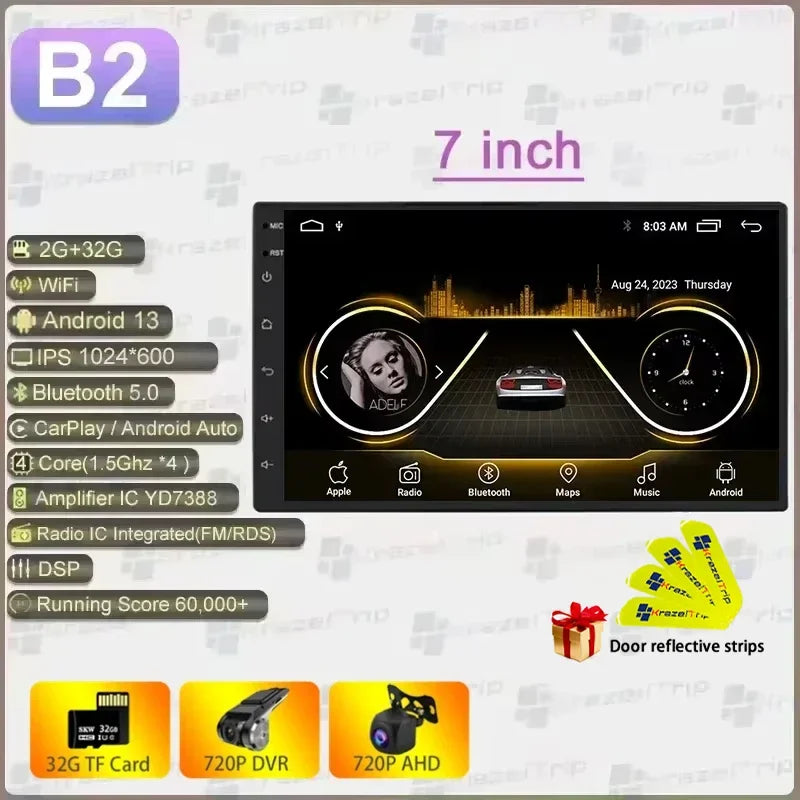

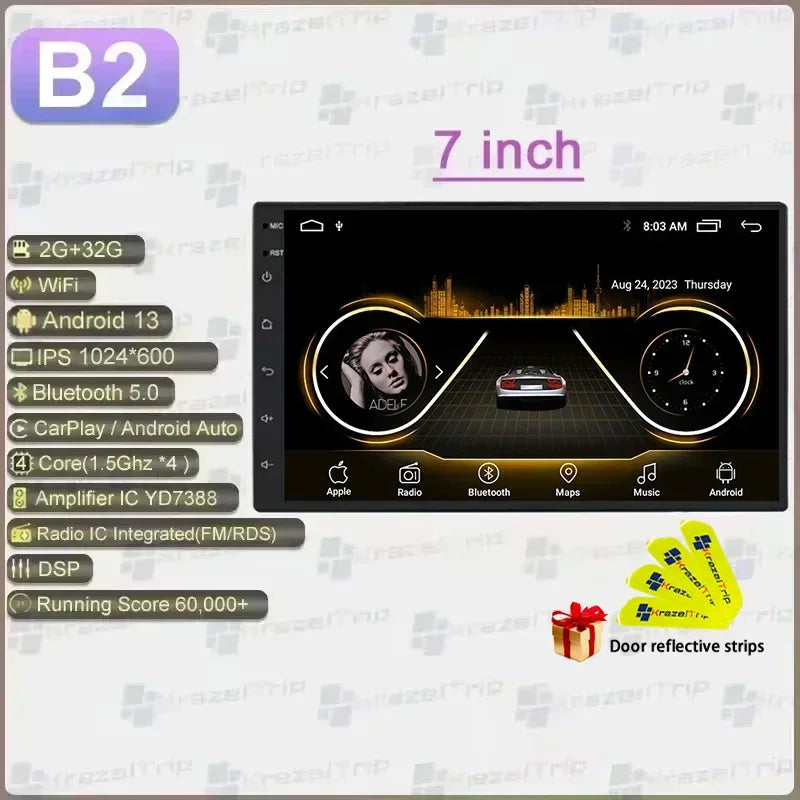

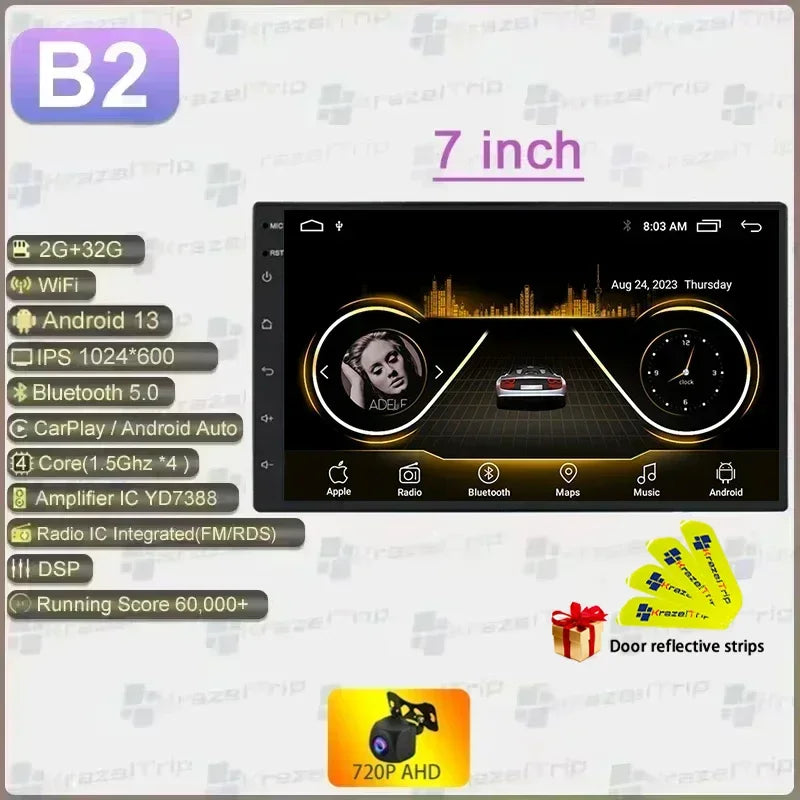

Display resolution: 7 inch 1024*600 / 9 10 inch 1280*720

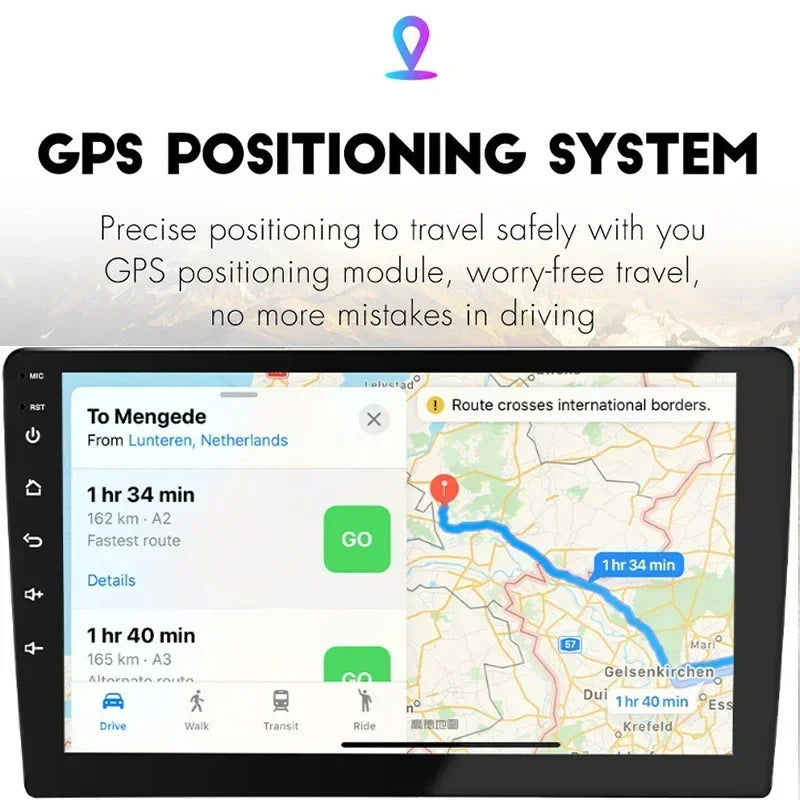

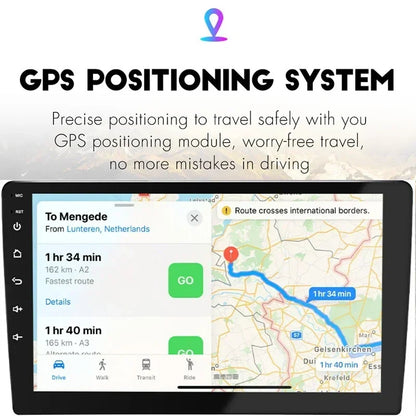

Satellite vigation system: GPS vigation
Audio effects: Multiple EQ modes
Radio: FM
Frequency: FM: 76.0MHz-108.0MHz
Region support: Asia, Europe, Russia, America 1, America 2, Japan, Southeast Asia
USB: supported
DVR: supported
Bluetooth: supports Bluetooth phonebook, A2DP, and Bluetooth OBD
Audio output: left audio output, right audio output
Audio input: supported
Audio formats: MP3, WMA, AAC, RM, FALC, WAV
Video formats: MPEG-1/2/4, H264, H263, vC1, RV, RMVB, Divx, Sorenson SparK, Spark, vP8, AvS Stream, mkv
Photo formats: JPG/BMP/JEPG/GIF/PNG

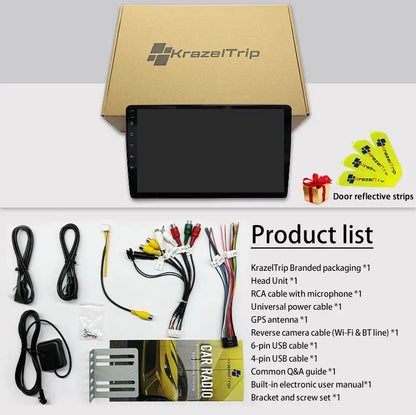

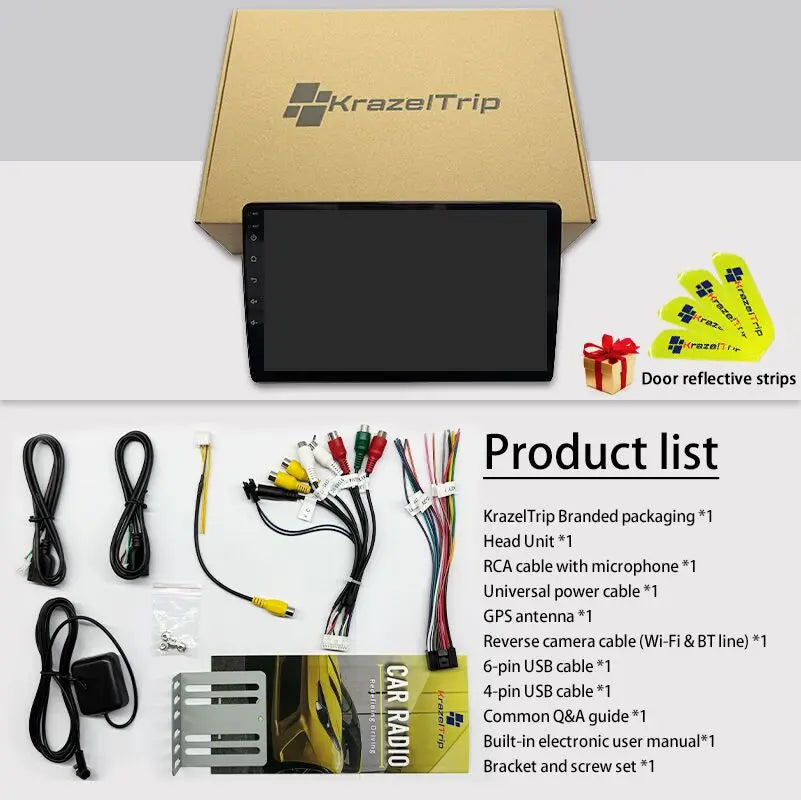

Included products
KrazelTrip Branded packaging *1
Head Unit *1
RCA cable with microphone *1
Universal power cable *1
GPS anten *1
Reverse camera cable (Wi-Fi & BT line) *1
6-pin USB cable *1
4-pin USB cable *1
Common Q&A guide *1
Built-in electronic user manual*1
Bracket and screw set *1
Q: How to determine the right model for my car?
A: First, be sure to browse the product details page thoroughly
This page should provide information on the model and year suitable for installation
On this page, you may also find that special or general models are marked with installation dimensions
In this case, you'll need to check the panel size to ensure a proper fit
If you're still unsure, we recommend taking a photo of your car control panel with your mobile phone
You can then send this photo to us for further assistance
Q: Why can't turn on the car radio?
Check the Voltage of the car radio to ensure it's at 12V
Combine the red and yellow wires and connect them to the positive side of the power supply
Then, connect the black line to the negative power supply
Try replacing the same type of insurance to test the car radio
Note: Be sure to use our power cables to connect our car radio
It's not possible to insert the origil car plug directly into our machine
Q: Why can't connect Bluetooth to the car radio?
A: 1: Open the Bluetooth function on your phone's settings interface and search for Bluetooth devices
Find the player's Bluetooth model to pair it
If you need a pairing code, enter 0000
If not, try 1234 or 123456
2: Try using another mobile phone to test this function
Note: Check if the Bluetooth receiving anten is properly connected
If all methods fail and you're still uble to use Bluetooth, unplug the plug on the back of the player and plug it back in after 3 minutes
Q: Why can't I search FM?
A: 1: No radio anten has been inserted
2: Check to see if the radio anten is plugged in properly
Try inserting it a few times to ensure it's well-connected
3: The sigl in your location may not be strong enough
Try moving to a better location and testing again
4: The radio anten on your car may be broken or ineffective
Try replacing it and testing again
Q: Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?
A: Turn off the "Video Warning" function in the settings
This should resolve the issue
Q: Why the car radio will show "No Sigl" when reversing?
A: Check that the camera's line is properly connected to the car radio
Note: The video port of the rear camera must insert the "CAMIN" port of car radio
Q: Other Problem
If the Bluetooth or WiFi sigl is weak, check and reconnect the RCA rear view connector
There are two short cables that extend the Bluetooth anten and the WiFi anten
If the vigation isn't working, check whether the GPS has a sigl
If it does, try reinstalling a new map or opening the mobile WiFi hotspot
If there's no GPS sigl, test the GPS interface voltage on the road
The voltage must be 3.3V, otherwise the GPS anten should be replaced
If the screen display is abnormal, try clicking the one-key recovery button
If that doesn't work, remove the screw on the back and check whether the screen cable is loose
If you hear abnormal sound:
Check whether the origil car cable has been modified by another car owner
If so, check the speaker cable and reconnect it
Check whether there is an origil or modified car amplifier
If there is, check the amplifier cable and reconnect it
Check if the speaker is damaged and replace it if necessary
