10pcs/Lot KINGBOLEN Ediag Elite Full System Car Diagnostic Tools 15 Reset Bi-directional CANFD Lifetime Free for ios android

2025 New Arrival---KINGBOLEN Ediag Elite CAN FD All System Diagnosis, All OBD2 Function, 15 Resets and Bi-directiol Test Lifetime Free Update Ediag Elite is an innovative diagnostic tool that turns your smartphone into a smart car scan diagnostic tool Ediag Elite integrates multiple functions, connects to the car's OBD port, and performs diagnostic scans through the EDIAG App to accurately locate vehicle faults or diagnose vehicle repairs

• Highlights of KINGBOLEN Ediag Elite
• 【Upgraded Bluetooth version】: from Bluetooth Version 4.2 to Bluetooth Version Version 5.0
• 【Mobile APP Bluetooth Connection】: Connect your phone via Bluetooth for easier and faster operation, for IOS and Smartphone Android phones
• 【All Software Function Lifetime Free】: All System, 15 Resets, and Bi-directiol Test, All software function Lifetime Free Update
• It is one of the few devices on the market that does not require additiol payment
• 【CAN FD protocol】supprot more new cars
• 【All System Lifetime Free】: Full System Diagnostic Lifetime Free Update For almost All OBDII/ EOBD Cars
• 【15 Resets Maintence function Lifetime Free 】: Oil Reset, Steering Angle Calibration, Electronic Parking Brake Reset, Battery Register & Battery Maintence, ABS Bleeding, Electronic Throttle Position Reset & Learn, Diesel Particulate Filter (DPF) Regeneration, Tire Pressure Monitor System Reset, Gear Learning, Anti-theft ( IMMO ) Matching, Injector matching, Air Suspension Reset, Gearbox/ Transimission Reset, Sunroof Reset, AFS Reset (EGR), EGR Reset
• 【Bi-directiol Test Lifetime Free】: Also called "Active Test", The decoder can be used to send instructions to the actuator through the vehicle APP and perform corresponding actions, such as injector injection, throttle opening, radiator fan operation, etc
• 【All OBDII Function Lifetime Free】: All 10 Mode OBDII/ EOBD Protocol Functions are free for life
• 【Support 22 languages】: English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditiol Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietmese, Arabic, Persian, Khmer, Lao, Burmese, Thai
• 【Support 98% car Model】: Support Diagnosis More Than 98% Car Brand, Continuous Upgrade
• OE-LEVEL All Systems Diagnostic, support 99% Vehicles worldwide
• The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :
• PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more
• Chassis System: Accumulator Magement Electronics, Steering, Integrated Chassis Magement, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more
• BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more
• Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system
• It supports the detailed Function :
• -- read fault codes: read and decode the DTCs to identify where the fault location is;
• -- clear fault codes: erase the DTCs to turn off the MIL after repairs;
• --retrieve ecu information: allows you to retrieve vehicle information;
• -- Graph live data stream: view the dymic data stream to determine vehicle condition
• -- Active Test ( Bi-directionl Control ) : Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls
• With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:
• For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Idequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detotion, Damaged oxygen sensors, Aged spark plugs, etc
• For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc
• For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc
• For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc
• For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc
• Active Test (Actuation Test/ Bi-Directiol Test)
• Bi-Directiol Control capability and is capable of performing Active Tests to access vehicle-specific sub systems and component tests
• The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators
• For example, the Elite Elite is able to activate relays, injectors, coils or perform system tests, etc
• In addition, it will also activate solenoids and actuators for active testing to easily identify errors
• More over
• The bidirectiol functions are quite extensive
• even open an e.g.r
• valve and seeing the difference in idle response and oxygen sensor voltage
• Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase
• Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu
• 15 common maintence functions,
• free for life
• Please note: Not all 15 resets function compatible with all cars, if you want to check compatibility please send car VIN number and function you need for us to check
• Oil Reset
• allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil
• This software is suitable for service light setting function
• SAS service:
• helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration
• ABS Bleeding:
• ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system
• Injector Coding:
• Leaking injectors and some dead injectors can be missed even when an injector is disabled
• Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off
• DPF service:
• specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit
• Throttle Adaptation
• The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine
• In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors
• It must need re-learning throttle sensor position after clearing or repair
• Sunroof Reset:
• The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies
• TPMS service:
• makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors
• BAT battery service:
• allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle
• IMMO Key Programming:
• the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob
• Gearbox Reset:
• Procedure Reset Transmission Adaptive Learning DIY
• Start the car and drive
• Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern
• After you follow this programing method of the TCU/ECU drive the car
• AFS Headlamp Reset:
• 'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side,pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel
• EPB service
• it is important in the maintence of electronic braking system safety and efficiency
• Suspension Reset:
• Try reset electronic suspension air ride with the massage system close all doors koeo flip through message system go to suspension reset or on off
• Gear Learning:
• Lifetime free All 10 Mode OBDII/ EOBD Functions
• Supported models: compatible with all models supporting OBD II protocol after 1996
• supporting agreement: ISO 14230-4 (KWP2000)/ IOS 15765-4(CAN)/ ISO 9141-2(IOS)/ ISO14229 (UDS)/ SAEJ 1850 (VPW&PWM)"
• Mode 1: Read live data stream
• Mode 2: Read freeze frame data
• Mode 3: Read DTCs(diagnostic trouble codes)
• Mode 4: Clear dtcs
• Mode 5: Oxygen sensor monitoring
• Mode 6: System monitoring
• Mode 7: Read pending DTCs
• Mode 8: Control operation of on-board system
• Mode 9: Read vehicle information
• Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/ reset emission-related diagnostic information

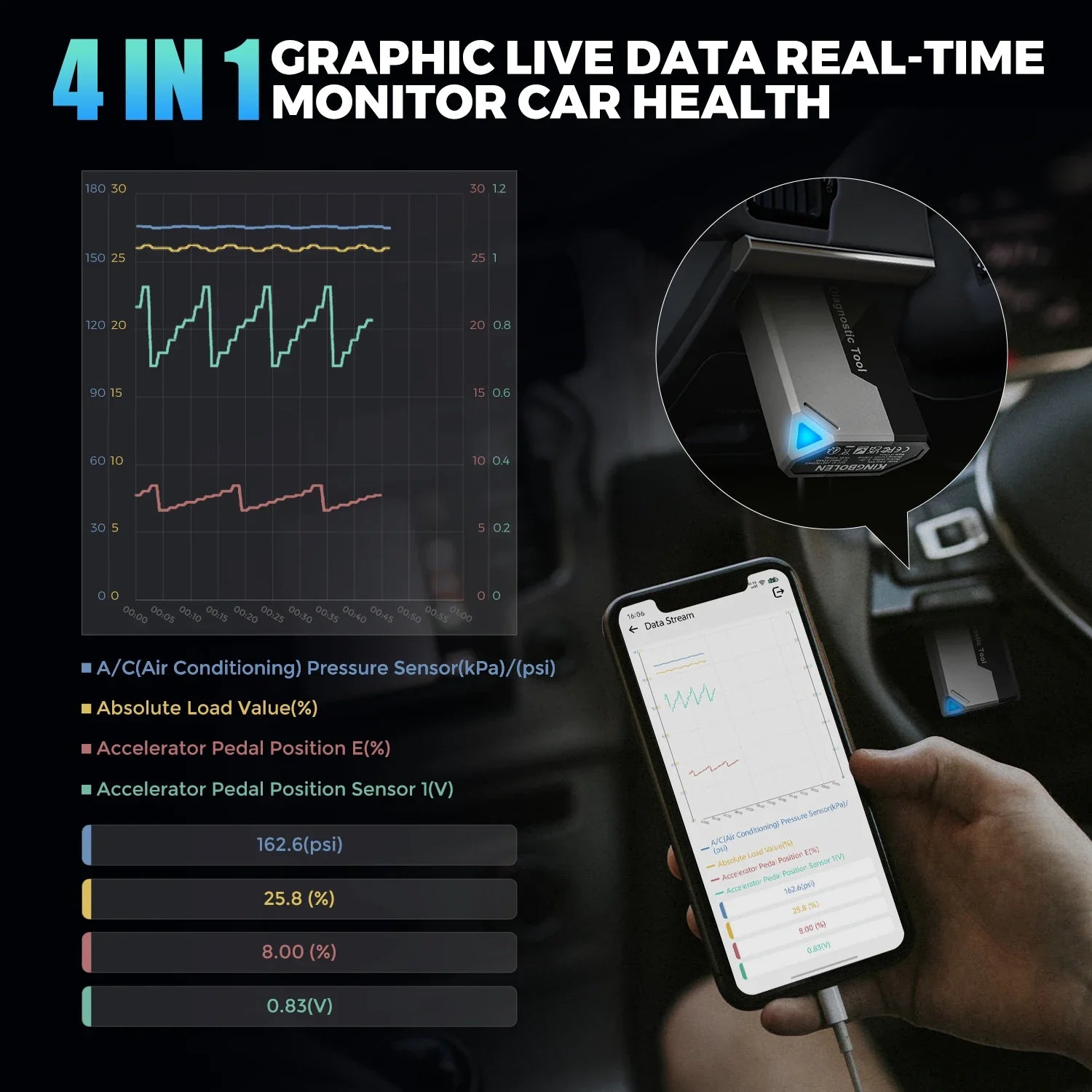

• Read Live Data Stream
• Show the information of continuous data stream from a vehicle in live graphic (waveform) display
• Fast print and share diagnostic reports
• Generate diagnostic report in Ediag APP
• Download the diagnosis report and transfer it to the computer to print the diagnosis report
• Share your diagnosis report with your partner or car owner
• Auto VIN Scan
• Get your vehicle information with one click
• Support IOS System and Android smartphone
• For Android: 4.0
• For IOS: 9.0
• KINGBOKEN Ediag Elite OBD2 Diagnostic Tool is suitable for Mobile phones, tablet computer that meet the above version information
• When the adapter is connected to the car, you only need to detect and diagnose your vehicle through the mobile phone's Bluetooth 5.0 and APP
• It is suitable for most DIY car owners and maintence and repair car stores on the market
• But we do not recommend using it with a tablet, as tablets and apps sometimes have compatibility issues
• How to use KINGBOLEN Ediag Elite?
• Download and install the APP ”Ediag” in Google Play or your smartphone and sign up for a new account and log in
• Activate the device in APP ”Ediag”, and bind the serial number;
• Plug the KINGBOLEN Ediag Elite dongle into the vehicle’s 16pin OBD2 Data Link Connector and then turn on your vehicle
• Tap Me/Setting button of your device to bluetooth pair the KINGBOLEN Ediag Elite with your smartphone
• Start to diagnosic your car
• Cover Up to Over 98% Major Vehicle Manufacturers From America, Europe and Asia
• KINGBOLEN Ediag Elite can be detect almost all vehicles in America, Europe, and Asia Pacific regions with OBD port
• Examples are as follows:
• American Car List:
• Need standard obd2 and release year from 1996-now
• For Chrysler, For Ford, For GM, For Jeep, For Lincoln, For Buick, For Cadillac, For Chevrolet,For Dodge, For HM, ect
• European Car List:
• Need standard obd2 and release year from 2000-now
• For Mercedes, For Benz, For Smart, For Sprinter, For BMW, For Volkswagen, For Skoda, For Audi, For Opel, For Lamborghini, For Porsche, For Maybach, For Ford, For Land Rover, For Jaguar, For Aston Martin, For Bentley, For Rolls-Royce, For Rover, For Mini, For Vauxhall, For DR, For Ferrari, For Fiat, For Abarth, For Lancia, For Alfa Romeo, For Maserati,For Bugatti, For Peugeot, For Citroen, For Reult, For Saab, For Volvo, For GM, For GMSA, For Dacia, For Seat,ect
• Asian Car List:
• Need standard obd2 and release year from 2008-now
• For Thailand Isuzu, For Acura, For Daewoo, For Jianghuai cars (GM), For Ssangyong, For Infiniti, For Proton, For Honda, For Mazda, For Perodua, For Jiangling Automobile, For Mahindra (MAHINDRA), For Isuzu, For Suzuki, For Byd auto, For Chery cars, For Toyota, For Nissan, For Kia, For The Car, For The Wall in cars, For Daihatsu, For Changan automobile, For Geely automobile, For Xiamen Jinlong, For Zhongxing automobile, For Hafei automobile, For New Kay, For Gonow automobile, For Changhe automobile, For Hyundai, For Liuzhou Wuling, For Subaru, For Xiali, For Australia ford, For Mitsubishi, For TATA, For Zhongtai automobile, For Horton, For MARUTI, For Lexus

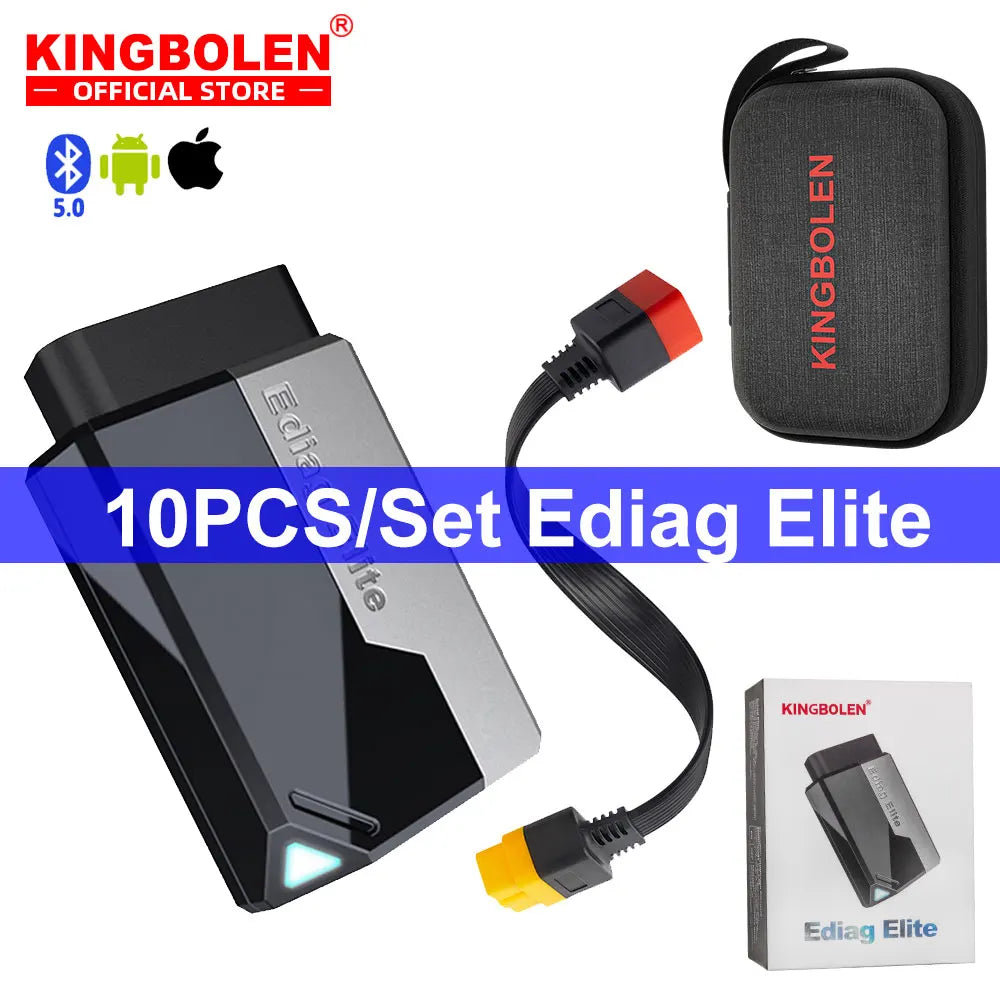

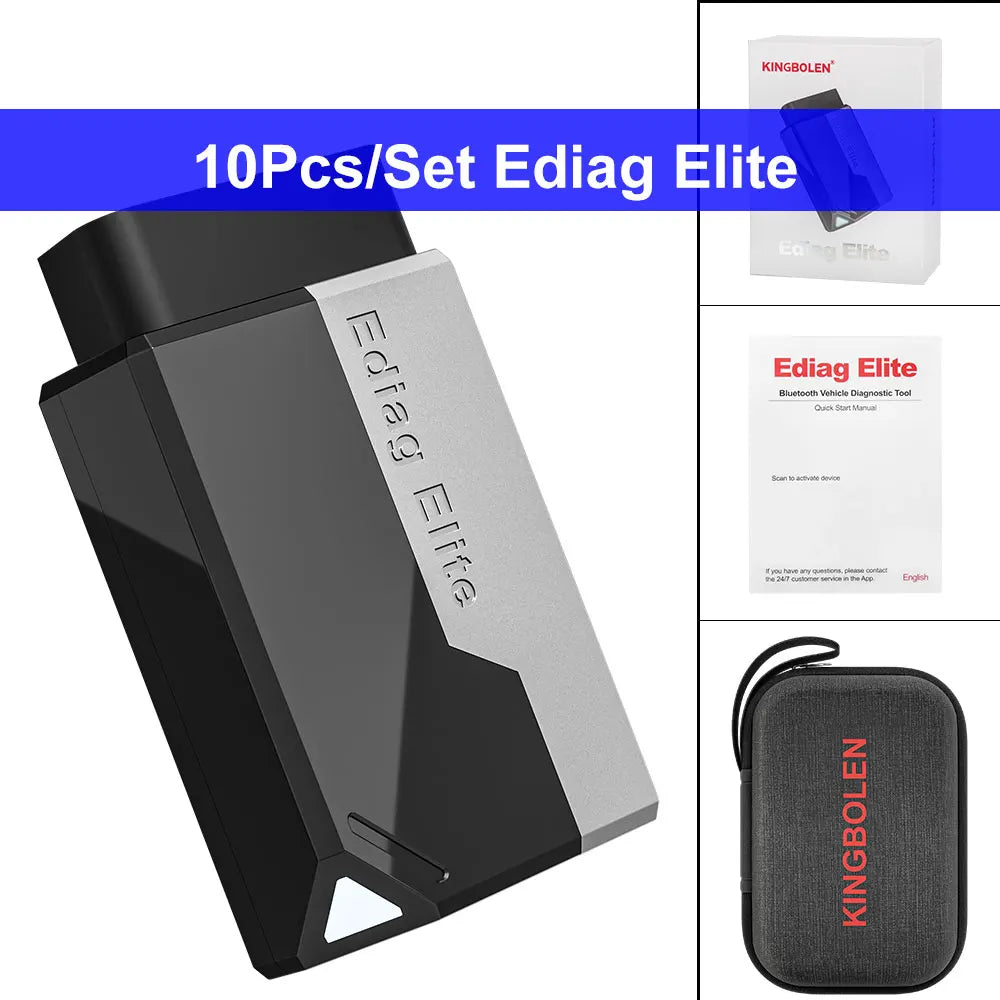

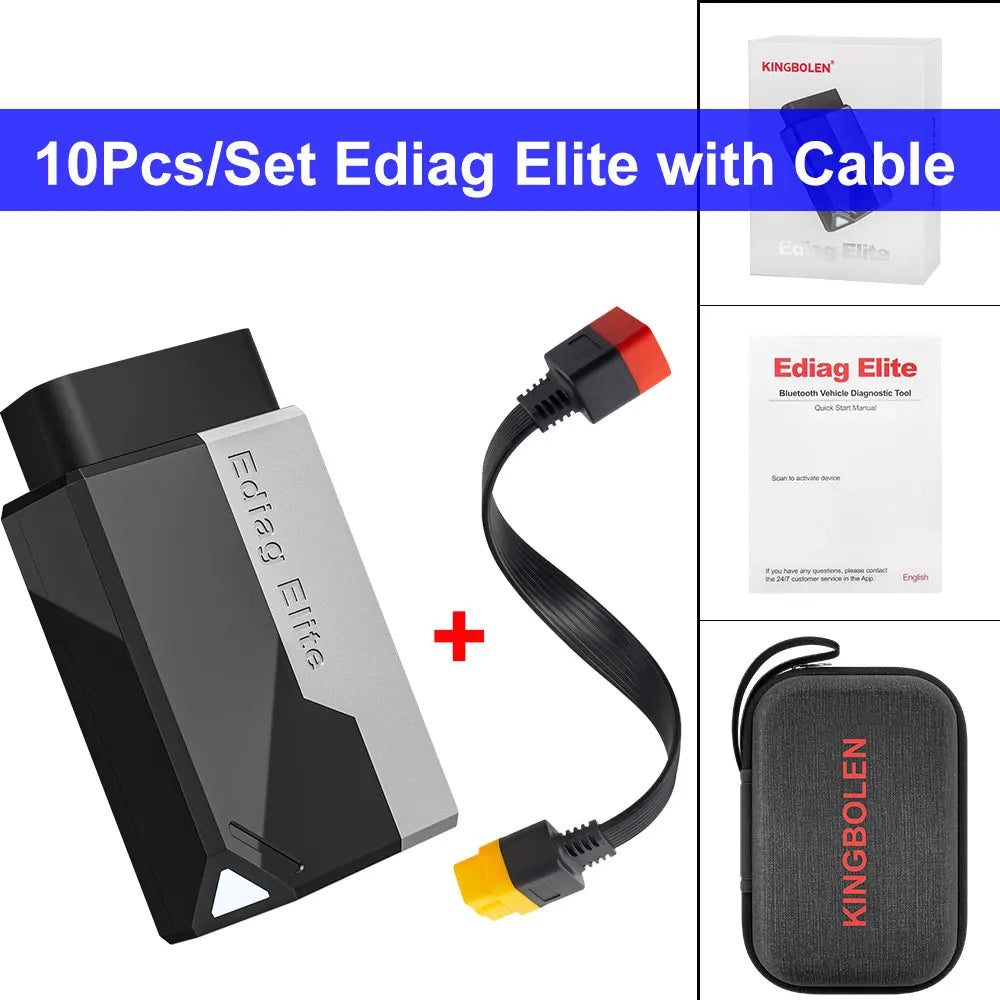

• Package of KINGBOLEN Ediag Elite
• 1pc * KINGBOLEN Ediag Elite OBDII Connector
• 1pc * KINGBOLEN Bag
• 1pc * Manual
• 1pc * Carton packaging
